Rondò plate 1-2M wood cherry - 17093.53

Pdf
Vimar - 17093.53 - Rondò plate 1-2M wood cherry
Vimar - 17093.53 - Rondò plate 1-2M wood cherry

17093.53
Wiring devices / Traditional wiring devices / IDEA / Cover plates

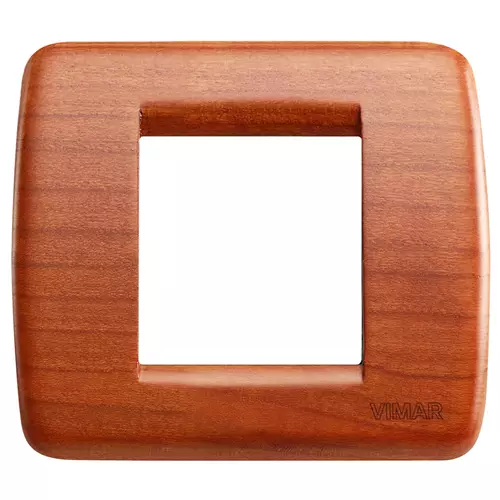

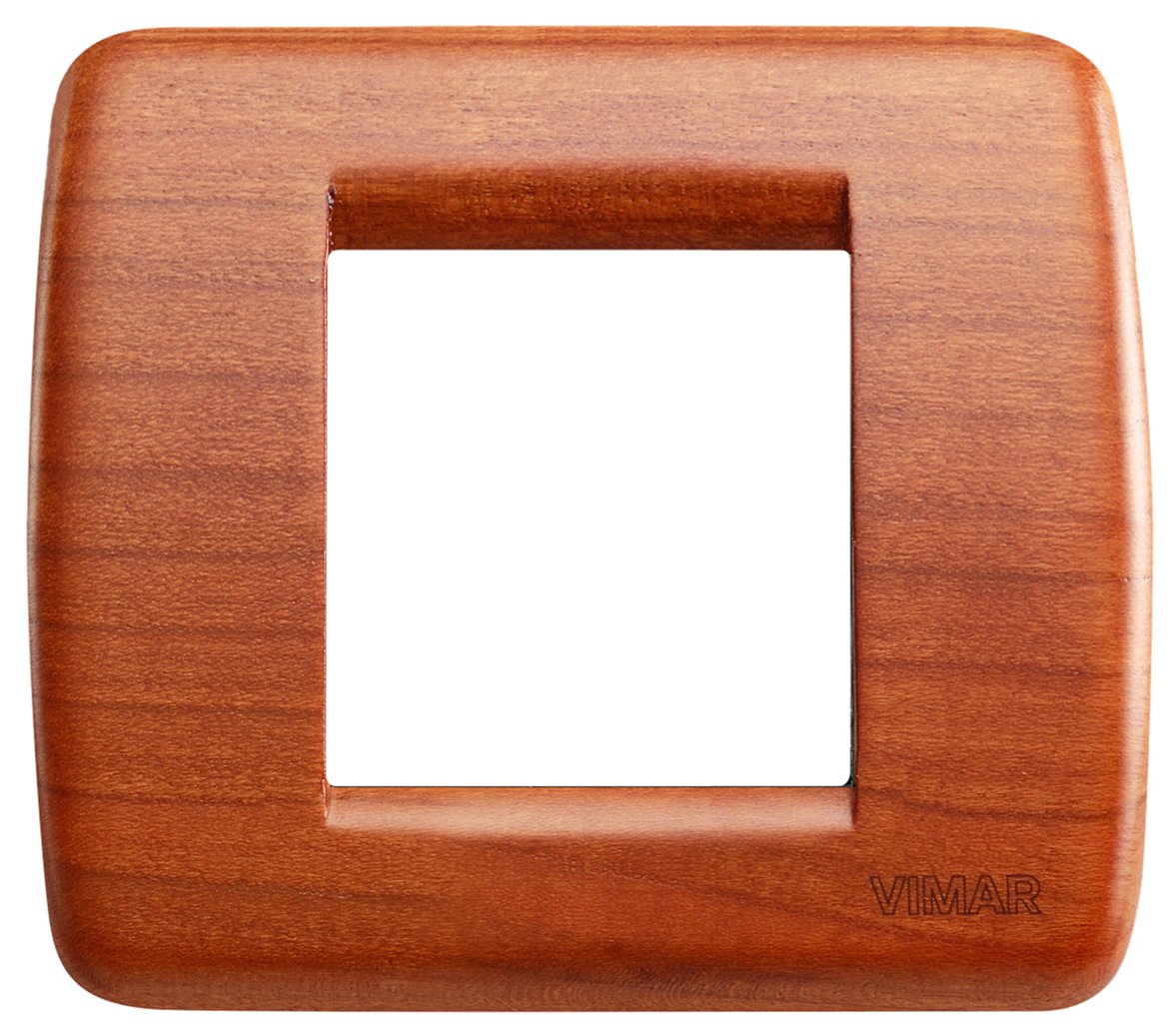

Rondò plate 1-2M wood cherry
1-module or 2-reduced-module Rondò cover plate, solid wood, cherrywood

Product Status
2 - Will be discontinued

You may also be interested in

17080
17080 - Frame 1M smooth front+claws grey
17080.B
17080.B - Frame 1M smooth front+claws white
17086
17086 - Frame 1M smooth no/screws ø60/56x56mm g
17086.B
17086.B - Frame 1M smooth no/screws ø60/56x56mm w
17082
17082 - Frame 2reducedM+claws for ø60mm
17087
17087 - Frame 2red.M no/screws ø60/56x56mm
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Wood
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Wood
RAL-number (similar)
8003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
91,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
91,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352104570
1 NR
8.5x9.1x1.1 [cm]
19.07 [g]
Barcode Qty 10 NR
8007352104587
10 NR
9.9x12.4x9.6 [cm]
243.47 [g]
