Frame 1M smooth no/screws ø60/56x56mm g - 17086

Pdf
Vimar - 17086 - Frame 1M smooth no/screws ø60/56x56mm g
Vimar - 17086 - Frame 1M smooth no/screws ø60/56x56mm g

17086
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

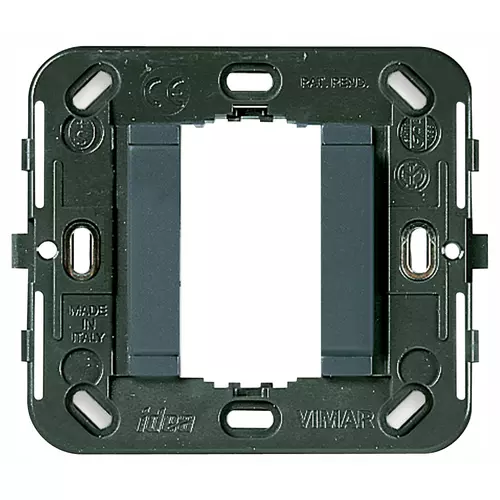

Frame 1M smooth no/screws ø60/56x56mm g
1-module mounting frame, smooth front, without screws, for 60 mm fixing centers, 56x56 mm flush or 09971 surface mounting boxes, grey

Product Status
3 - Active

Drawings

view encumbered art. 17086
PNG DXF
rear view art. 17086
PNG DXF
3D view art. 17086
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Back side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352096592
1 NR
8.5x7.5x1.5 [cm]
20.8 [g]
Barcode Qty 50 NR
8007352096608
50 NR
30.5x21.2x11.4 [cm]
1,199.27 [g]
