Frame 2M for panel mounting - 16772

16772
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

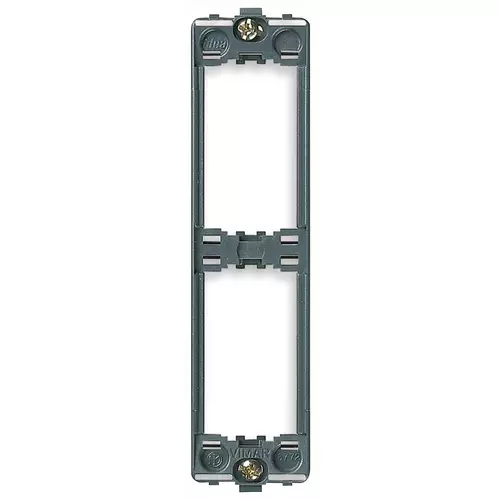

Frame 2M for panel mounting
2-module mounting frame, screws, for panel mounting, grey

Product Status
3 - Active

You may also be interested in

16776.AU - Flush mounting box for panel mounting

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

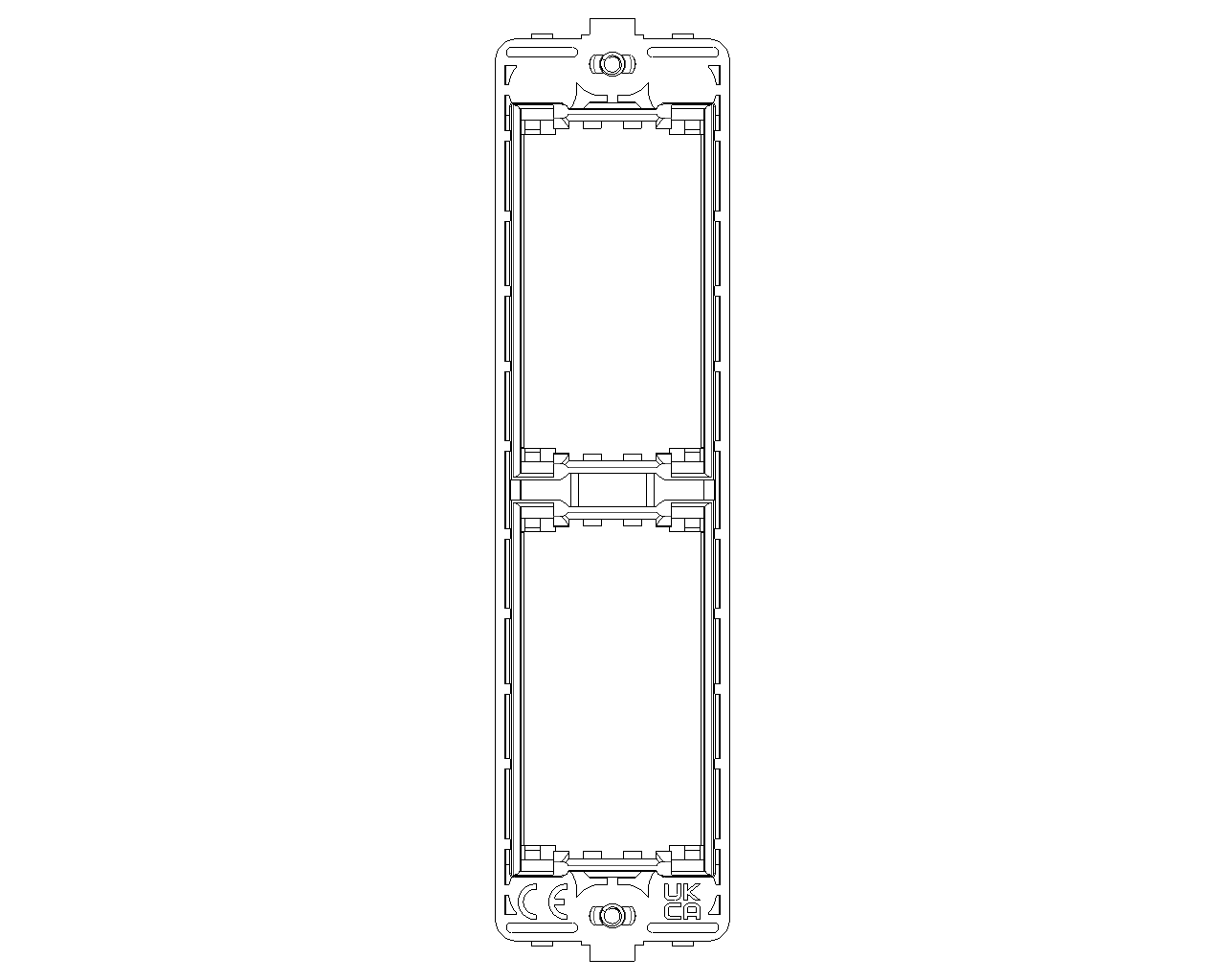

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352082489

1 NR

3.4x13.2x2.2 [cm]

13.47 [g]

8007352083974

10 NR

18.8x13.8x7 [cm]

191.8 [g]

8007352717640

100 NR

37.5x30x21 [cm]

1,918 [g]
