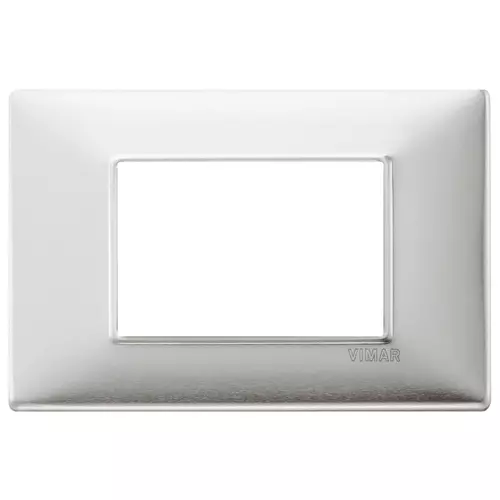

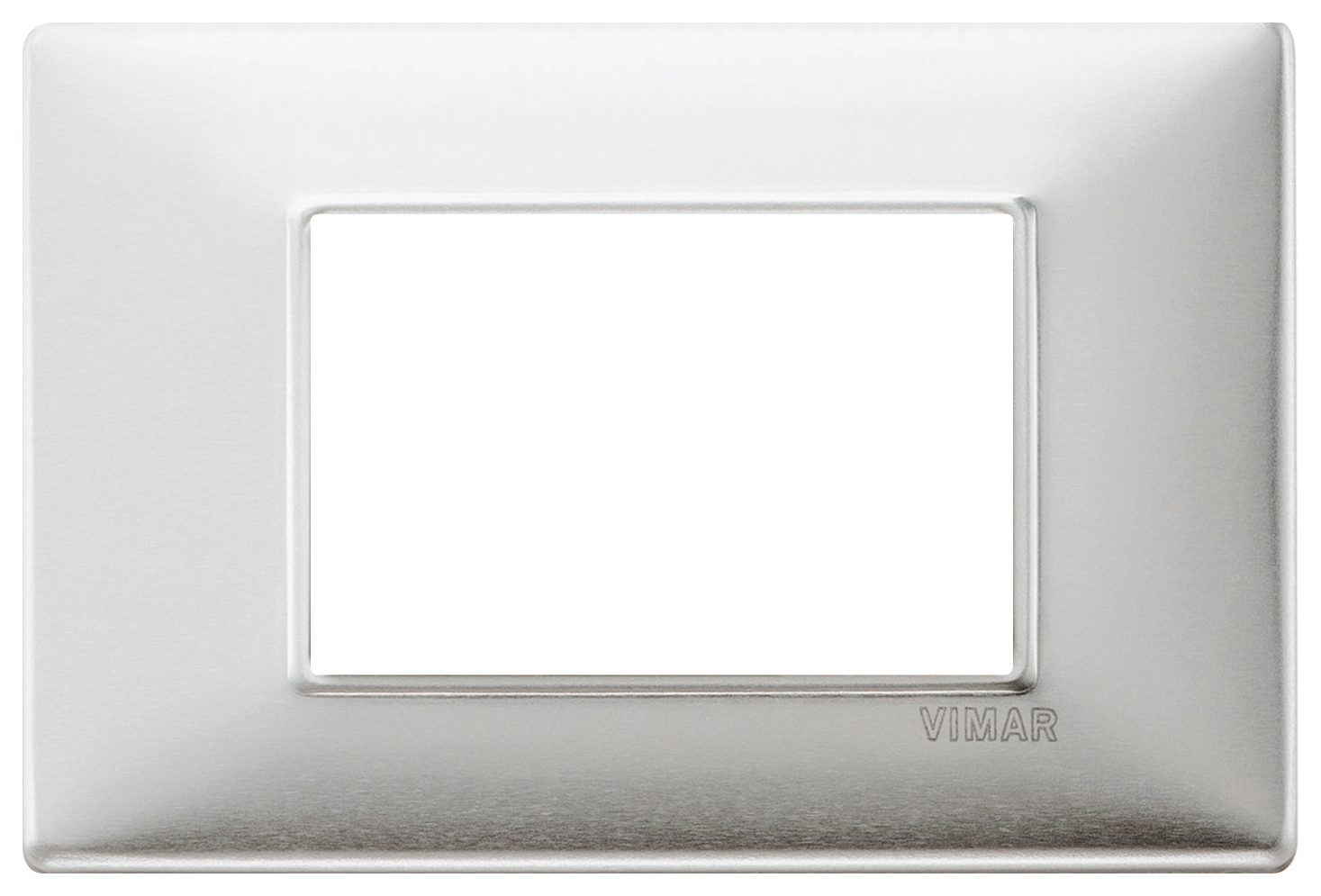

Foto gallery #1

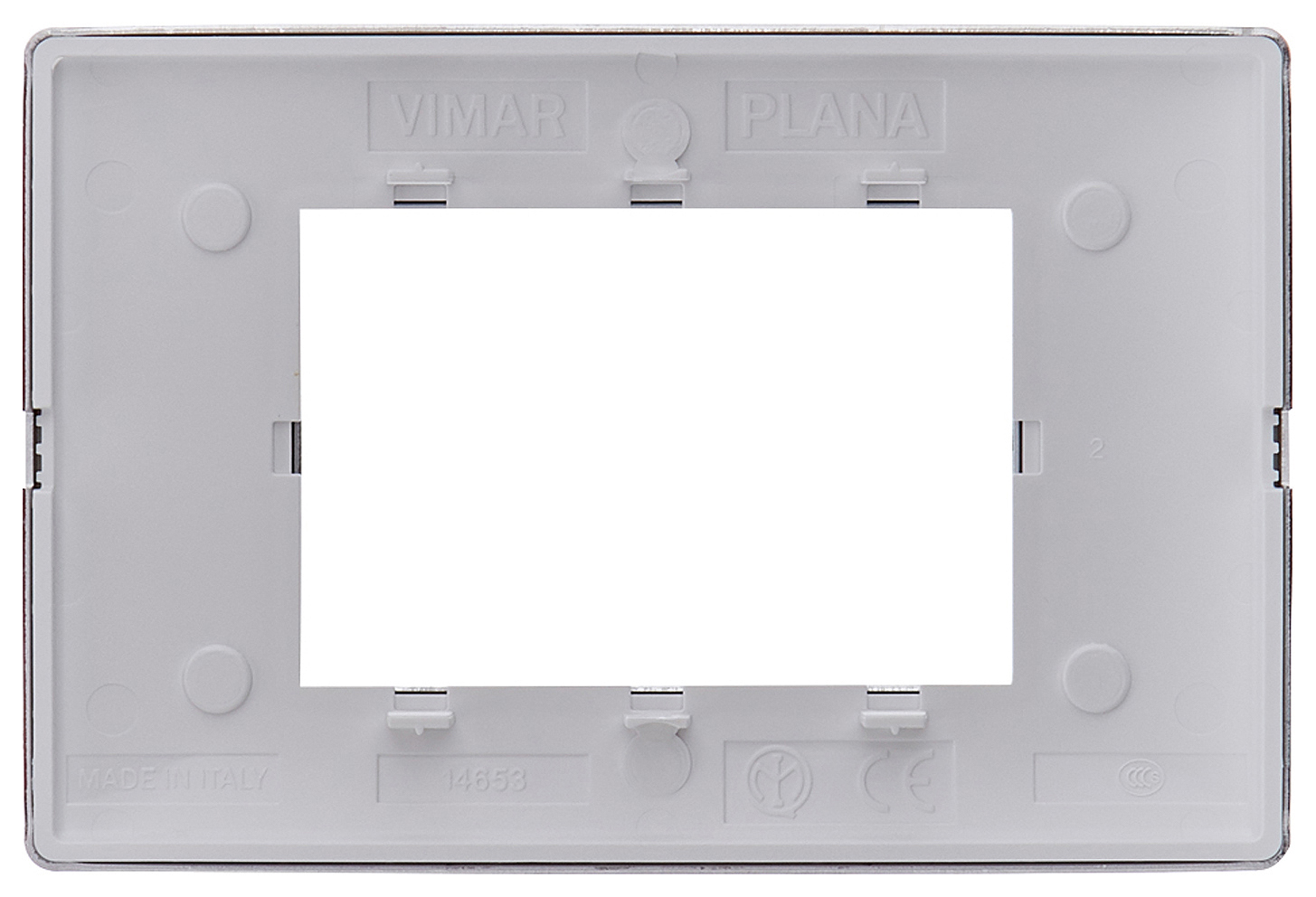

Foto gallery #2
Vimar - 14653.81 - Plate 3M brushed aluminium

14653.81
Wiring devices / Traditional wiring devices / PLANA / Cover plates

Plate 3M brushed aluminium
3-module cover plate, metal, brushed aluminium

  • Vimar patented Plack Clack® fixing system, which gives the lighting device added strength once the cover plate is installed
  • The aluminium variant combines the value and aesthetic styling of metal
  • Socket outlets and 1-way switches available both in the white version, for modern and minimal systems, and in Silver, for a more hi-tech look
  • Maximum flexibility towards foreign standards, thanks to multi-window cover plates, both with a distance between centres of 71mm (German std) and 57mm (French std), as well as the British standard

Product Status
3 - Active

You may also be interested in

14613
14613 - Frame 3M +screws

Drawings

view encumbered art. 14653.81
PNG DXF

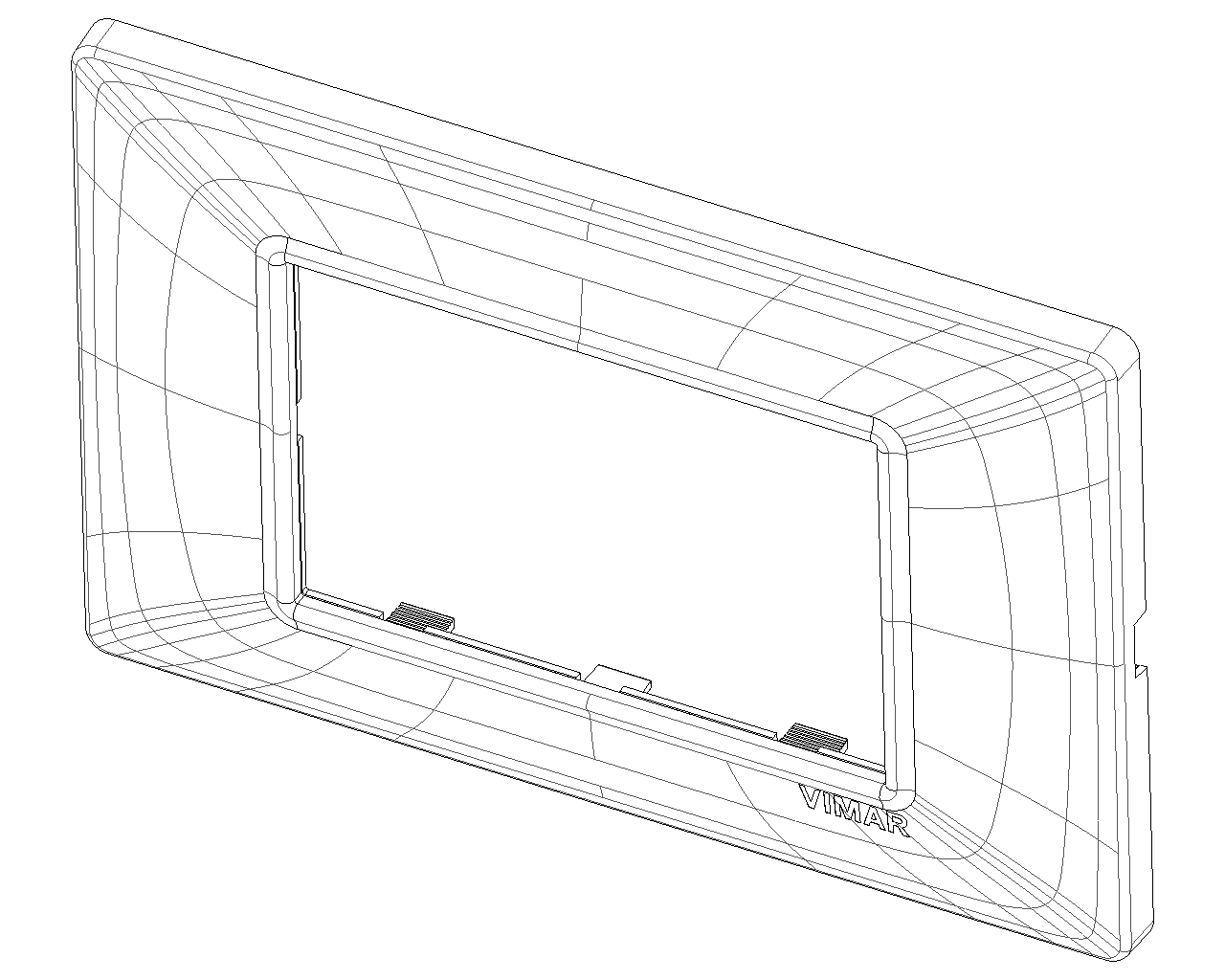

3D view art. 14653.81
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9006
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
120,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352267589
1 NR
12.7x9.3x1.6 [cm]
44 [g]
Barcode Qty 5 NR
8007352267596
5 NR
13.6x9.7x10 [cm]
270.2 [g]
Barcode Qty 80 NR
8007352470316
80 NR
39.5x29.5x23 [cm]
5,043.84 [g]
Barcode Qty 2,560 NR
8007352587922
2,560 NR
120x80x105 [cm]
168,402 [g]
