14653.70
Wiring devices / Traditional wiring devices / PLANA / Cover plates

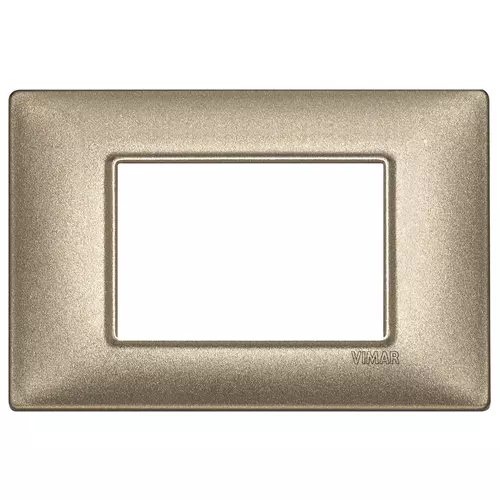

Plate 3M metal metallized bronze
3-module cover plate, metal, metallized bronze
Product Status
3 - Active
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
120,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 1 NR
Barcode
8007352322615
1 NR
12.7x9.3x1.6 [cm]
97.73 [g]
8007352322622
5 NR
13.6x9.7x10 [cm]
536.6 [g]
Question: |
Are the plaques of the Plana series only available in technopolymer? |
Answer: |
No, in addition to technopolymer, they are available in: Reflex polymer (obtained by co-moulding a coloured base and a transparent surface coating), natural wood (maple, pear and cherry) and metal. |
