Plate 5M BS Reflex amber - 14649.43

Pdf
Vimar - 14649.43 - Plate 5M BS Reflex amber
Vimar - 14649.43 - Plate 5M BS Reflex amber

14649.43
Wiring devices / Traditional wiring devices / PLANA / Cover plates

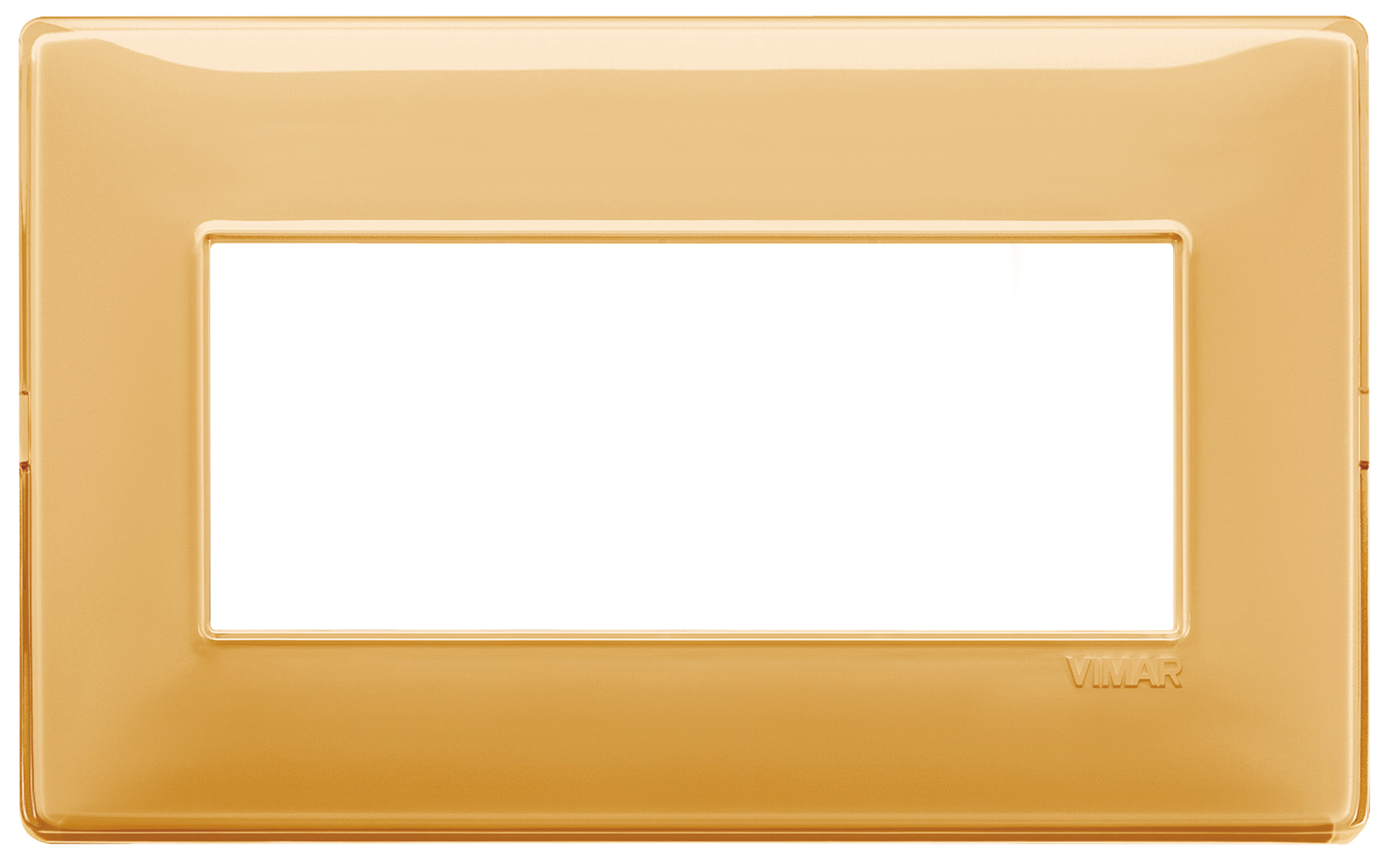

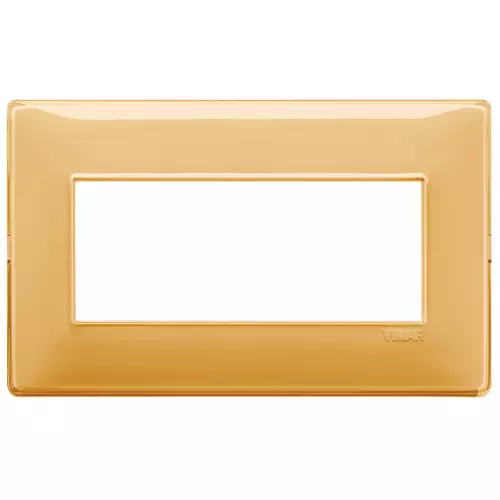

Plate 5M BS Reflex amber
5-module cover plate, British Standard, technopolymer, Reflex amber

Product Status
3 - Active

You may also be interested in

14609
14609 - Frame 5M BS

Drawings

view encumbered art. 14649.43
PNG DXF
rear view art. 14649.43
PNG DXF
3D view art. 14649.43
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of units horizontal
5
Number of units vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Yellow
RAL-number (similar)
1024
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155,00 mm
Height
95,00 mm
Depth
9,00 mm
Built-in width
155,00 mm
Built-in height
95,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352372313
1 NR
20.5x9.5x0.9 [cm]
38.5 [g]
Barcode Qty 10 NR
8007352376762
10 NR
17.7x9.8x10.3 [cm]
441.6 [g]
