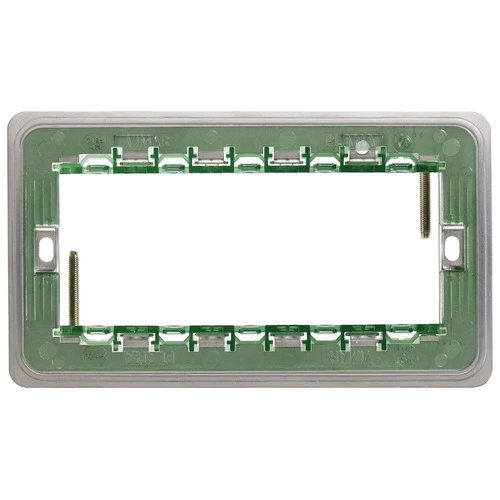

Frame 5M BS
5-module mounting frame, with screws, for British standard mounting boxes

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
5

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

15. CCC - China

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352383517

1 NR

14.4x8.25x1.66 [cm]

76.53 [g]

8007352383524

10 NR

19x14.3x9.5 [cm]

765.3 [g]

8007352645011

50 NR

30.5x26x22 [cm]

4,165 [g]
