By-alarm Plus DT flush detect.white - 14479

14479
Safety / By-alarm Plus / PLANA / Devices

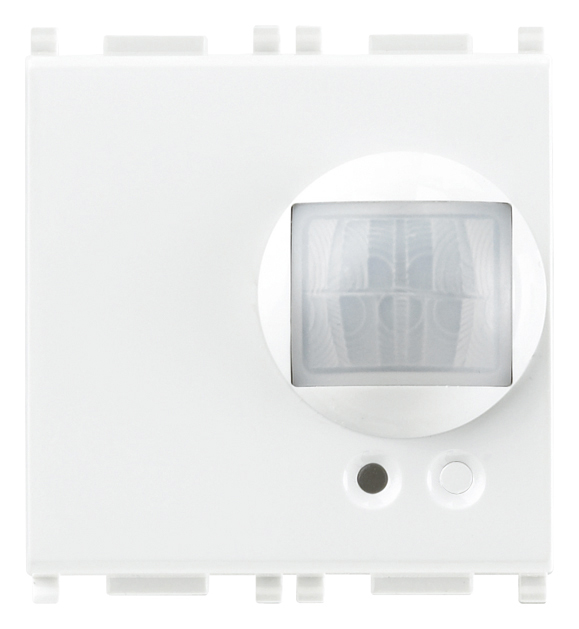

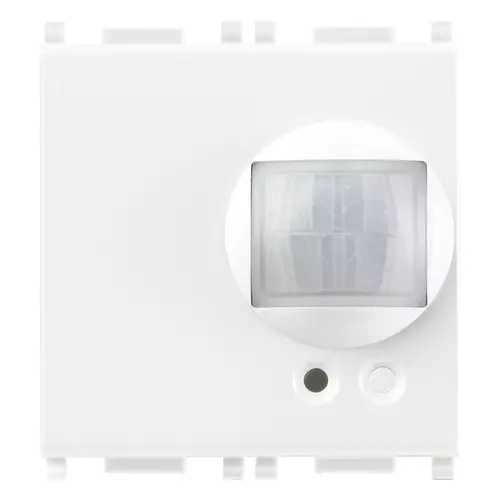

By-alarm Plus DT flush detect.white
By-alarm Plus passive infrared and microwave dual technology detector, anti-masking function, SET input to disable microwaves when system not on, indoor installation, white - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (610 kb)
• Full Multilanguage instructions sheet (1194 kb)
• Feuille d’instructions (1008 kb)
• Anwendungshinweise (1010 kb)

---

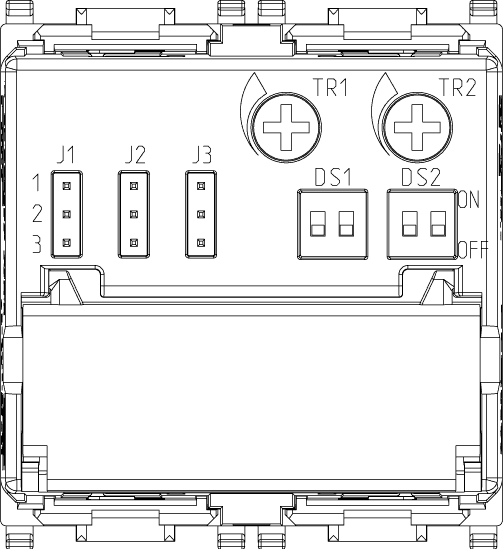

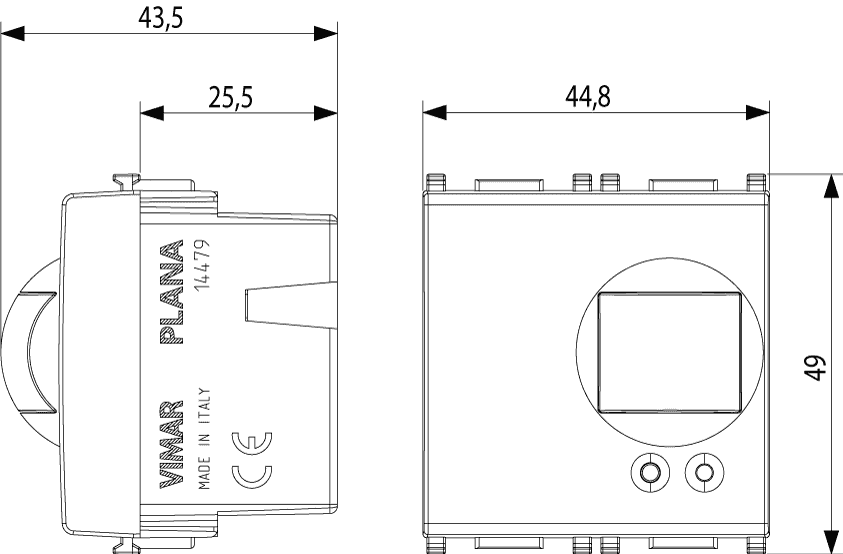

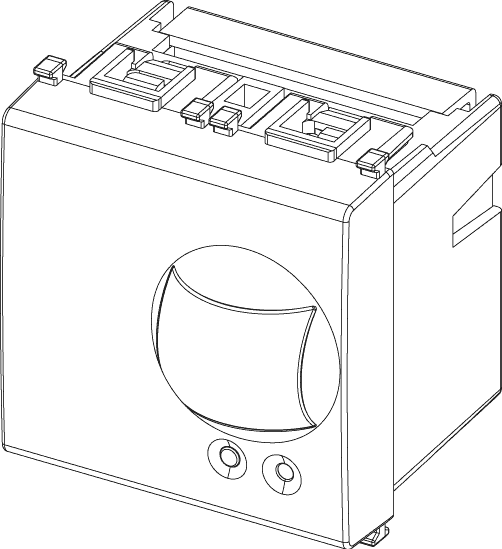

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Type of messaging
Infrared/microwave (Dual)

Mounting method
Built-in

Operating current
28,00 mA

Operating voltage
12,00 - 12,01 V

Height
49,00 mm

Width
44,80 mm

Depth
43,50 mm

Characteristic
Other

Cover monitoring
Yes

Radio system
No

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352548213

1 NR

11.2x9.6x9.8 [cm]

113.8 [g]

8007352648173

18 NR

37.5x30x21 [cm]

2,492 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
