14196
Wiring devices / Traditional wiring devices / PLANA / Devices

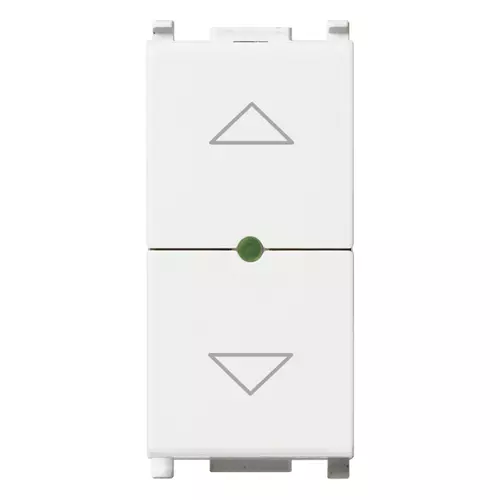

Quid - Rolling shutters 2-way switch whi
Quid electronic switch for centralised operation of roller shutter with slat orientation with relay outputs for cosφ 0.6 motor 2 A 220-240 V~ 50/60 Hz, position saving, white
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation

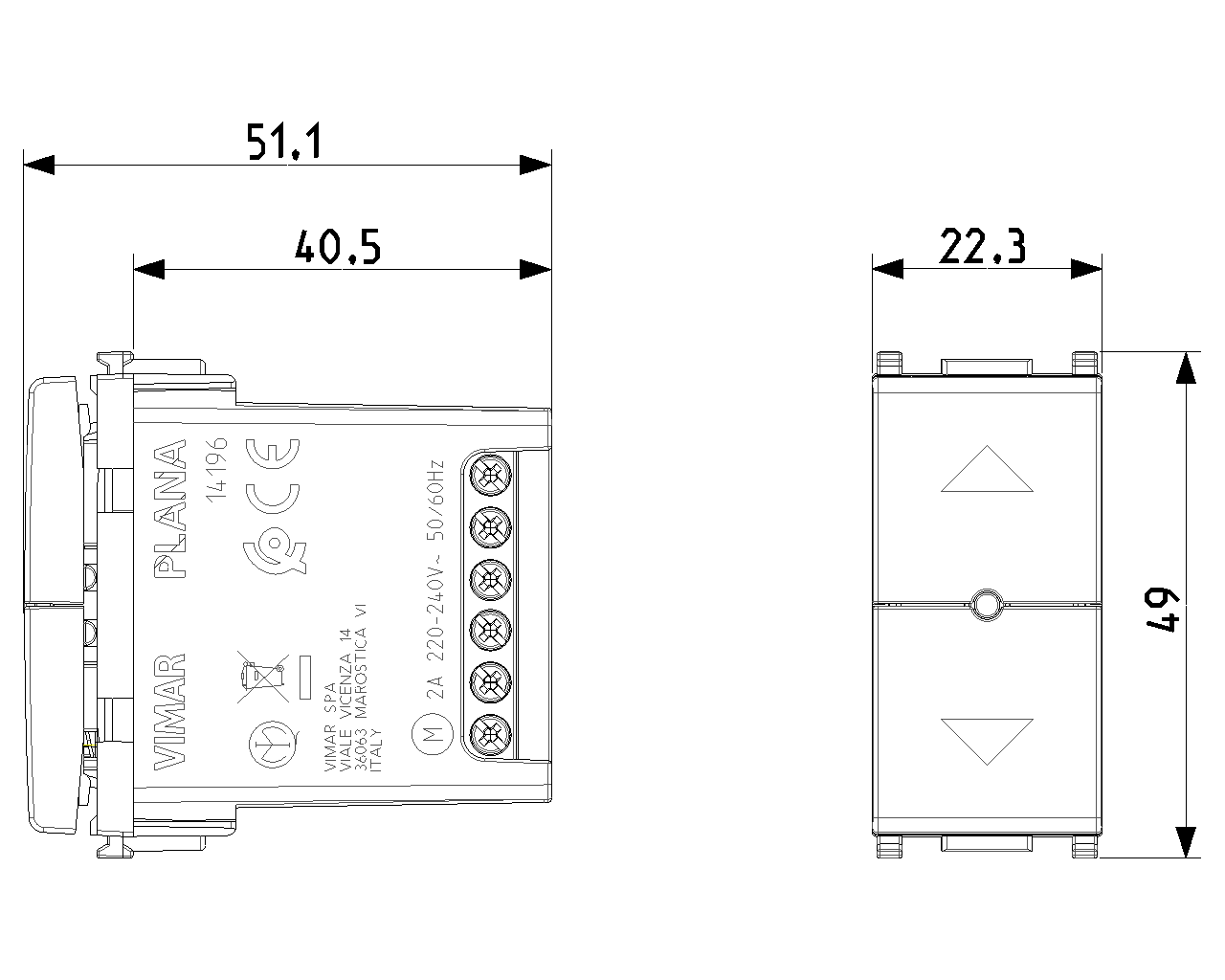

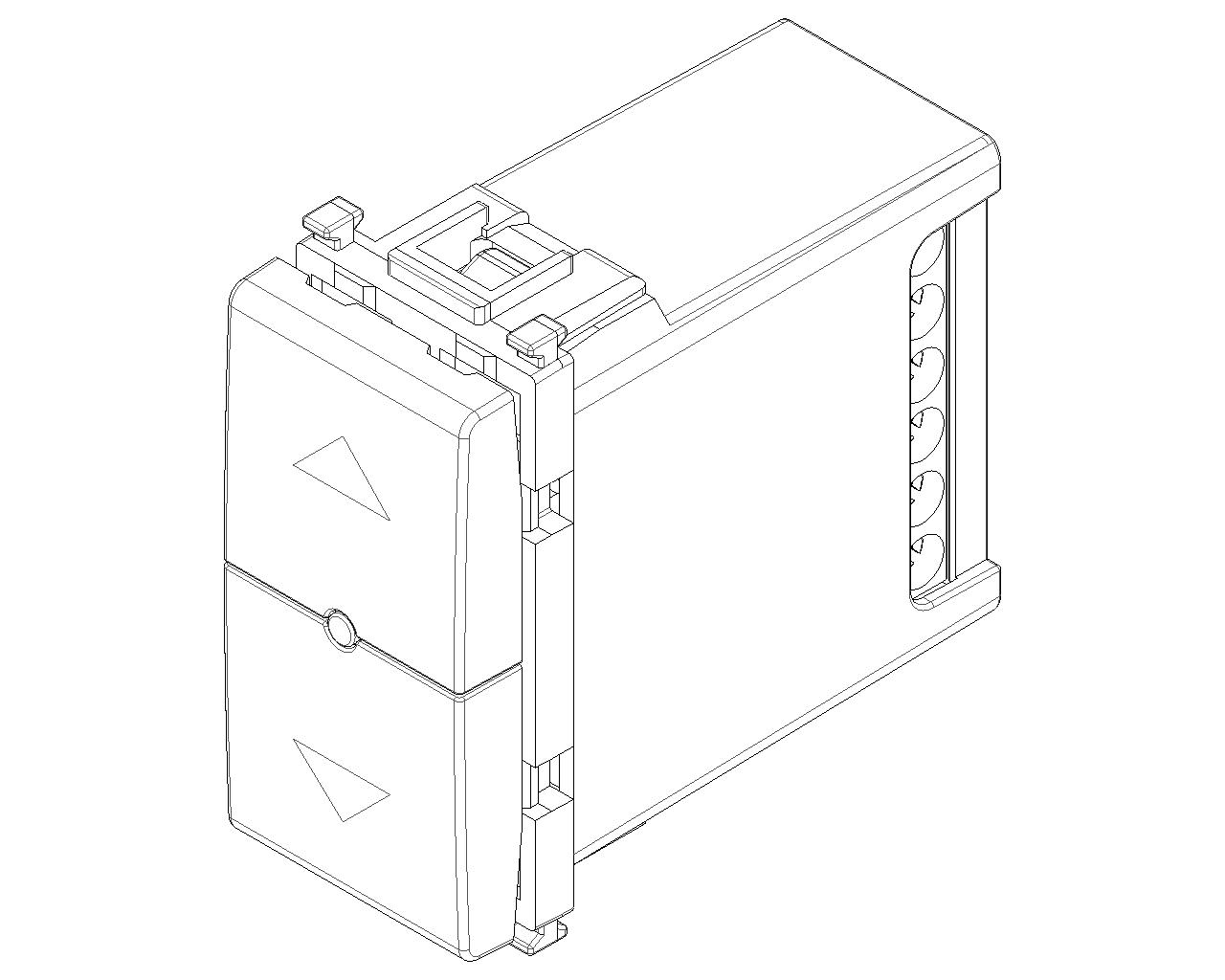

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Push button
Push button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Model
Group push button
Group push button
Method of operation
Push button
Push button
Number of rockers
1
1
Number of modules (module system)
100
100
Number of poles
2
2
Rated current
5,00 A
5,00 A
With lighting
Yes
Yes
Feedback-signal contact
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
White
White
RAL-number (similar)
9003
9003
Transparent
No
No
Label space/information surface
Yes
Yes
Device height
49,00 mm
49,00 mm
Device depth
51,10 mm
51,10 mm
Minimum order quantity: 10 NR
Barcode
8007352623033
1 NR
5.1x4.3x5.3 [cm]
53.8 [g]
8007352623040
10 NR
26.9x11.6x4.9 [cm]
604.6 [g]
8007352623682
200 NR
47.5x27x29 [cm]
12,550 [g]
