By-alarm Plus kit - 25-zone flush-mount - 0K03800.01

0K03800.01
Safety / By-alarm Plus / Surface mounting components / Non-modular components

By-alarm Plus kit - 25-zone flush-mount

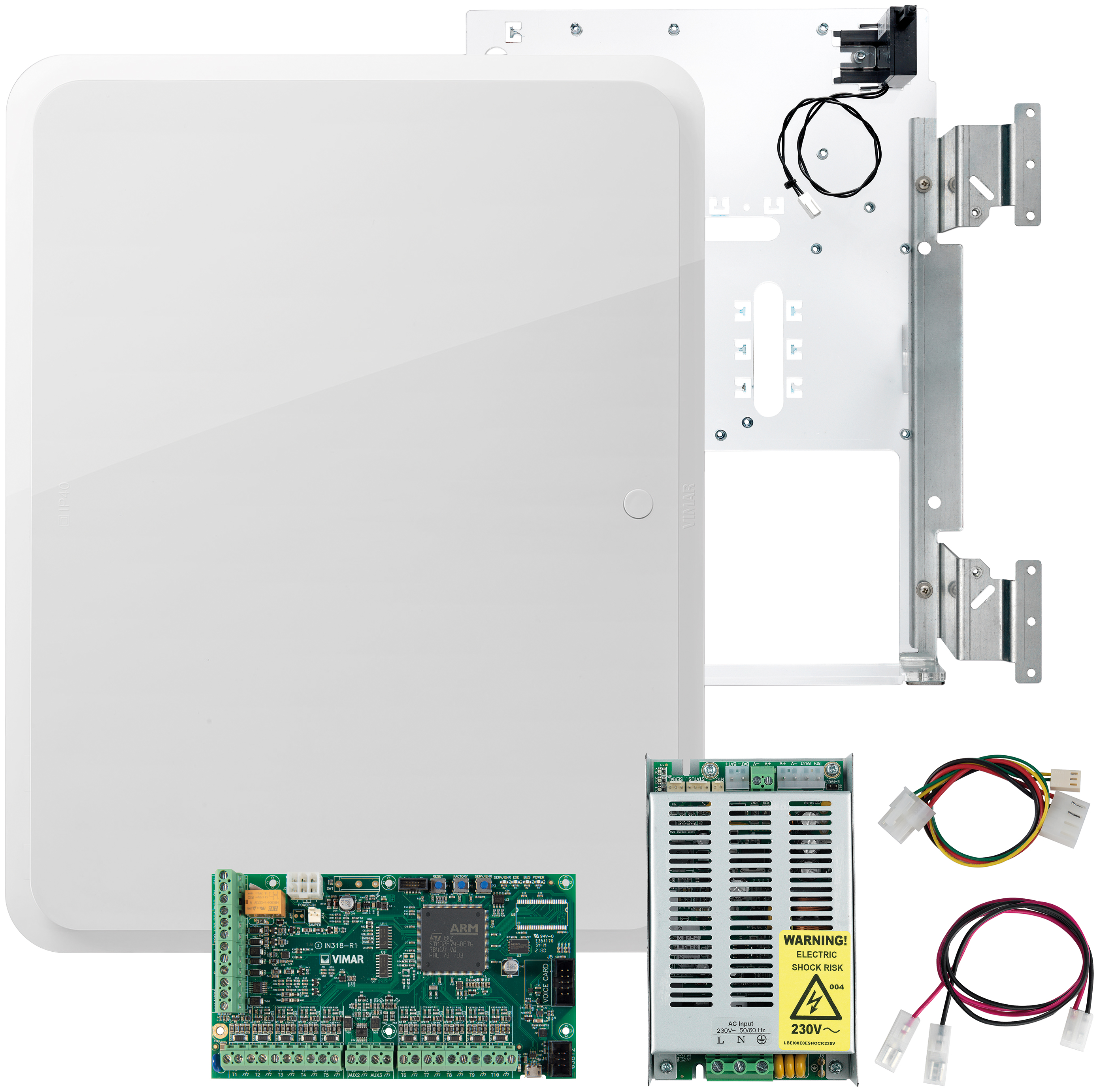

By-alarm Plus 25-zone control unit kit, flush mounting, containing: one 25-zone control unit board 03800, 1 230 V 13 VDC 3.2 A power supply unit 03805, one 24-module flush mounting switchboard adaptor 03816

Product Status
3 - Active

Kit components

03800 - By-alarm Plus 25 zones circuit board

03805 - By-alarm Plus power unit 230V13Vdc3,2A

03816 - By-alarm Plus 24M switch box adaptor

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Feuille d’instructions (196 kb)
• Anwendungshinweise (197 kb)
• Manuel d’installation (1682 kb)
• Installation Manual (1669 kb)
• Installationsanleitung (1684 kb)
• Manuale installazione (1681 kb)
• Multilanguage user manual (5054 kb)
• Manuel de l'utilisateur (2821 kb)
• Bedienungsanleitung (2823 kb)

Product Software

• FW_Dispositivi_By-alarmPlus_REL-01.03.000_20240115.zip
• SW_By-alarmPlus_Manager_REL-01.03.000_20240115.zip

Class group
Alarm installations, emergency call and signalling

Class
Central alarm panel for intrusion detection system

Suitable for bus connection
Yes

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352708761

1 NR

49x34x22.5 [cm]

3,130 [g]
