Vimar - 09062 - Two interlocked 1P NO+NO 10A pushes w
Vimar - 09062 - Two interlocked 1P NO+NO 10A pushes w

09062
Wiring devices / Traditional wiring devices / NEVE UP / Devices

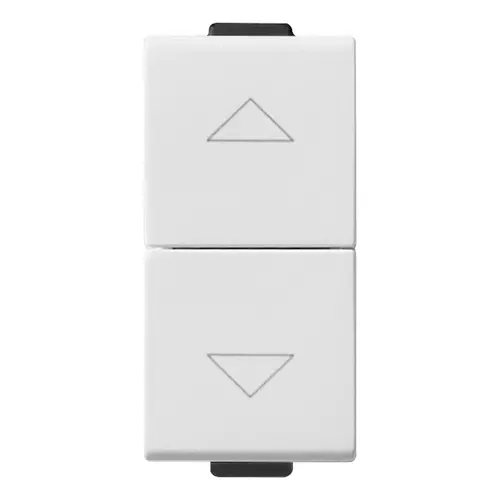

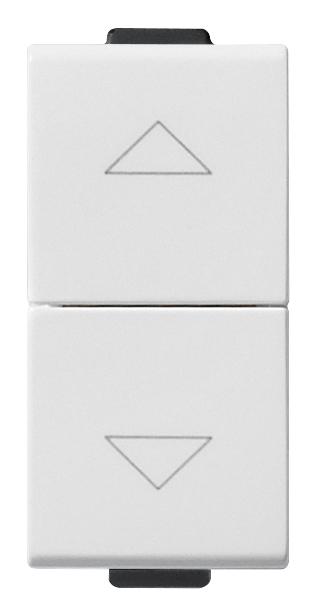

Two interlocked 1P NO+NO 10A pushes w
Two 1P NO + 1P NO 10 A 250 V~ interlocked push buttons, with directional arrows, white

Product Status
3 - Active

You may also be interested in

09060
09060 - 2P 10AX switch white

Drawings

view encumbered art. 09062
PNG DXF
rear view art. 09062
PNG DXF
3D view art. 09062
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
47,00 mm
Device depth
43,00 mm

00. CE Marking - EU

07. INGCER - Chile

13. SNI-MGI - Indonesia

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352416741
1 NR
4.1x2.8x5.3 [cm]
31.8 [g]
Barcode Qty 20 NR
8007352416758
20 NR
21.4x11.6x6 [cm]
691.2 [g]
Barcode Qty 200 NR
8007352665781
200 NR
30.5x25.5x22.5 [cm]
7,255 [g]
