2P 10AX switch white - 09060

Pdf
Vimar - 09060 - 2P 10AX switch white
Vimar - 09060 - 2P 10AX switch white

09060
Wiring devices / Traditional wiring devices / NEVE UP / Devices

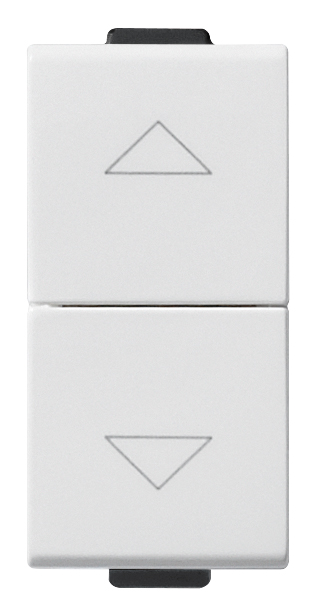

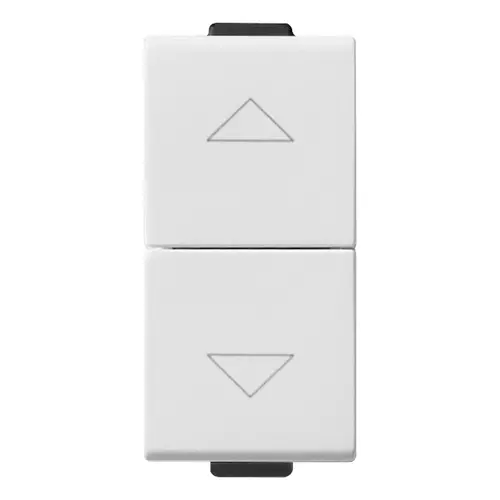

2P 10AX switch white
2-button 2P 10 AX 250 V~ 2-way switch (6 terminals) with directional arrows and central OFF position, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

09062
09062 - Two interlocked 1P NO+NO 10A pushes w

Drawings

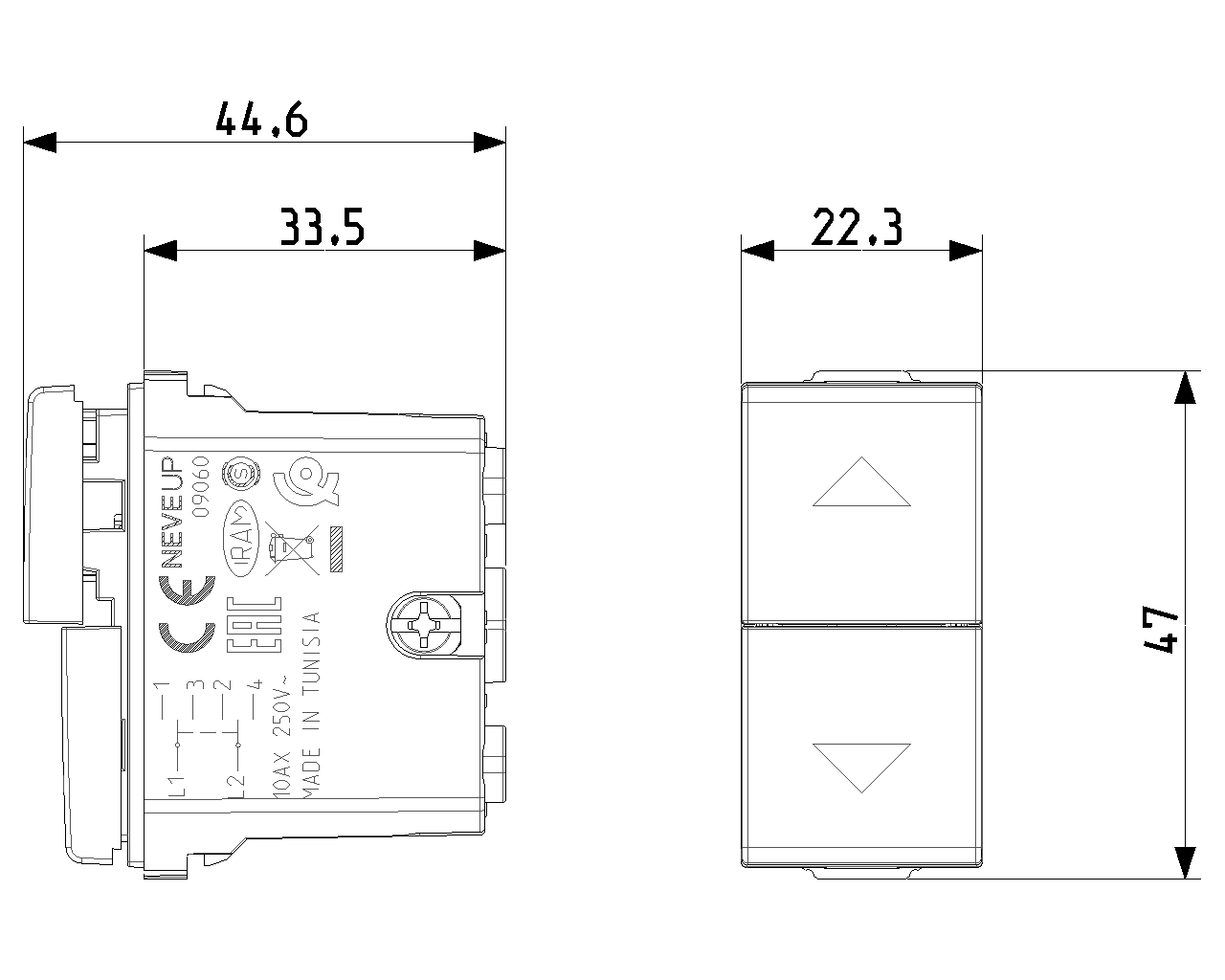

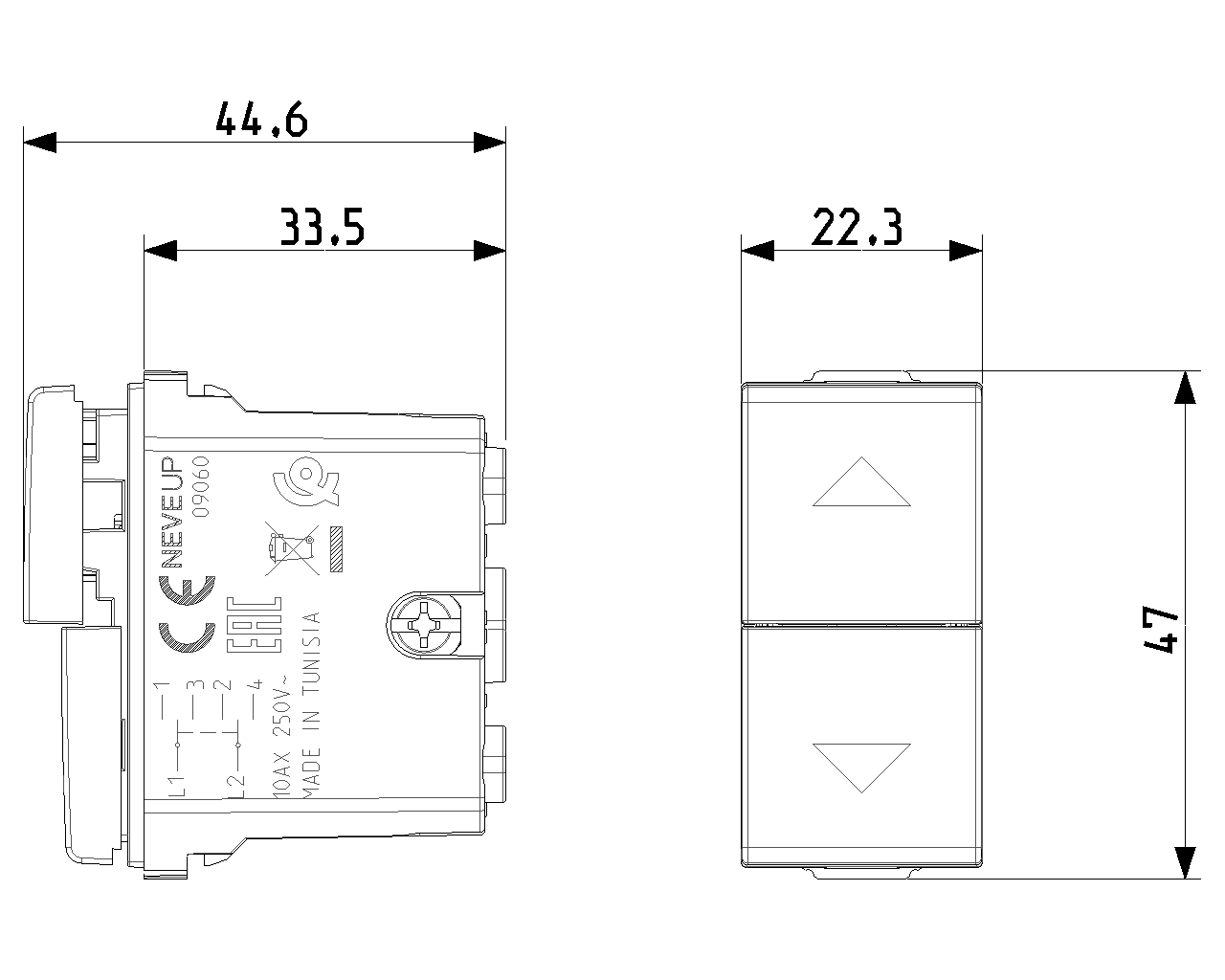

view encumbered art. 09060
PNG DXF

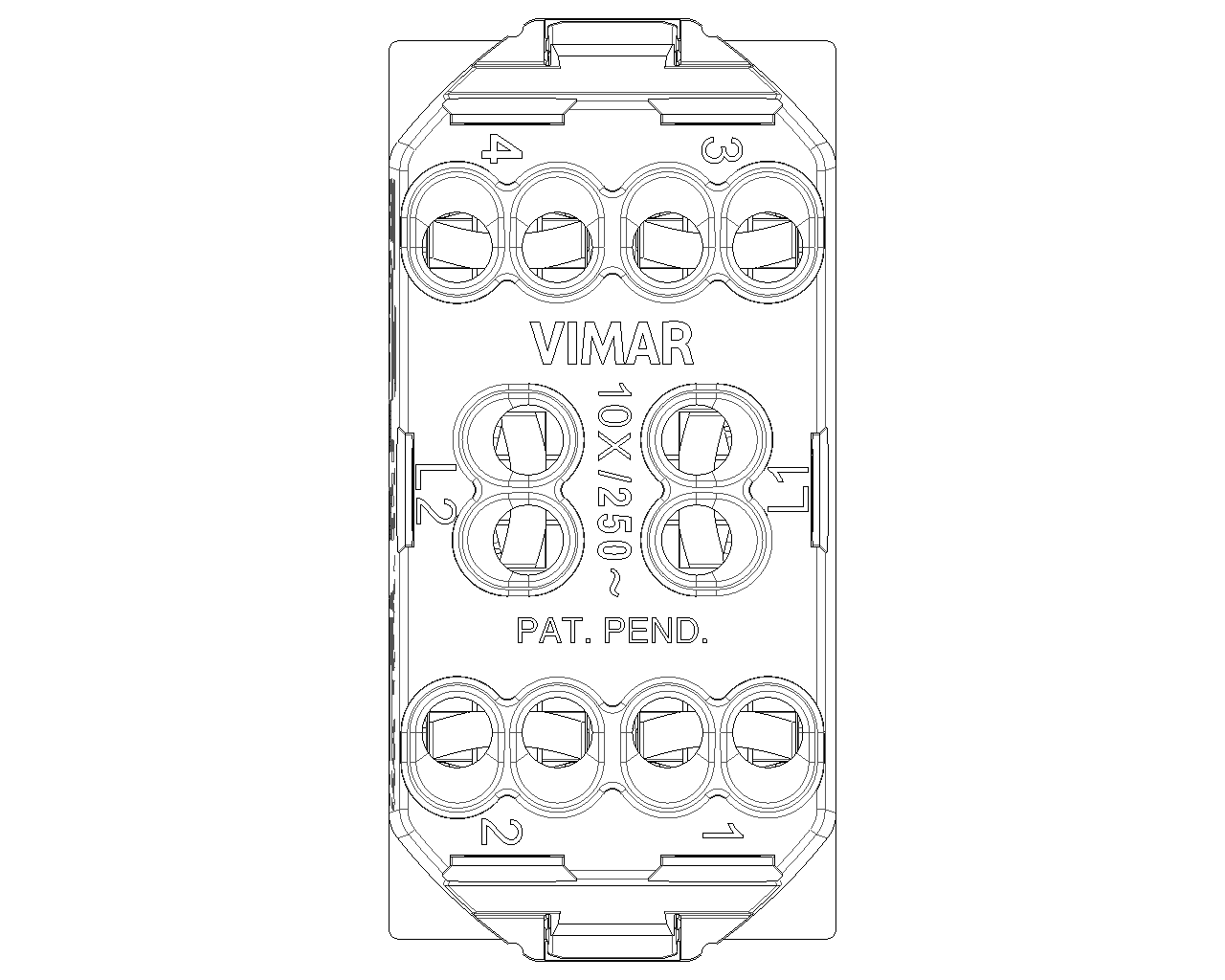

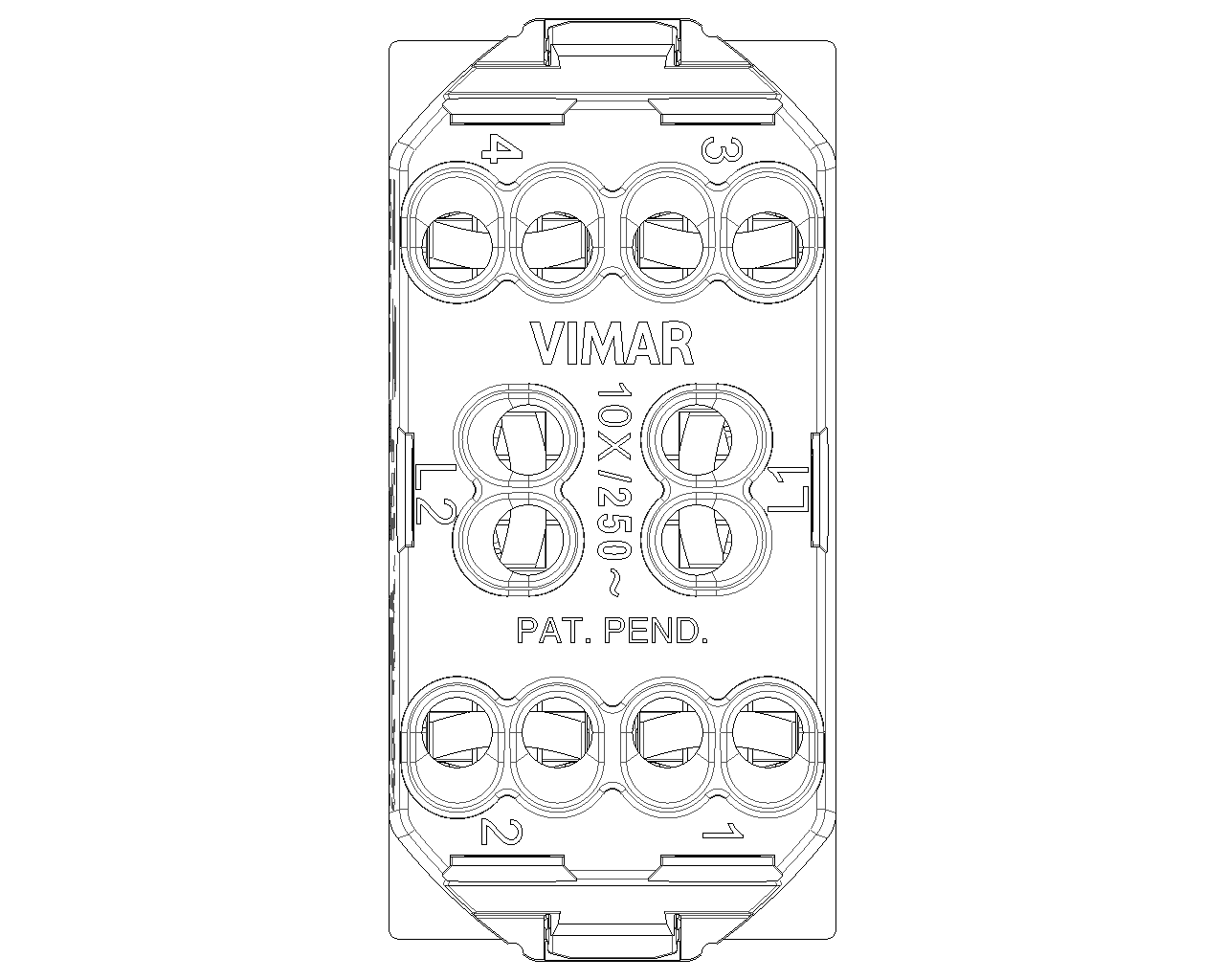

rear view art. 09060
PNG DXF

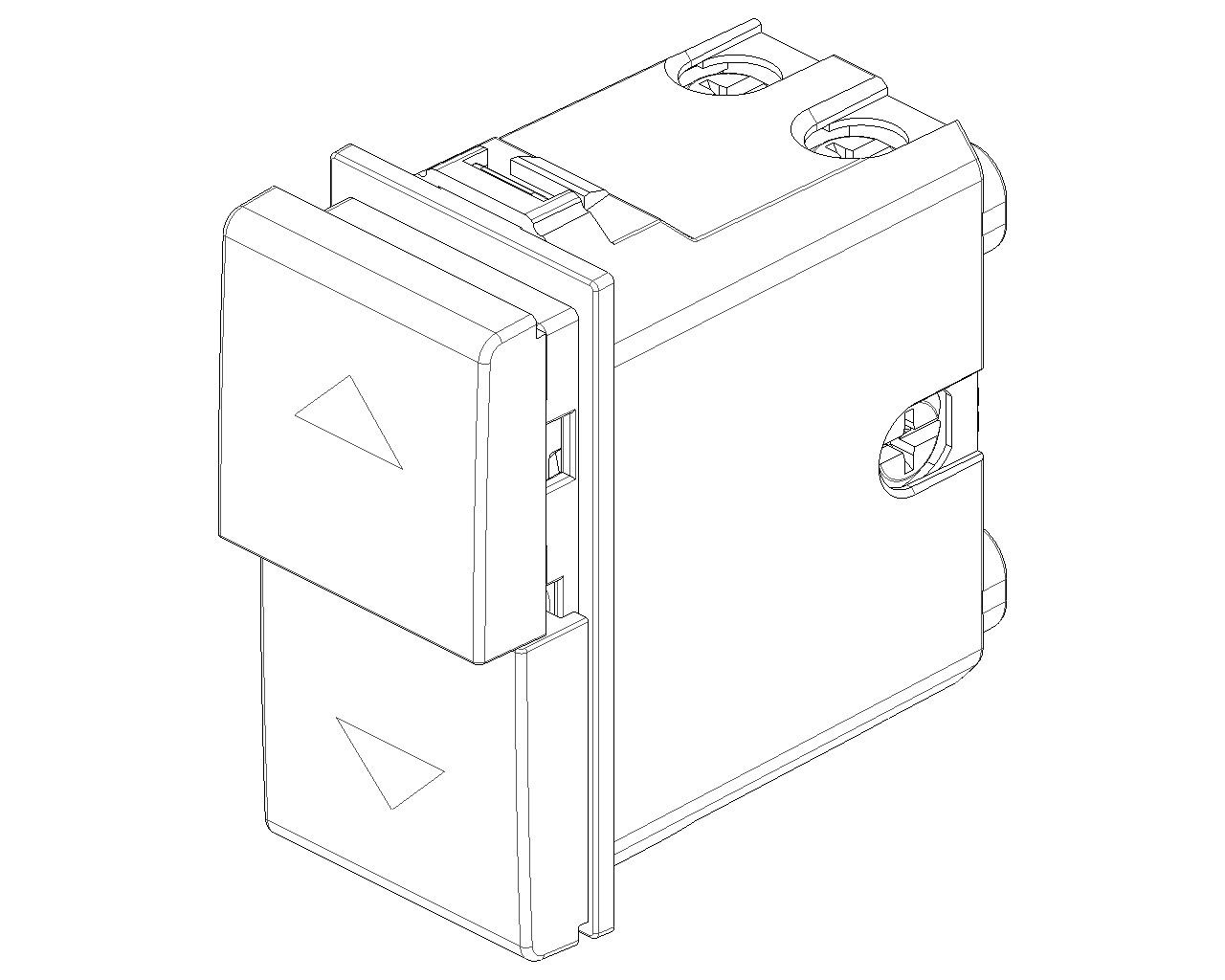

3D view art. 09060
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Other
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
47,00 mm
Device depth
43,00 mm

00. CE Marking - EU

07. INGCER - Chile

13. SNI-MGI - Indonesia

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352305090
1 NR
5.1x2.8x5.3 [cm]
41.8 [g]
Barcode Qty 10 NR
8007352305106
10 NR
14.4x11.6x6 [cm]
461.33 [g]
Barcode Qty 120 NR
8007352305113
120 NR
37.5x30x13.5 [cm]
5,942 [g]
