By-alarm Plus RF surf.IR detector - 03836

03836
Safety / By-alarm Plus / Surface mounting components / Non-modular components

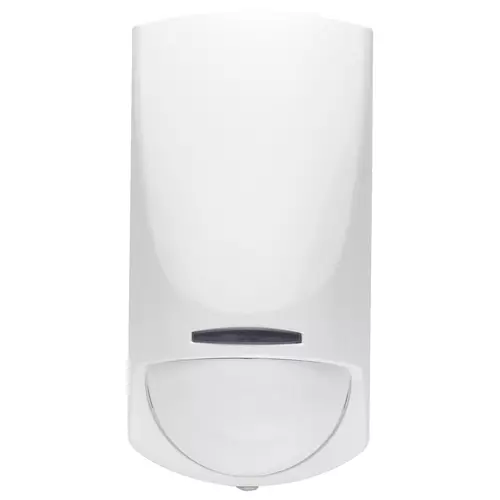

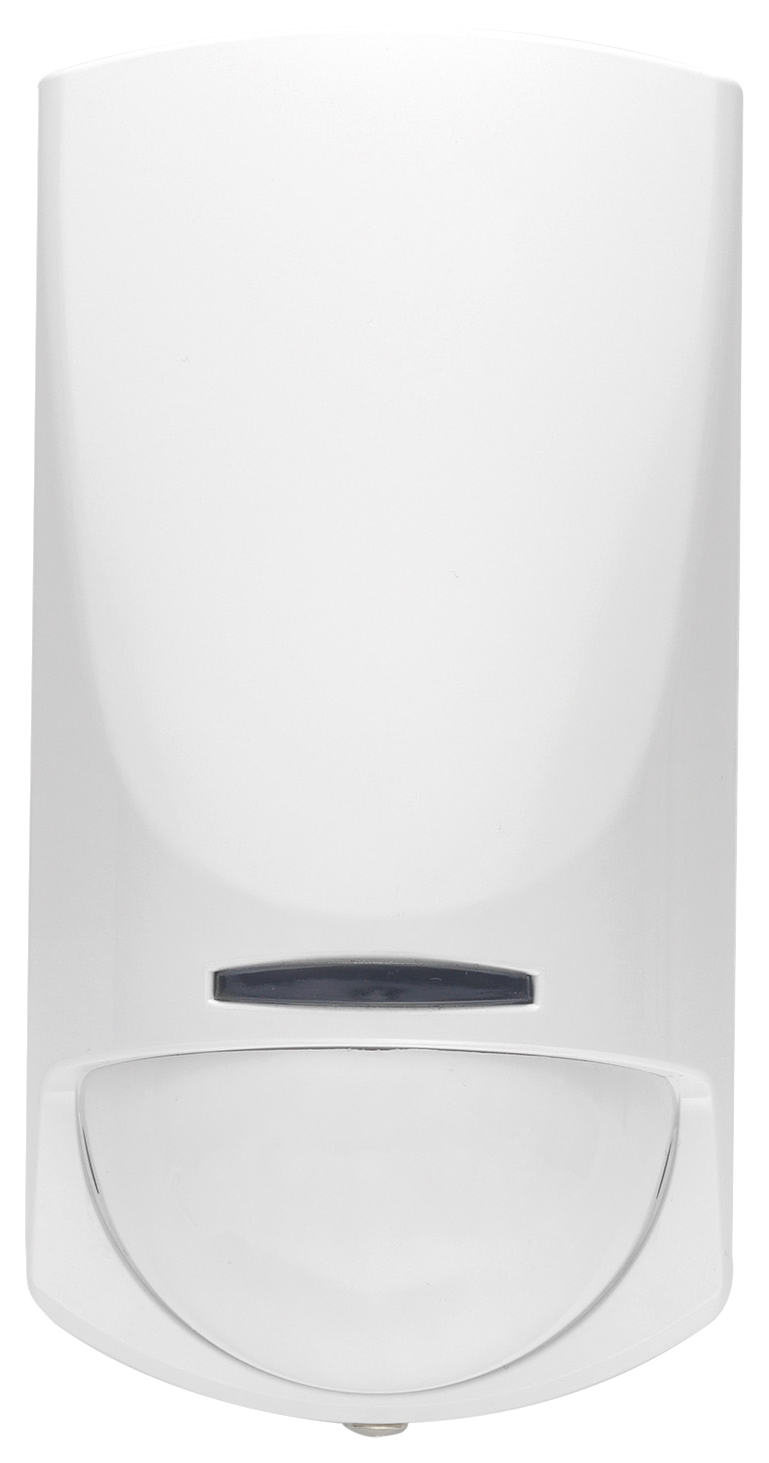

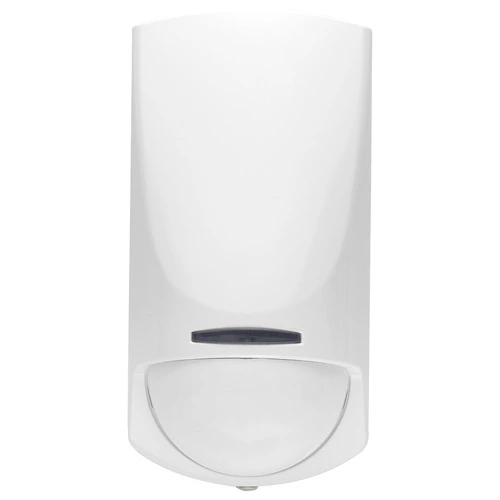

By-alarm Plus RF surf.IR detector
By-alarm Plus passive infrared detector, 868 MHz radio frequency connection, PET immune, surface mounting, power supply with CR17450 3V lithium battery (included), surface mounting, for indoor use, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (969 kb)
• Feuille d’instructions (480 kb)
• Anwendungshinweise (480 kb)

---

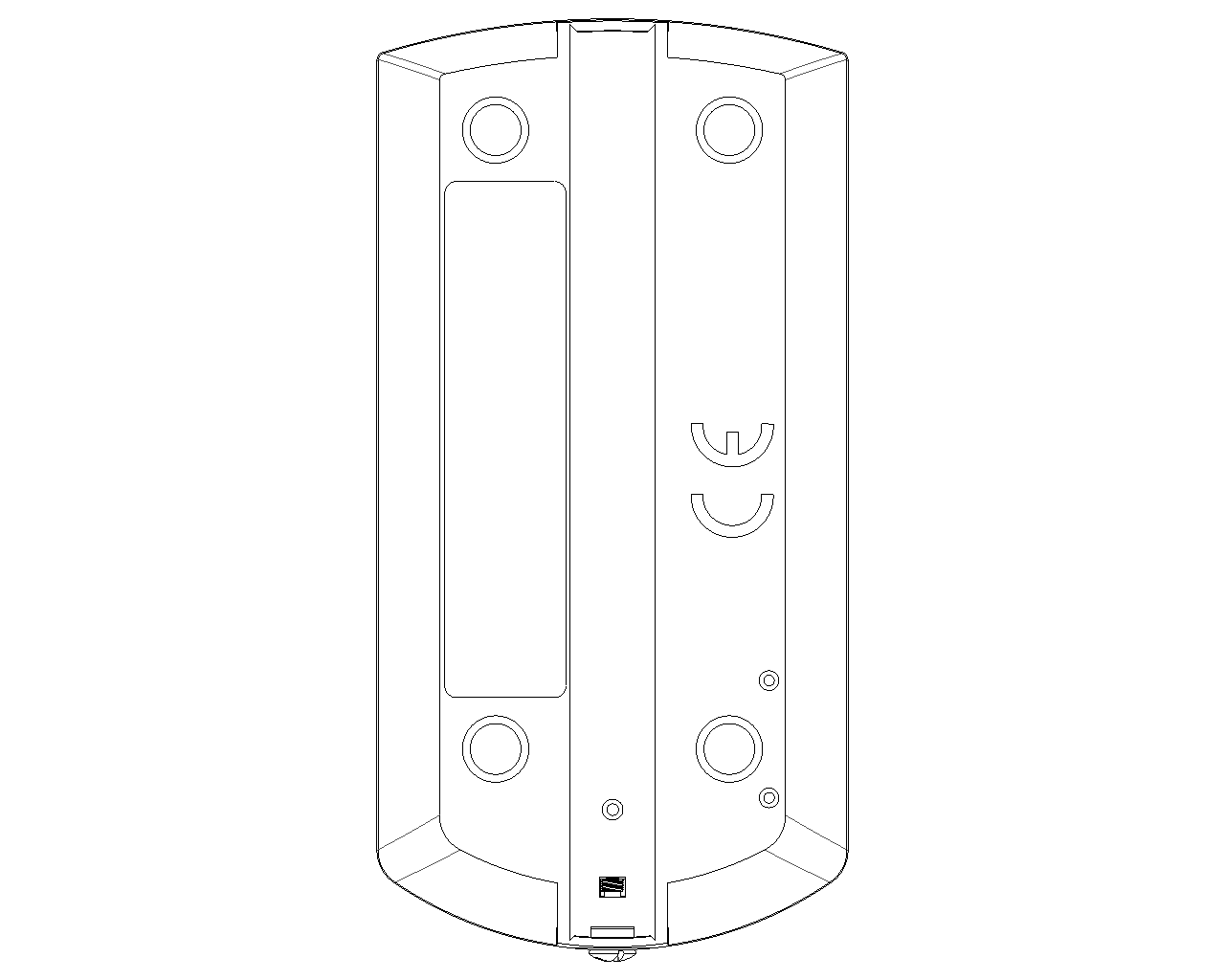

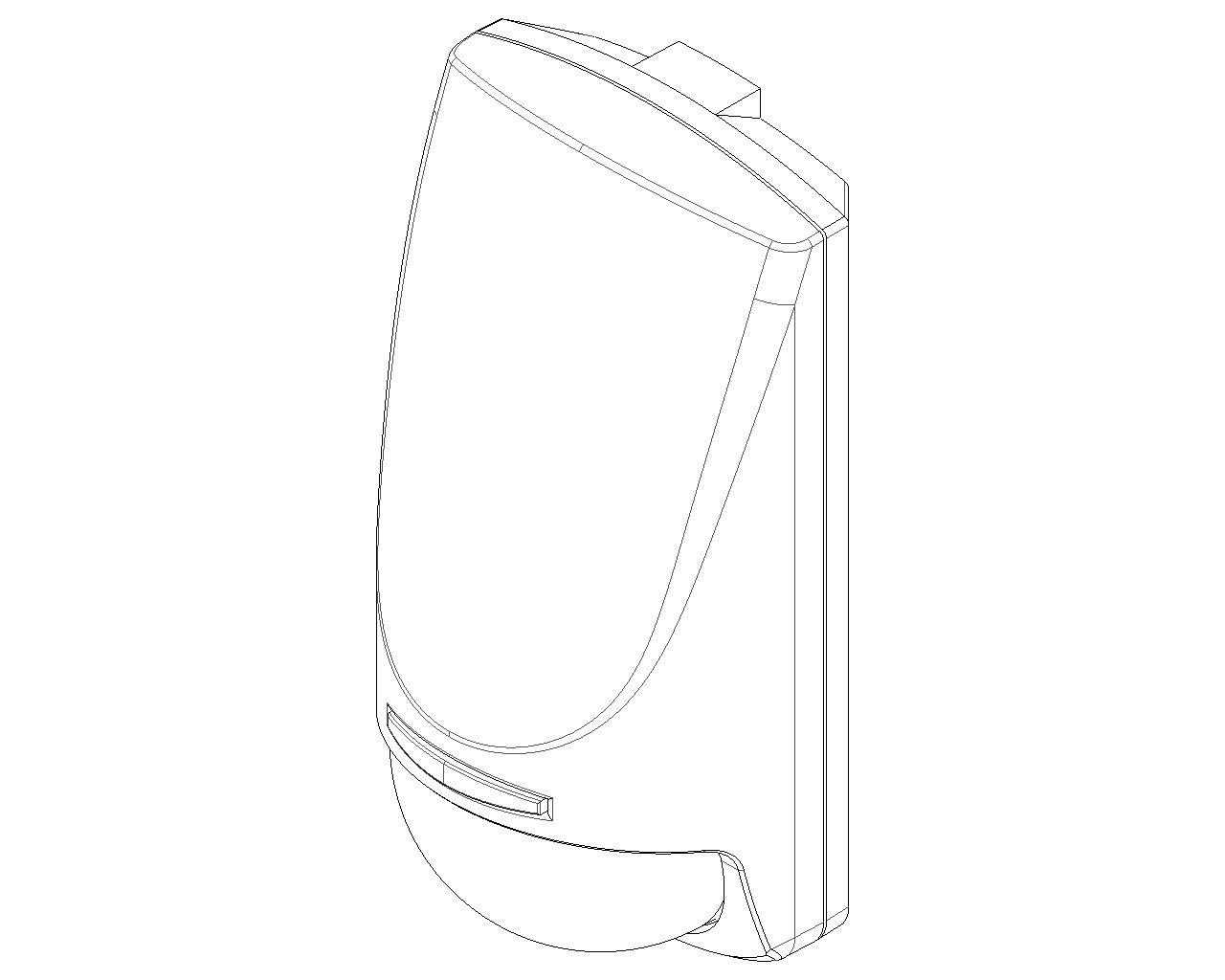

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Mounting method
Surface mounting

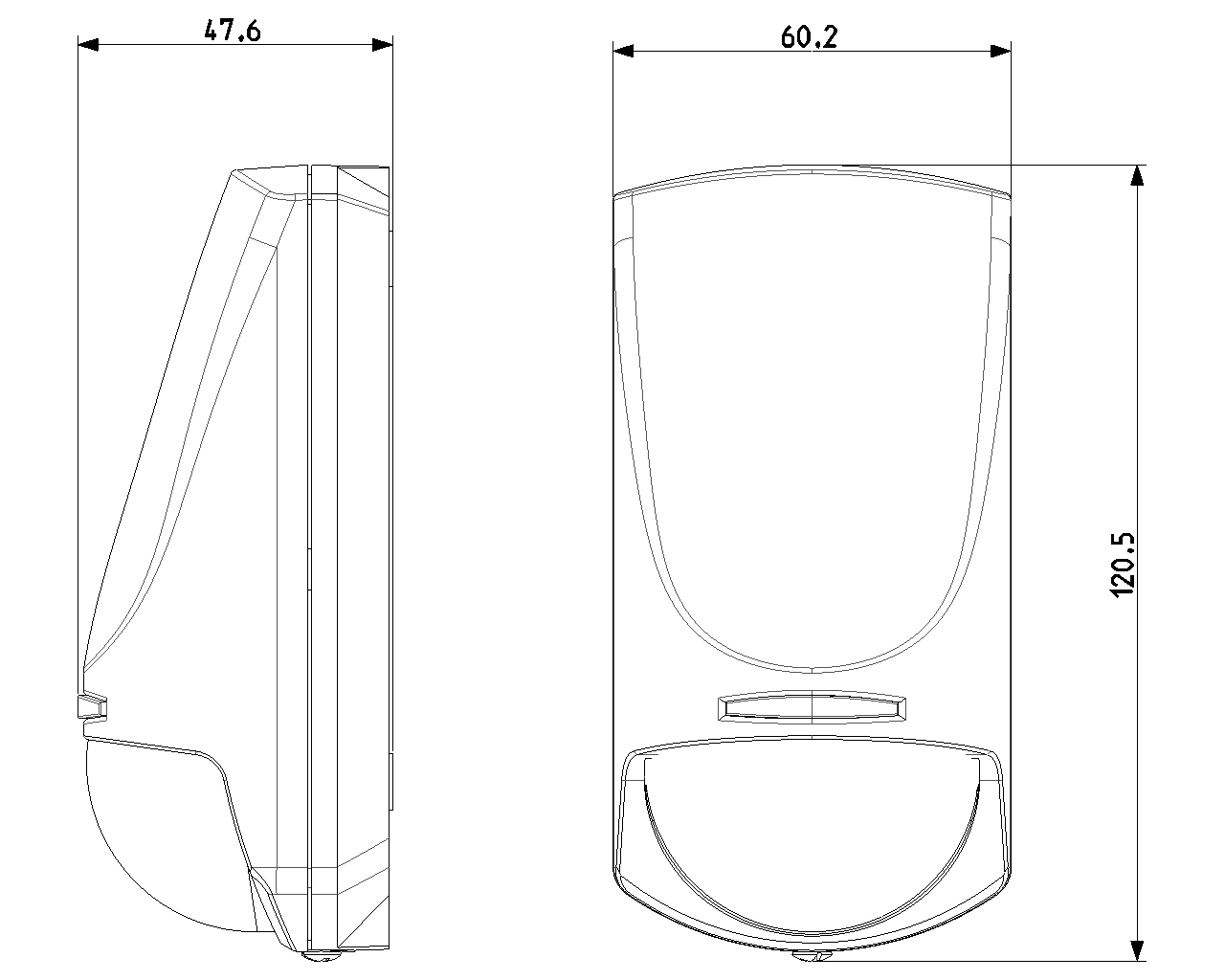

Height
120,50 mm

Width
60,20 mm

Depth
47,60 mm

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352708617

1 NR

14.2x6.2x5.6 [cm]

140.85 [g]

8007352722552

38 NR

37x28.5x25 [cm]

5,722 [g]
