By-alarm Plus RF interface board - 03832

Pdf

03832
Safety / By-alarm Plus / Surface mounting components / Non-modular components

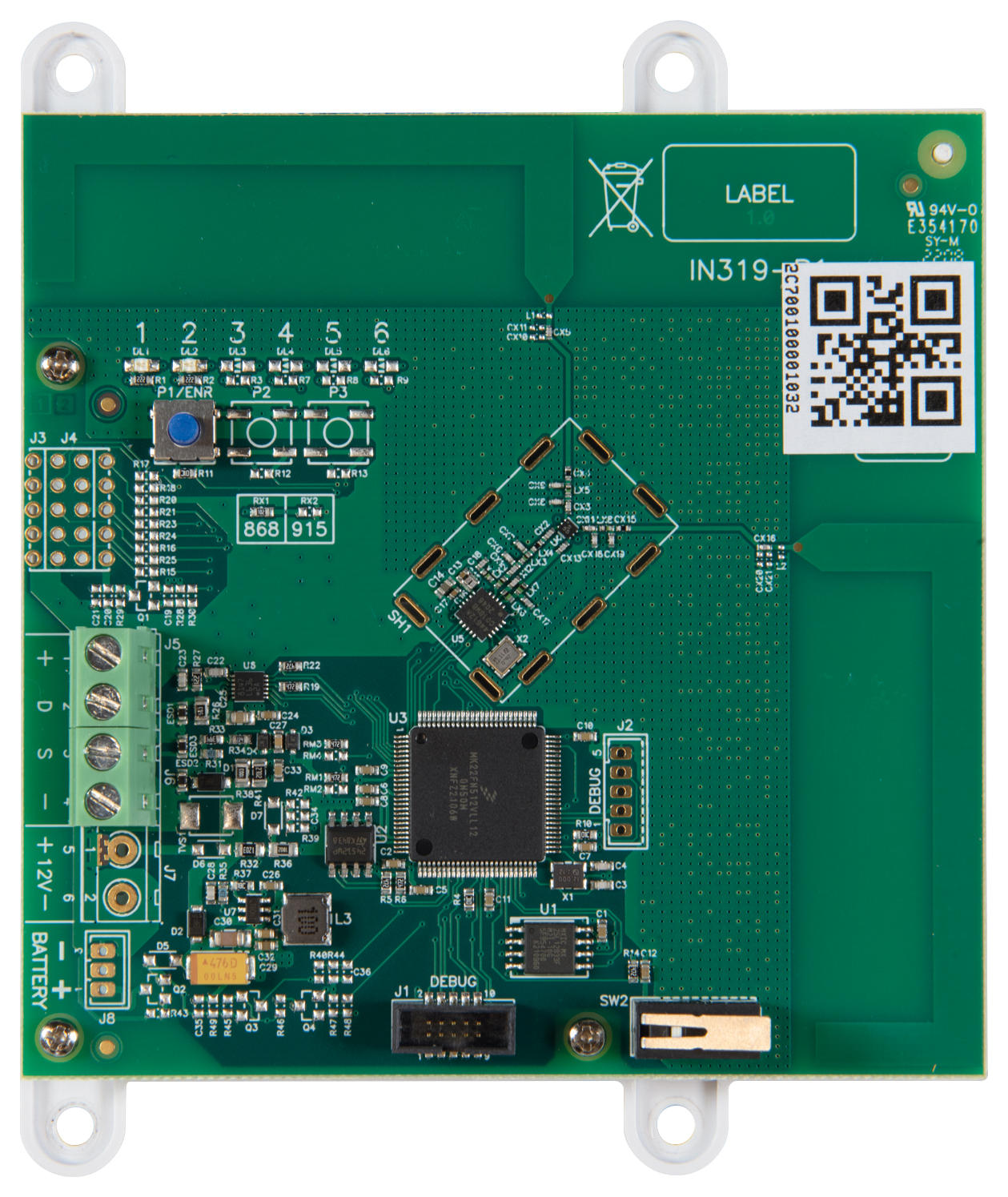

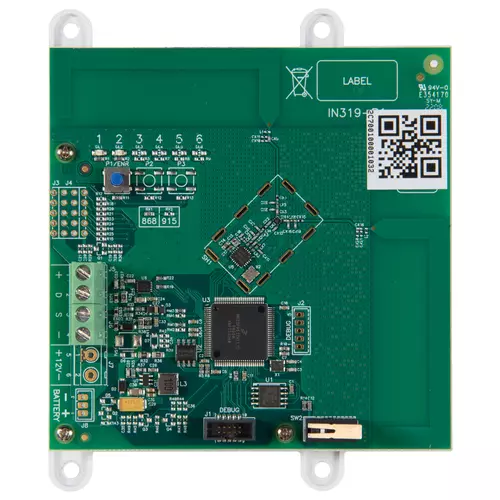

By-alarm Plus RF interface board
By-alarm Plus transceiver board, 868 MHz radio frequency connection, BUS connection to the control unit, 2 antennas for horizontal and vertical polarisation with antenna-diversity

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Expansion module for danger detection systems
Model
Interface module

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352708389
1 NR
15.9x14.1x3.9 [cm]
133.6 [g]
Barcode Qty 12 NR
8007352708396
12 NR
29.5x23.5x17.5 [cm]
1,860 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
