Multifunct.autom.actuator 4OUT relay - 01471

Pdf
Vimar - 01471 - Multifunct.autom.actuator 4OUT relay
Foto gallery #1
Vimar - 01471 - Multifunct.autom.actuator 4OUT relay

01471
Smart systems&products / By-me Plus / Shared components / DIN devices

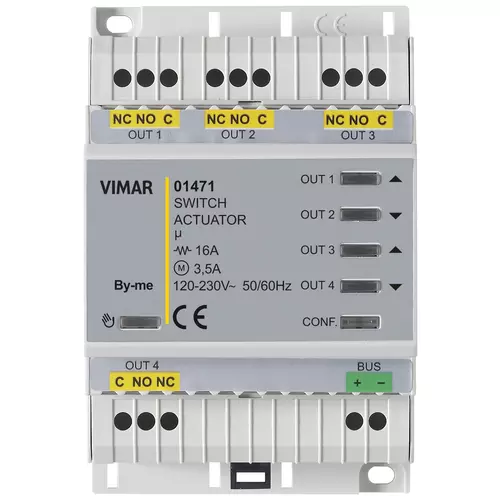

Multifunct.autom.actuator 4OUT relay
Actuator with 4 programmable 16 A 120-230 V~ change-over relay outputs, for lighting and laths orientation and fan-coil control, local control push buttons, By-me home automation, for DIN (60715 TH35) rail installation, occupies 4 17,5 mm modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Mounting method
Other
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Suitable for C-load
No
Max. number of switching contacts
4
Rated current
16 A
Rated operating voltage
120,00 - 230,00 V
Different phases connectable
No
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
No
Degree of protection (IP)
IP20

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352539426
1 NR
11.7x10.8x7.1 [cm]
241.3 [g]
Barcode Qty 60 NR
8007352573161
60 NR
59x38.5x30 [cm]
15,110 [g]
Question: Is a BUS connection necessary to control 6 loads via articles 01455 and 01471?
Answer: The products indicated not only necessarily have to be connected to one another via BUS cable, but a system home automation system power supply unit must also be envisaged (e.g. 01400 or 01401 according to need) and they must be commissioned via the related configurator device.
