16A relay actuator+current sensor grey - 20537

Pdf
Vimar - 20537 - 16A relay actuator+current sensor grey
Vimar - 20537 - 16A relay actuator+current sensor grey

20537
Smart systems&products / By-me Plus / EIKON / Devices

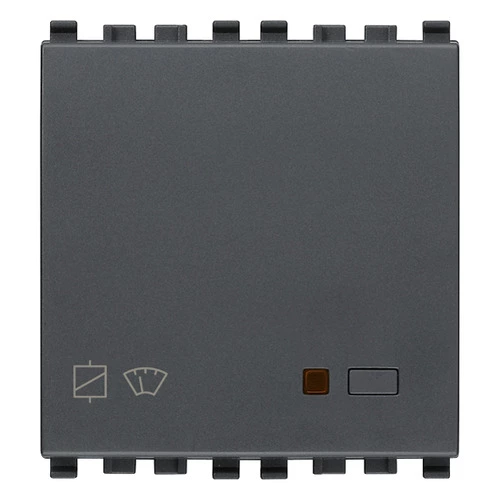

16A relay actuator+current sensor grey
Actuator with relay output 16 A 230 V~ 50 Hz with incorporated current sensor, grey - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
Local operation/hand operation
No
With LED indication
Yes
Suitable for C-load
Yes
Max. number of switching contacts
1
Rated current
16 A
Rated operating voltage
230,00 - 230,01 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352493728
1 NR
11.2x9.6x9.8 [cm]
120.7 [g]
