IP 10in touch screen PoE black - 01425

Pdf

01425
Smart systems&products / View smart system / Surface mounting components / Devices

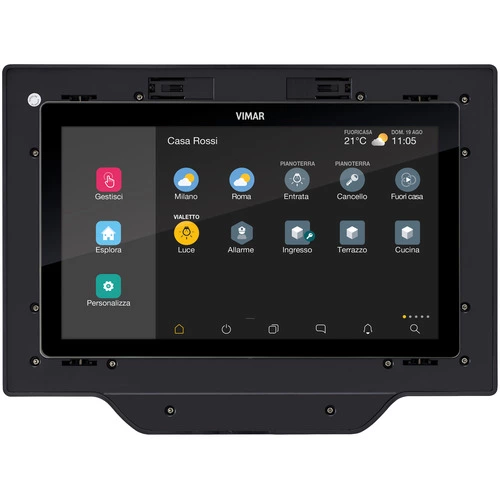

IP 10in touch screen PoE black
10” colour touch screen via specific gateway, used for home automationsystem supervision, IP/Due Fili Plus internal video entryphone, IP video camera and CCTV system manager, power supply PoE or 12-30 Vdc, complete with mounting frame for 8 (4+4)-module flush mounting boxes, to be completed with 10” cover plate, black

Product Status
3 - Active

Class group
Installation bus systems
Class
Signalling and operation panel for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Assembly arrangement
Other
Model
Signalling and operating panel
Mounting method
Flush-mounted
Text field
No
Display
Colour
Touch function
Yes
Additional interfaces
Ethernet
With bus connection
No
Material
Glass
Material quality
Other
Colour
Black
RAL-number (similar)
9004
Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352586048
1 NR
40.5x30x12 [cm]
1,746 [g]
Question: What is the related completion cover plate?
Answer: The correct code is 21665.70
