2P+E 10A P11 axial outlet white - 01023.B

Pdf
Vimar - 01023.B - 2P+E 10A P11 axial outlet white
Vimar - 01023.B - 2P+E 10A P11 axial outlet white

01023.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Mille series plugs&sockets

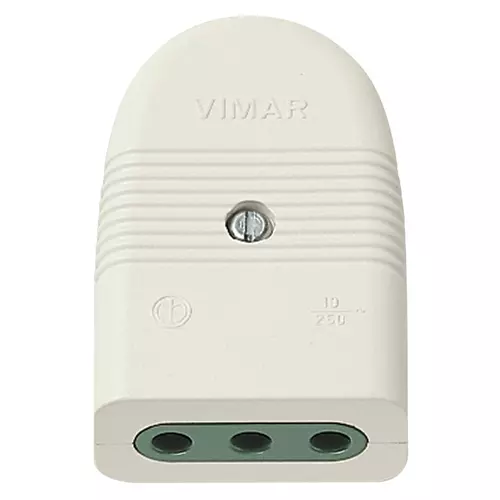

2P+E 10A P11 axial outlet white
2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11, axia l cable entry, white

Product Status
3 - Active

You may also be interested in

01023
01023 - 2P+E 10A P11 axial outlet black
Class group
Domestic switching devices
Class
Coupler with protective contact
Model
Italian type P11
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Suitable for protective contact pin
Yes
Colour
White
RAL-number
0
Number of poles
2
Nominal voltage
250 V
Nominal current
10 A

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352035355
1 NR
4x6.6x1.8 [cm]
28.6 [g]
Barcode Qty 10 NR
8007352325784
10 NR
20x15x5 [cm]
286.33 [g]
Barcode Qty 100 NR
8007352007963
100 NR
28.5x26x23.5 [cm]
3,045.4 [g]
