2P+E 10A P11 axial outlet black - 01023

Pdf
Vimar - 01023 - 2P+E 10A P11 axial outlet black
Vimar - 01023 - 2P+E 10A P11 axial outlet black

01023
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Mille series plugs&sockets

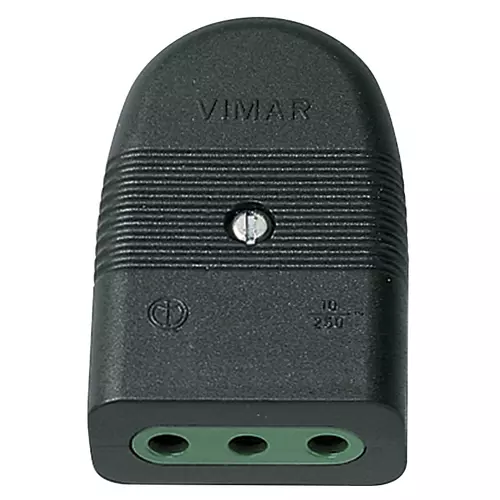

2P+E 10A P11 axial outlet black
2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11, axia l cable entry, black

Product Status
3 - Active

You may also be interested in

01023.B
01023.B - 2P+E 10A P11 axial outlet white
Class group
Domestic switching devices
Class
Coupler with protective contact
Model
Italian type P11
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Suitable for protective contact pin
Yes
Colour
Black
RAL-number
0
Number of poles
2
Nominal voltage
250 V
Nominal current
10 A

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352035348
1 NR
4x6.6x1.8 [cm]
28.49 [g]
Barcode Qty 10 NR
8007352325777
10 NR
20x15x5 [cm]
284.93 [g]
Barcode Qty 100 NR
8007352007956
100 NR
285x26x23.5 [cm]
3,030.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
