2P+E 10A P11 axial outlet black - 00221

00221
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

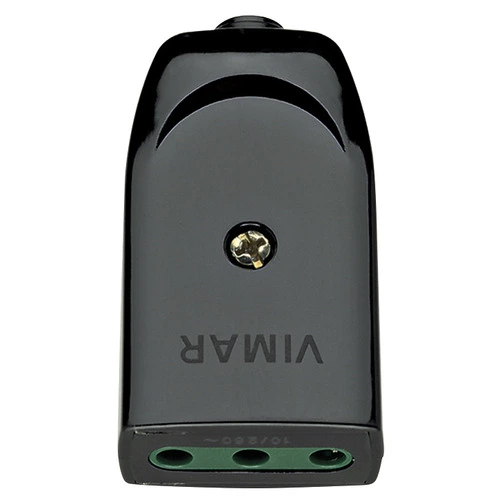

2P+E 10A P11 axial outlet black
Portable 2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11, axial cable entry, black

Product Status
3 - Active

You may also be interested in

00221.B - 2P+E 10A P11 axial outlet white

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Coupler with protective contact

Model
Italian type P11

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Degree of protection (IP)
IP20

Insert direction
Straight

Connection system
Screwed terminal

Suitable for protective contact pin
Yes

Colour
Black

RAL-number
0

Number of poles
2

Nominal voltage
250 V

Nominal current
10 A

00. CE Marking - EU

01. IMQ - Italy

07. INGCER - Chile

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352021693

1 NR

13x6x1.2 [cm]

28.8 [g]

8007352021709

100 NR

27x25x15 [cm]

3,265 [g]
