2P+E 10A SPA11 90°-plug black - 00206

Pdf
Vimar - 00206 - 2P+E 10A SPA11 90°-plug black
Vimar - 00206 - 2P+E 10A SPA11 90°-plug black

00206
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

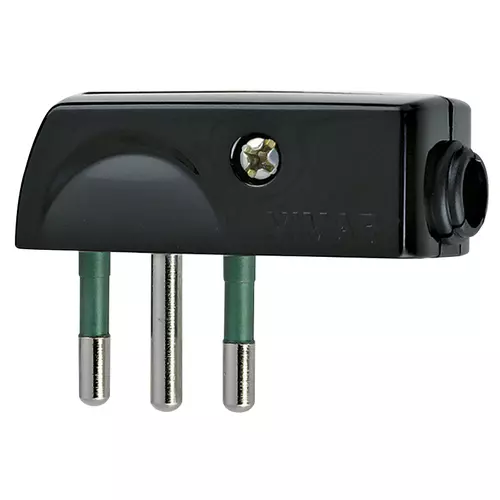

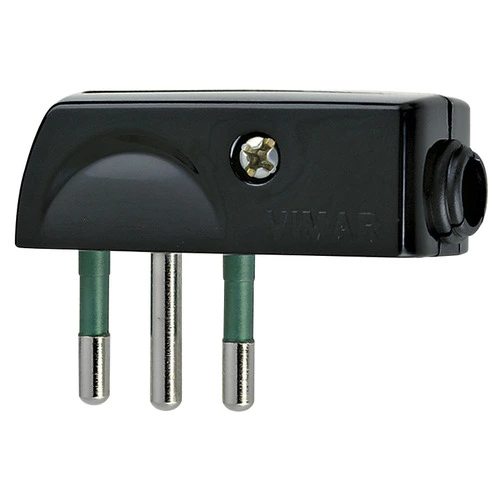

2P+E 10A SPA11 90°-plug black
2P+E 10 A 250 V~ SICURY flat plug, Italian standard SPA11, 90° cable entry, black

Product Status
3 - Active

You may also be interested in

00206.B
00206.B - 2P+E 10A SPA11 90°-plug white

Drawings

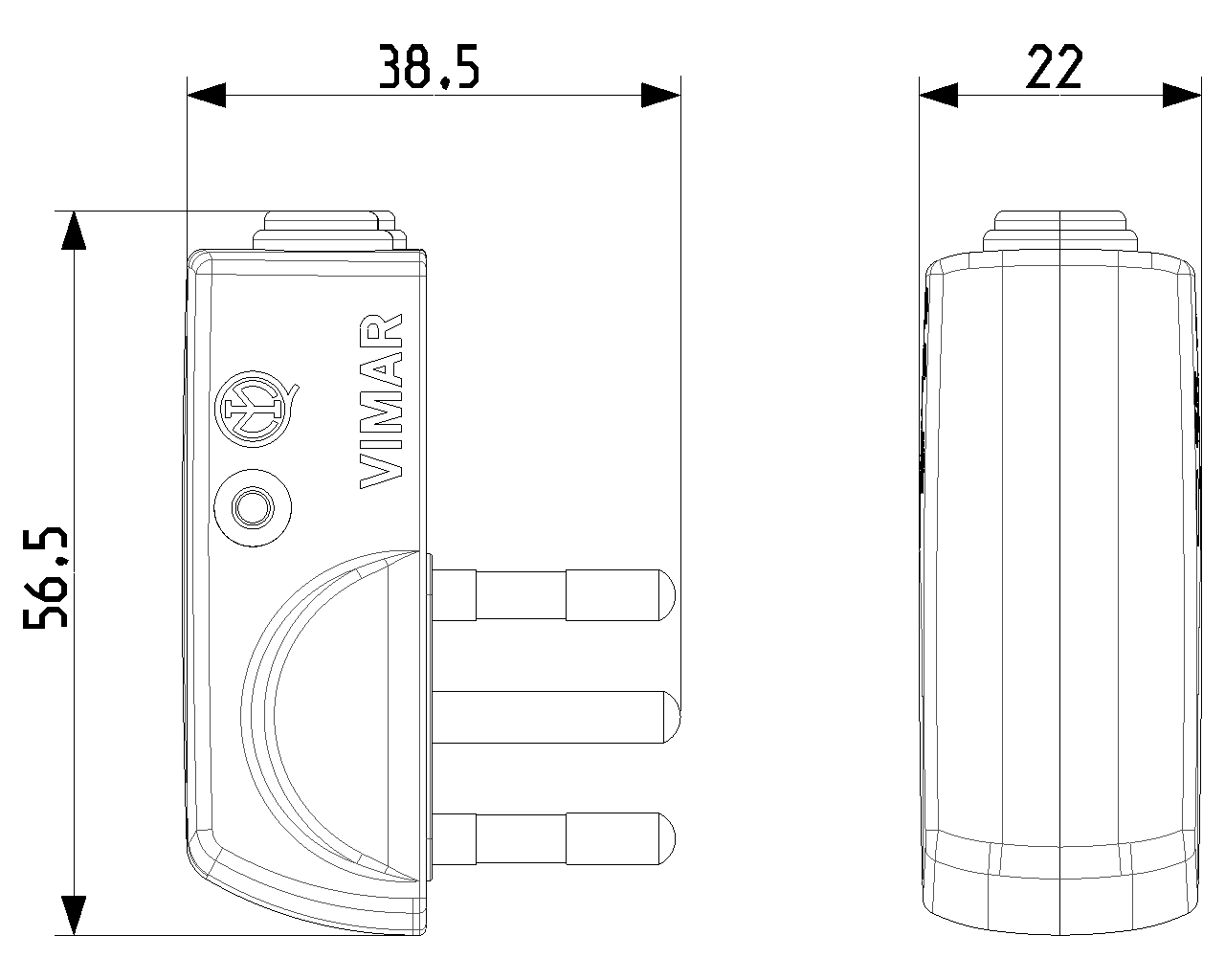

view encumbered art. 00206
PNG DXF
rear view art. 00206
PNG DXF

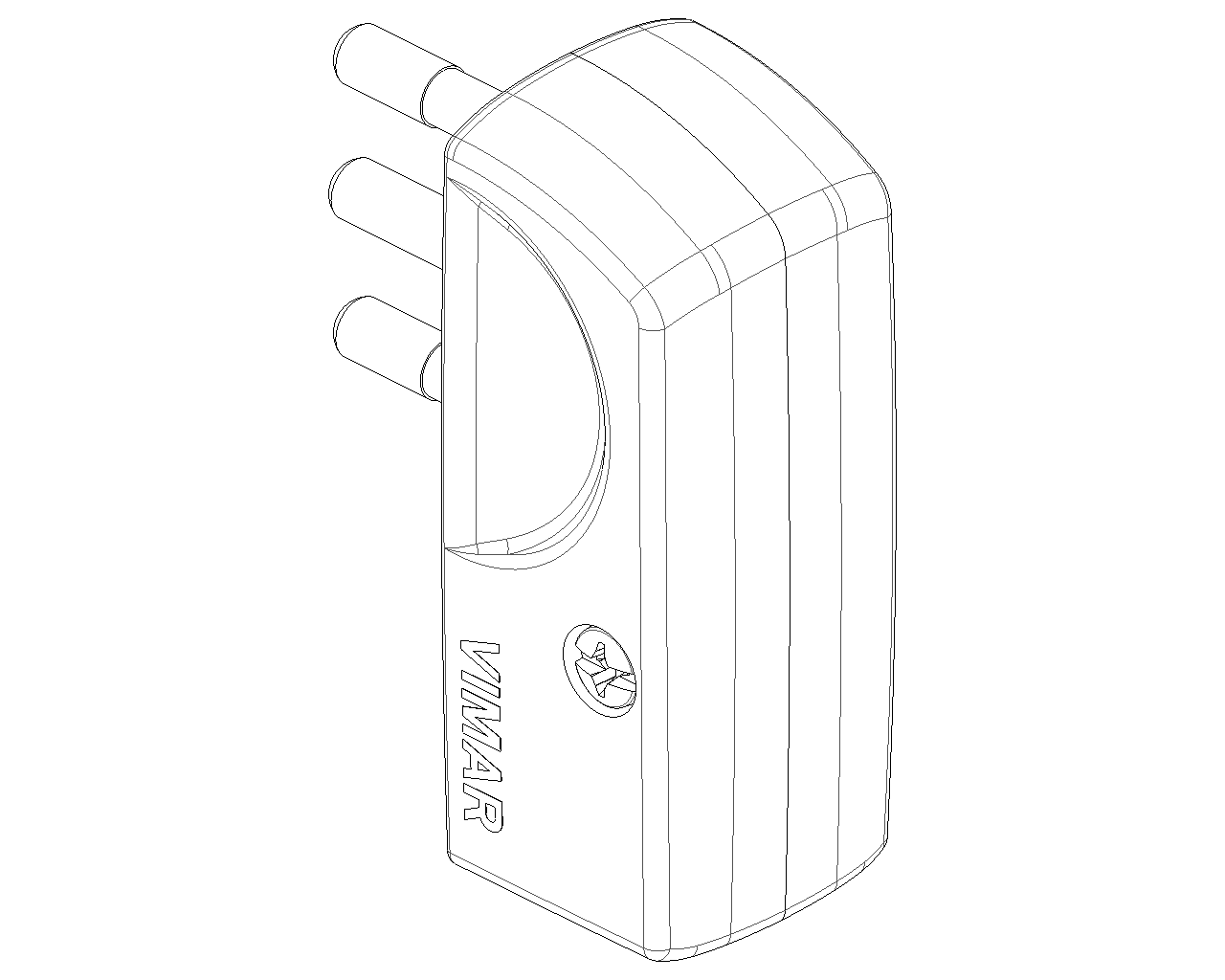

3D view art. 00206
PNG DXF
Class group
Domestic switching devices
Class
Plug with protective contact
Model
Other
Material
Plastic
Material quality
Thermoplastic
Degree of protection (IP)
IP20
Insert direction
Right-angled
Connection system
Screwed terminal
Colour
Black
Number of poles
2
Nominal voltage
250 V
Nominal current
10 A

00. CE Marking - EU

01. IMQ - Italy

07. INGCER - Chile

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352020054
1 NR
5.6x3.9x2.1 [cm]
21.47 [g]
Barcode Qty 100 NR
8007352019218
100 NR
27x25x15 [cm]
2,515 [g]
