Video kit 1/2-Fam.Tab 7+41005 - K40505G.01

Pdf
Vimar - K40505G.01 - Video kit 1/2-Fam.Tab 7+41005
Vimar - K40505G.01 - Video kit 1/2-Fam.Tab 7+41005

K40505G.01
ELVOX Door entry system / 2F/2F+ video door entry system / Video / Video kits

Video kit 1/2-Fam.Tab 7+41005

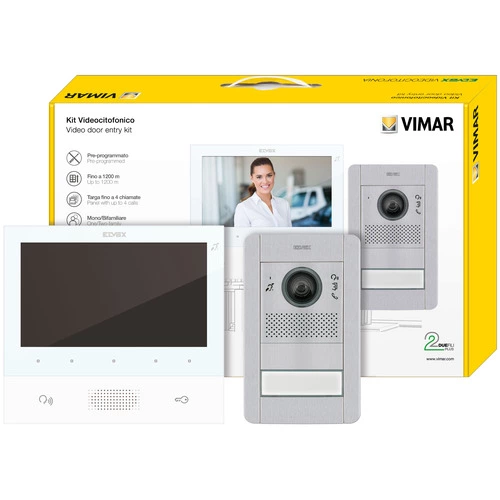

Due Fili Plus colour hands-free video door entry kit containing: 1 support + 1M Pixel grey frame 41131.01 with 1 push button, 1 audio/video electronic unit, wide-angle teleloop 41005, 1 Pixel grey A/V teleloop front module 41105.01, 1 Pixel grey single blank module 41113.01, 1 flush mounting box for 1 module 9191 for Pixel series entrance panel, 1 surface mounting Tab 7 hands-free video entryphone with white 7in colour LCD display 40505, 1 power supply unit 40110

产品状态
3 - Active

套件元件

41131.01
41131.01 - Pixel frame+plate 1M grey
41005
41005 - 2F+ A/V wide-angle teleloop unit
41105.01
41105.01 - Pixel A/V Teleloop front module grey
41113.01
41113.01 - Pixel single blank module grey
9191
9191 - Back box for entrance panels, 1 module
40505
40505 - Tab 7 2F+ hands-free video entryph.white
40110
40110 - Supply unit 2F+ 100-240V 1 OUT 1,6A
Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177,80 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8013406306760
1 NR
51x34x9.5 [cm]
1,881.6 [g]
