KLYS 9CD up-and-over kit 24V 9m2 - EK12

Pdf
Vimar - EK12 - KLYS 9CD up-and-over kit 24V 9m2
Vimar - EK12 - KLYS 9CD up-and-over kit 24V 9m2

EK12
Safety / ELVOX Automations / Kits / Garage doors

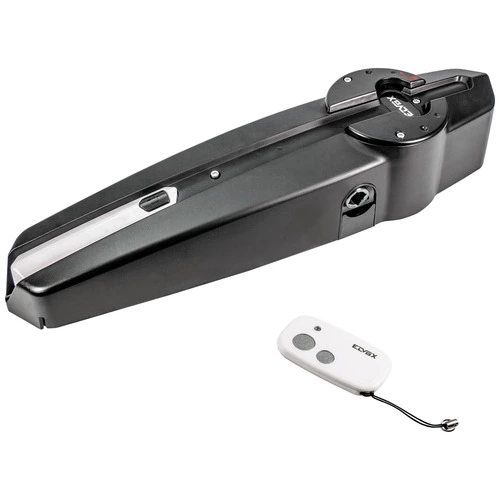

KLYS 9CD up-and-over kit 24V 9m2
Kit KLYS 9CD for up-and-over doors up to 9 m2. Contents: 1 EBM1 KLYS 9CD MASTER non-reversible 24 V electromechanical operator, 1 ETRN2 2-channel 433 MHz rolling code remote control

产品状态
2 - Will be discontinued

套件元件

EBM1
EBM1 - KLYS9CD MASTER up&over operator 24V 9m2
ETRN2
ETRN2 - 2-channel remote control 433MHz rolling

单, 说明书, 文档

Class group
Gate operators, pumps and ventilators
Class
Garage door operator
Nominal voltage
24 V
Max. door/gate width
5.000 mm
Number of safety inputs
2
Frequency radio receiver
433 MHz
With rail runner
No
With interior push-button
Yes
Separate control unit housing
No
Suitable for gates with low-lintel-fitting
Yes
Soft run
Yes
Cycle counter
No
Door status indication
No
Defined running direction control
Yes
Connection for red traffic light
No
Suitable for collective garages
Yes
Floating relay output
No
With manual transmitter
Yes

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8013406228000
1 NR
25x77x19.5 [cm]
11,500 [g]
