Vimar - 6942 - Digibus aud.door ent.syst.pow.sup.230V

6942
ELVOX Door entry system / Digibus video entry system / Shared A/V components / System components

Digibus aud.door ent.syst.pow.sup.230V
Additional power supply unit for Digibus audio door entry system with outputs 12 Vd.c., 13.5 Vd.c. and 15 V, power supply 230 V~ 50/60 Hz 70 VA, powers up to 200 interphones, installation on DIN rail (60715 TH35), occupies 12 modules size 17.5 mm

产品状态
3 - Active

单, 说明书, 文档

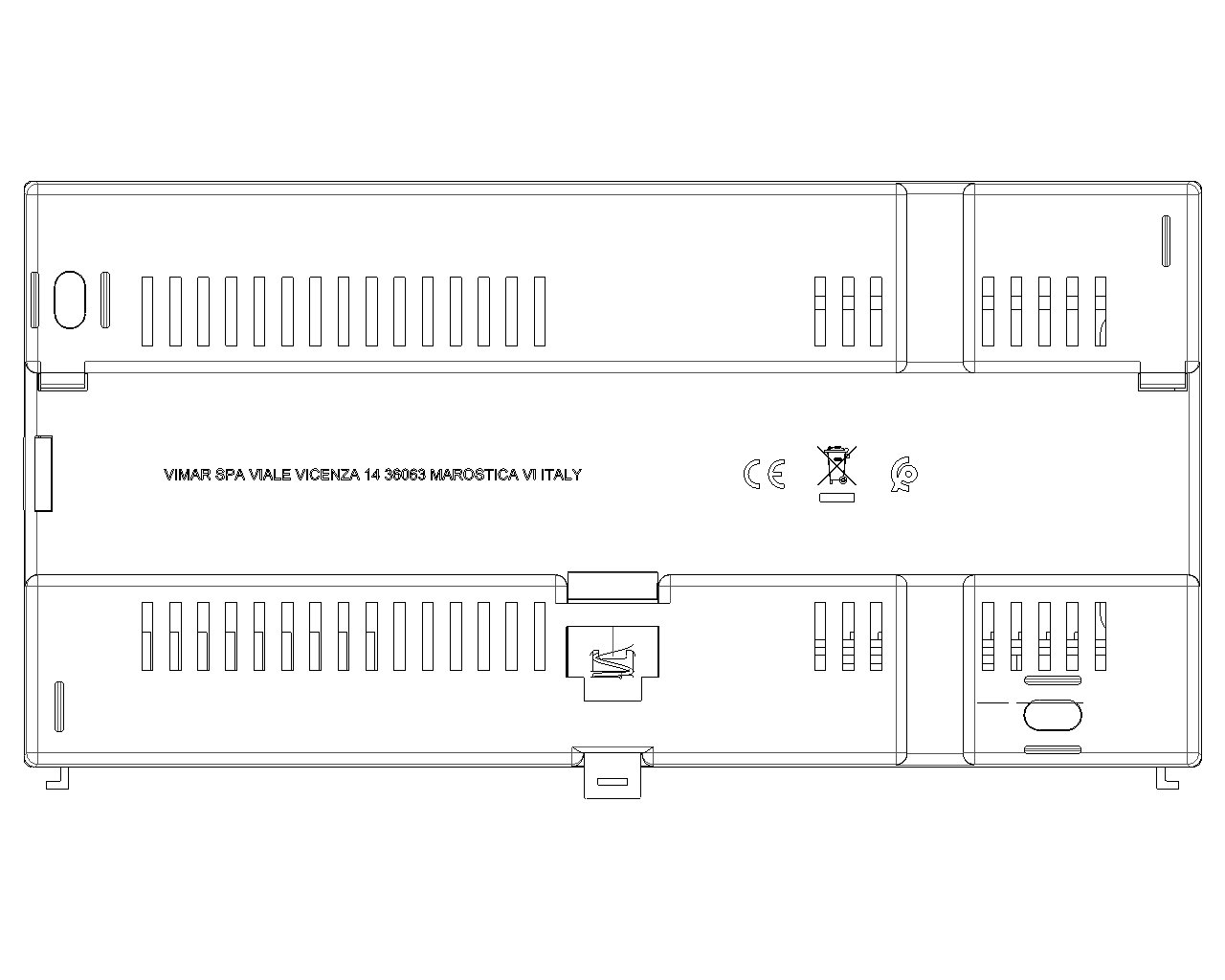

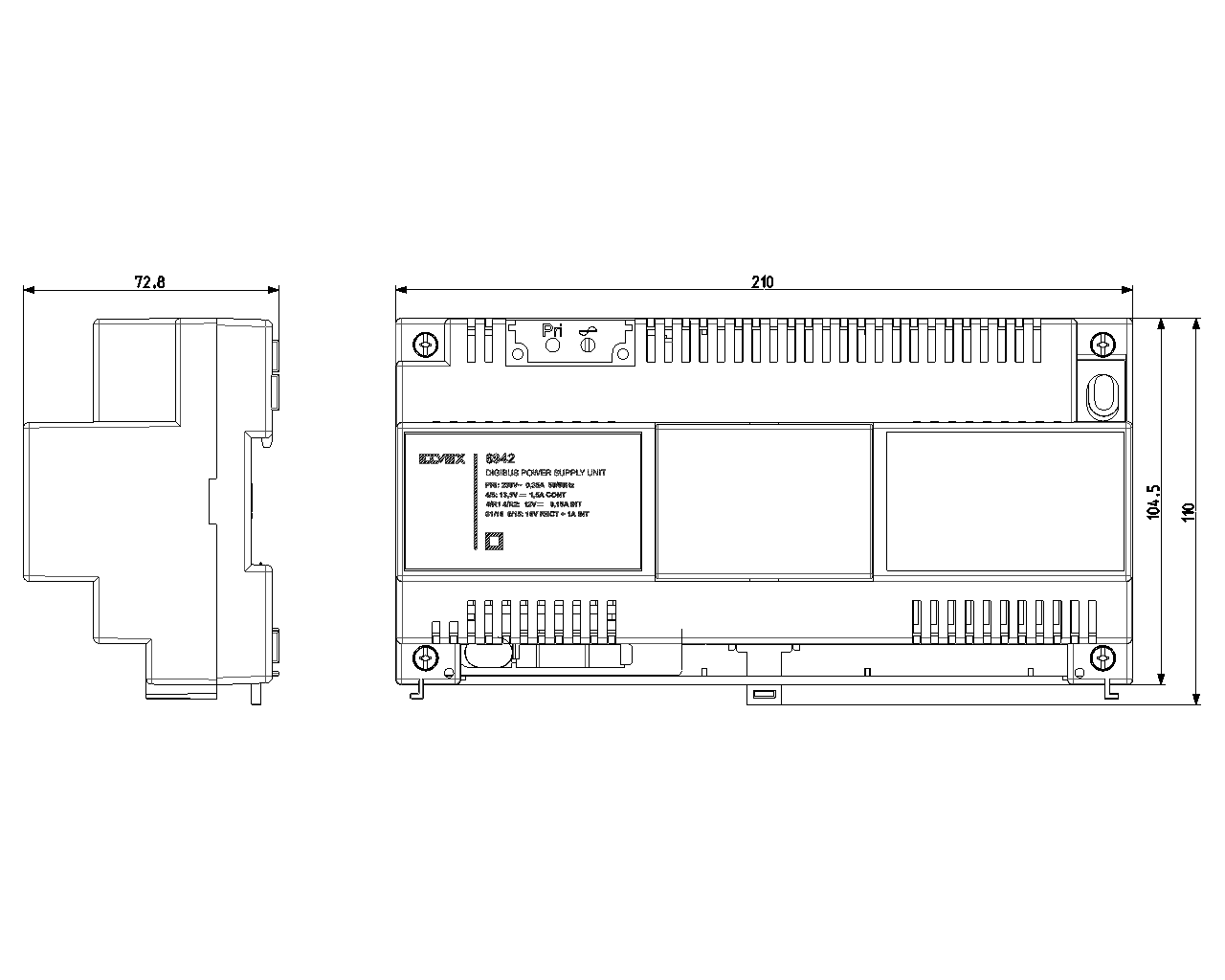

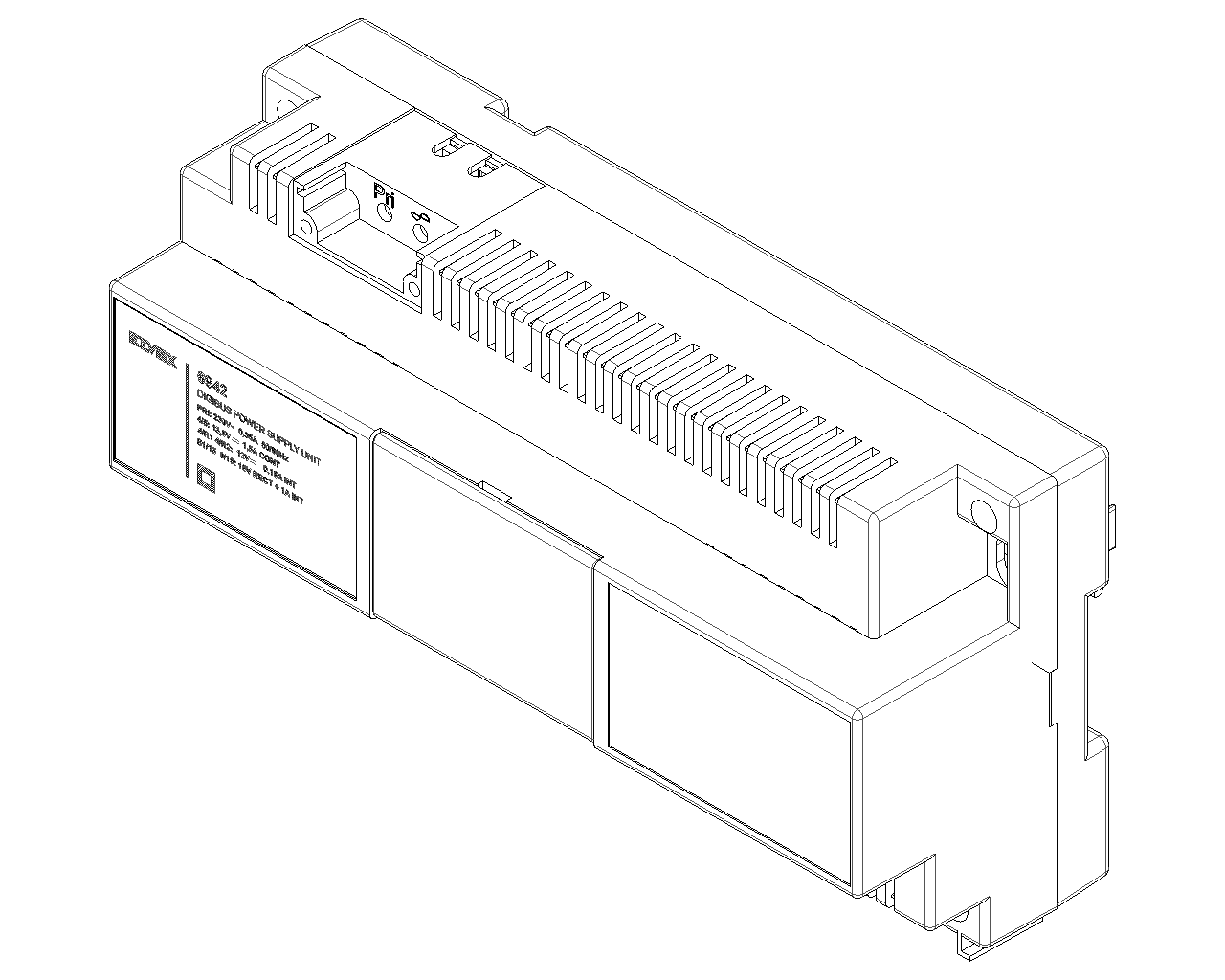

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Power supply door communication

Application
Other

Input voltage
230 V

Type of current
DC

Output voltage
12,00 V

Degree of protection (IP)
IP20

Installation technique
Multi-wire system

Integrated door opening circuit
No

Control function
No

Evaluation function
No

Service indication
No

Mounting method
Other

Programming lock
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

最小订单数量: 1 NR

条形码

8013406131454

1 NR

24.4x13.9x8.4 [cm]

1,554 [g]
