Due Fili add. power supply unit 240V - 6923/240

Pdf
Vimar - 6923/240 - Due Fili add. power supply unit 240V
Vimar - 6923/240 - Due Fili add. power supply unit 240V

6923/240
ELVOX Door entry system / 2F/2F+ video door entry system / Shared A/V components / System components

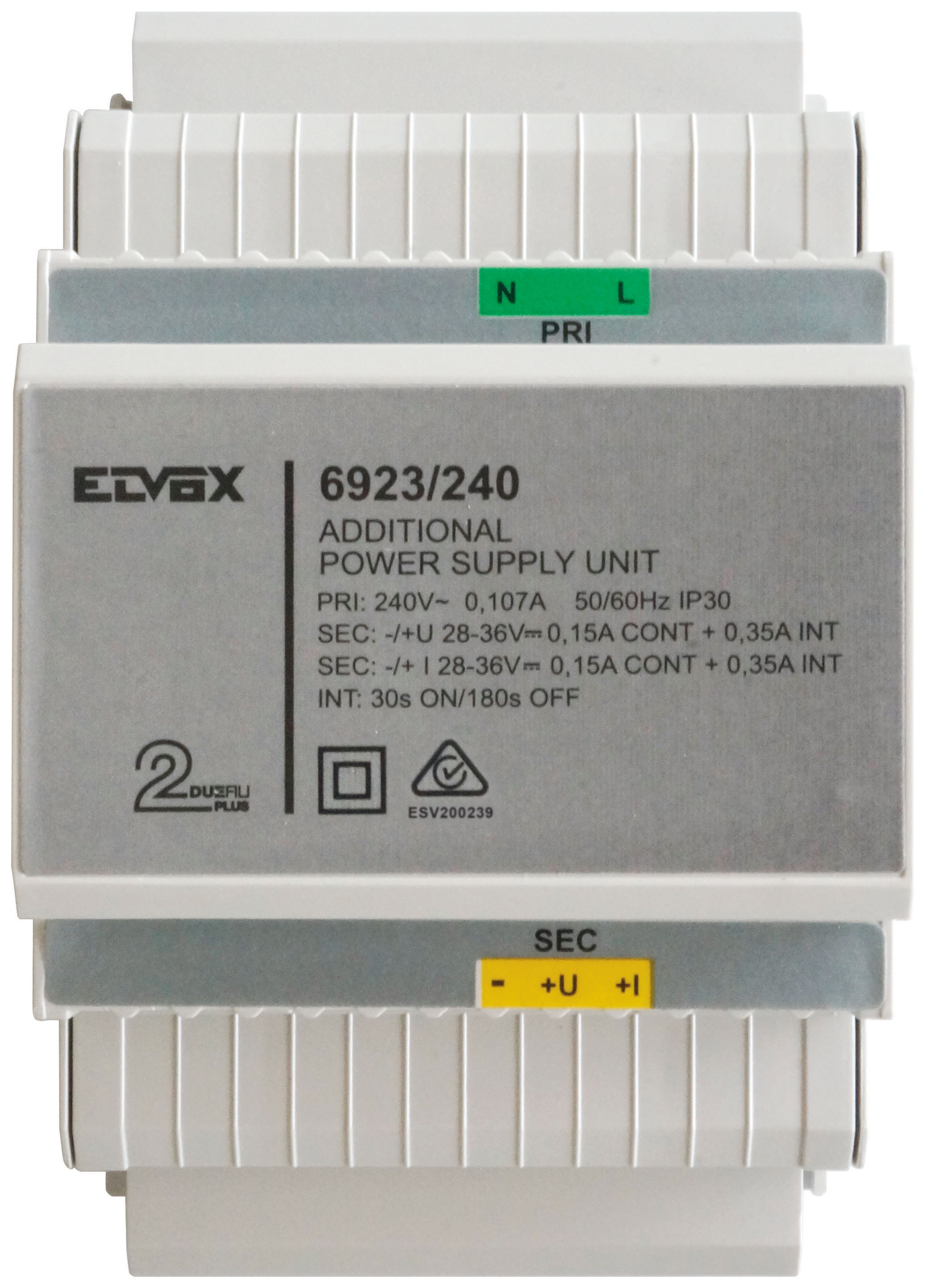

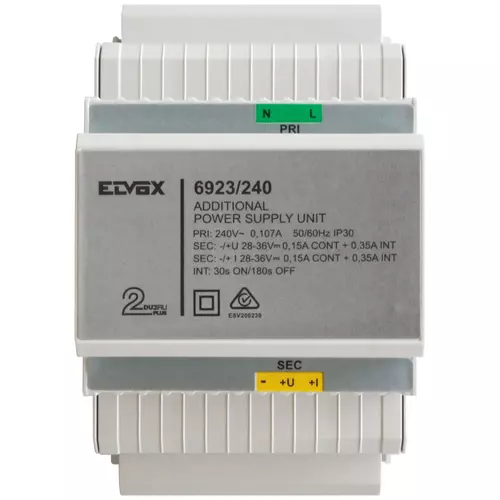

Due Fili add. power supply unit 240V
Additional power supply unit for Due Fili video door entry system with 28 V d.c. output, power supply 240 V~ 50/60 Hz 15 VA, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

产品状态
3 - Active

Class group
Communication technique
Class
Accessories/spare parts for door communication
Suitable for
Indoor station
Mounting method
Surface mounted
Material
Other
Colour
Grey

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8013406190505
1 NR

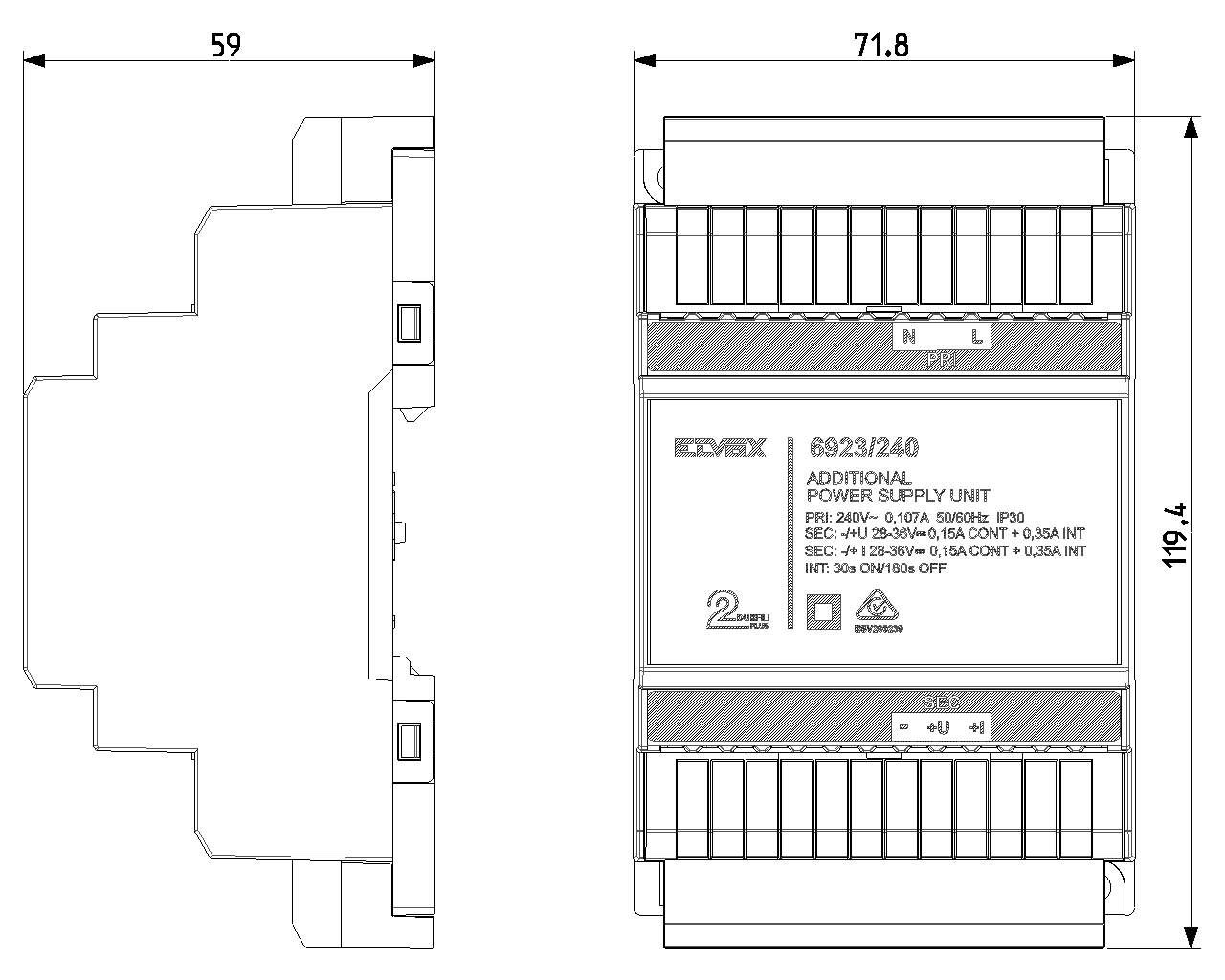

12.5x7.5x6.5 [cm]
561.35 [g]
Barcode Qty 22 NR
8007352685642
22 NR
39.5x29.5x14.5 [cm]
12,709.7 [g]
