6680
ELVOX Door entry system / Multi-wire video entry system / Shared A/V components / System components

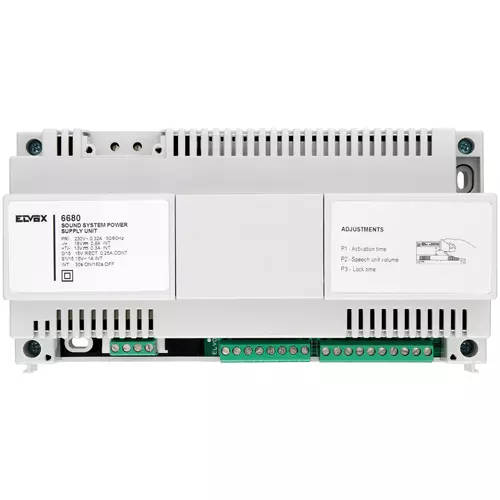

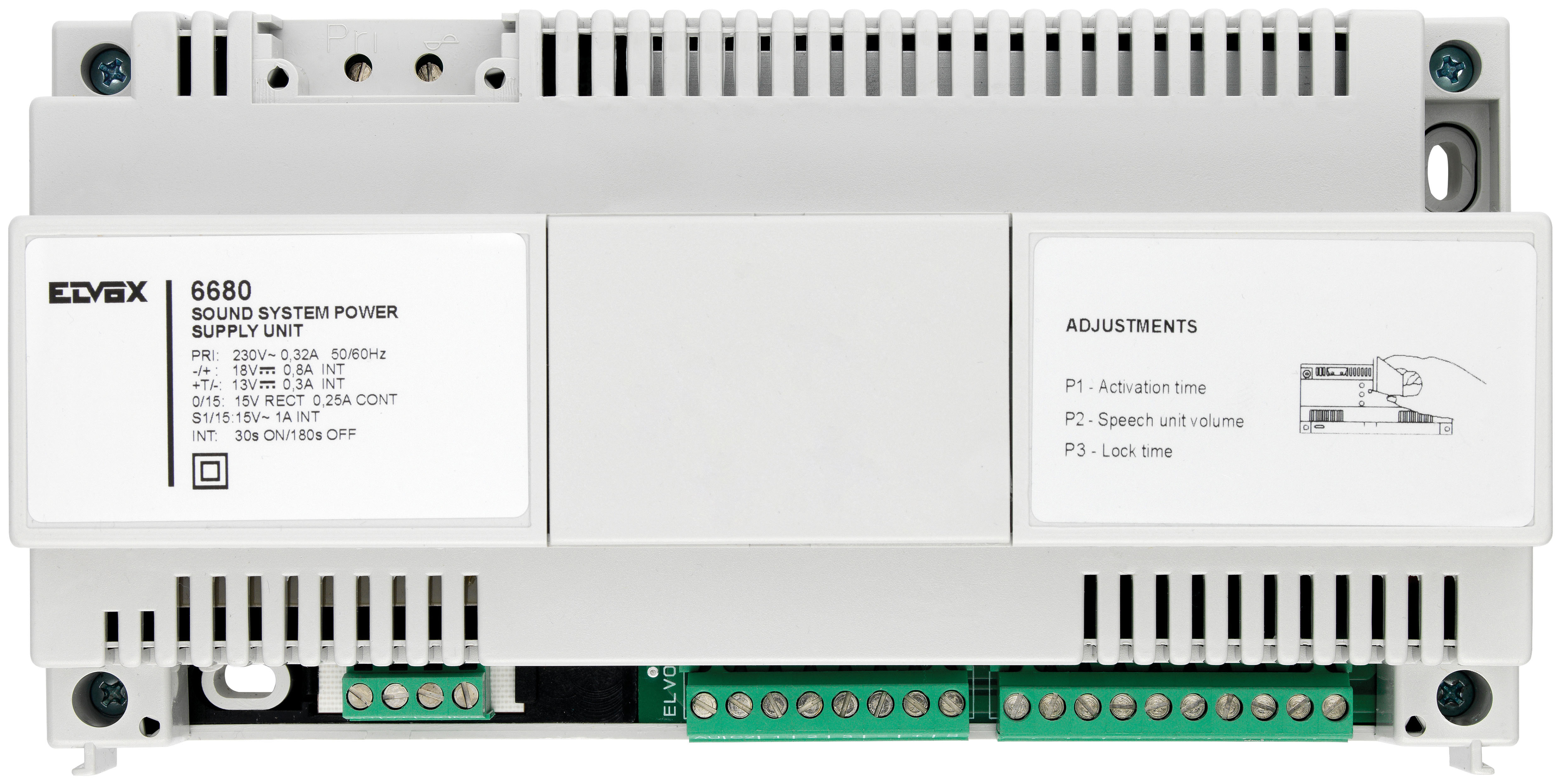

Sound System power supply unit 230V
Power supply unit for Sound System video door entry system with outputs 13 Vd.c., 15 V, 18 Vd.c., power supply 230 V~ 50/60 Hz 60 VA, installation on DIN rail (60715 TH35), occupies 12 modules size 17.5 mm
产品状态
3 - Active

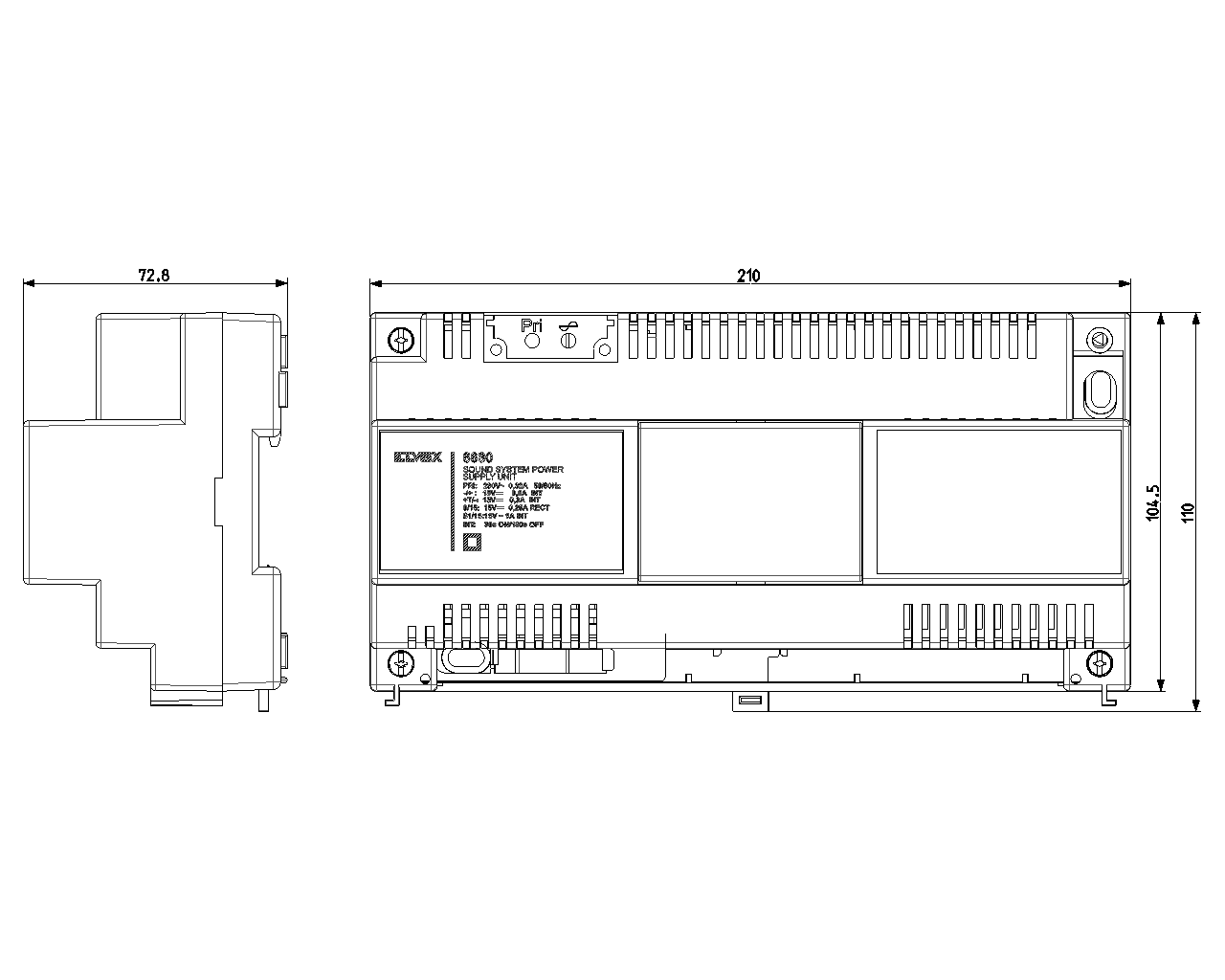

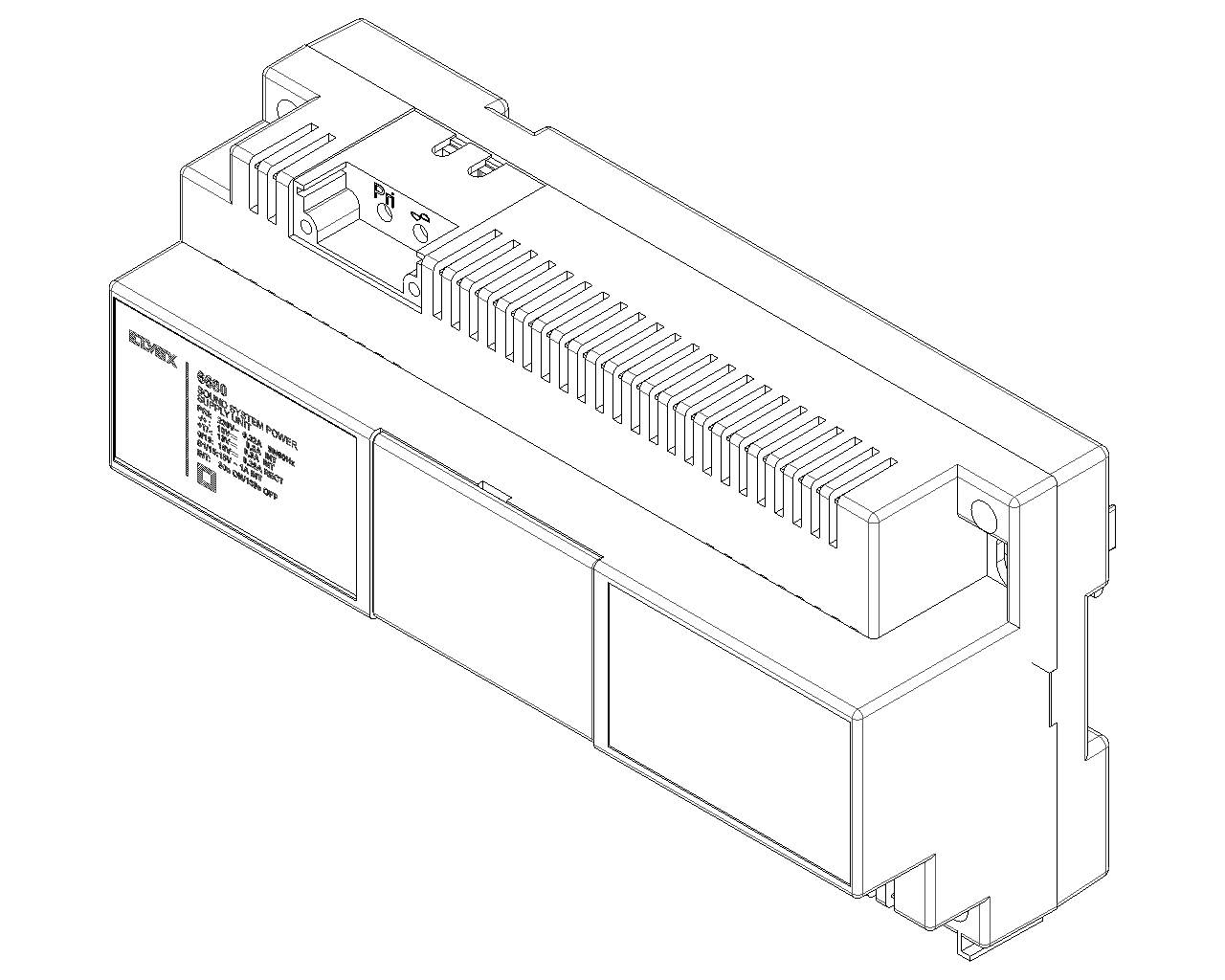

图纸
Class group
Communication technique
Communication technique
Class
Power supply door communication
Power supply door communication
Application
Other
Other
Input voltage
230 V
230 V
Type of current
DC
DC
Output voltage
13,00 V
13,00 V
Degree of protection (IP)
IP20
IP20
Installation technique
Multi-wire system
Multi-wire system
Integrated door opening circuit
Yes
Yes
Control function
No
No
Evaluation function
No
No
Service indication
No
No
Mounting method
Other
Other
Programming lock
No
No
最小订单数量: 1 NR
条形码
8013406131065
1 NR
23x12.5x10 [cm]
1,635 [g]
| 问题： | How many monitors can an ELVOX 6680 power supply support? |
|---|---|
| 回答： | A 6680 power supply can support up to two Vimar monitors with video door entry modules. For a greater number of monitors, an additional ELVOX part no. 6582 power supply must be installed, which can support another two monitors. |
