30406
Wiring devices / Traditional wiring devices / LINEA / Devices

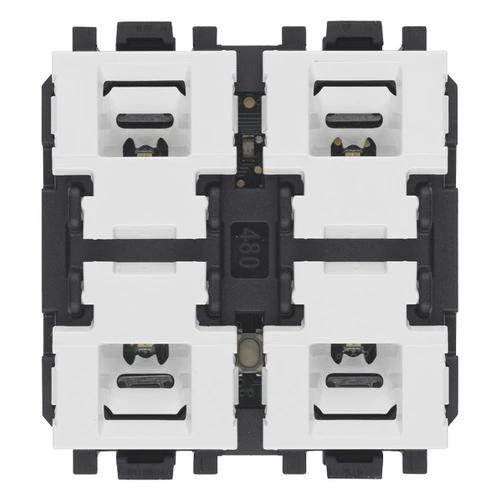

1P NO 24V 4-button device 2M
Control device with four push buttons 1P NO 24 VDC 50 mA max., to be completed with interchangeable half-button caps, lightable - 2 modules
产品状态
3 - Active
您可能也感兴趣
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Push button
Push button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Model
Other
Other
Method of operation
Push button
Push button
Number of contacts as normally closed contact
0
0
Number of contacts as normally open contact
4
4
Number of contacts as change-over contact
0
0
Number of revolving contacts
0
0
Contactless type
No
No
Number of rockers
2
2
Number of modules (module system)
200
200
Number of poles
1
1
Nominal voltage
24 V
24 V
Rated current
50,00 A
50,00 A
With lighting
No
No
With light source
No
No
With signal lamp
No
No
Feedback-signal contact
No
No
Connection type
Screwed terminal
Screwed terminal
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Black
Black
RAL-number (similar)
7024
7024
Transparent
No
No
Label space/information surface
No
No
Imprint
None
None
Suitable for degree of protection (IP)
IP40
IP40
Device width
44,80 mm
44,80 mm
Device height
49,50 mm
49,50 mm
Device depth
22,20 mm
22,20 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
最小订单数量: 10 NR
条形码
8007352685826
1 NR
6x4.5x5.4 [cm]
41.4 [g]
8007352685833
10 NR
23.5x12.5x6.5 [cm]
414 [g]
