Auxiliary emergency LED lamp 1M - 30398

Pdf
Vimar - 30398 - Auxiliary emergency LED lamp 1M
Vimar - 30398 - Auxiliary emergency LED lamp 1M

30398
Wiring devices / Traditional wiring devices / LINEA / Devices

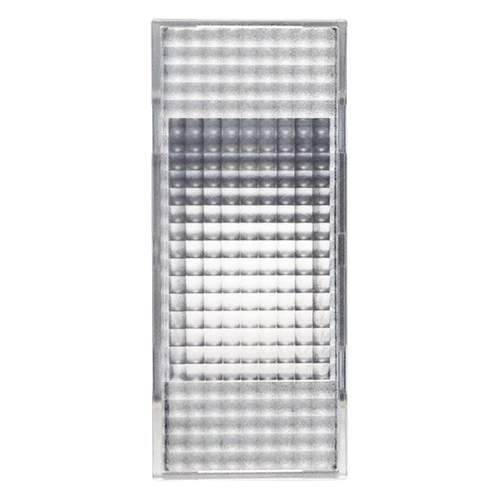

Auxiliary emergency LED lamp 1M
Auxiliary emergency lamp and controllable step marker lamp, high efficiency LEDs 100-240 V~ 50/60 Hz, can also be used as a courtesy light or a step marker lamp controlled by an external 1-way switch, non-replaceable rechargeable Li-ion battery, range of 2.5 hours, neutral

产品状态
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Function
Escape route lighting
Suitable for labelling type
Other
With pictogram
No
Monitoring equipment
None
With remote switch connection
Yes
With remote control
No
Power supply system
Peripheral (individual battery)
Battery quality
Lithium-ions
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Number of lighting heads
1
Housing material
Plastic
Housing colour
Colourless
Material cover
Without cover
Voltage type
AC
Nominal voltage
100,00 - 240,00 V
Type of control gear
Not required
Exchangeable control gear
No
Light distributor
Other
Degree of protection (IP)
IP40
Degree of protection (NEMA)
Other
Protection class
II
Max. system power
1,00 W
Nominal operation time
250,00 - 251,00 h
Width
22,20 mm
Height/depth
44,30 mm
Length
52,80 mm
Outer diameter
0 mm
Built-in width
22,20 mm
Built-in height/depth
38,60 mm
Built-in length
52,80 mm
Built-in diameter
0 mm
Type of wiring
Ending
Number of poles
0
Conductor cross section
250
Connection type
Screw connection

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352704817
1 NR
6x5.4x5.2 [cm]
43.2 [g]
Barcode Qty 10 NR
8007352704824
10 NR
23.5x12.5x6.5 [cm]
510.2 [g]
Barcode Qty 90 NR
8007352713307
90 NR
37.5x30x21 [cm]
5,000 [g]
