TV-RD-SAT single-conn.out.2outs white - 30302.01B

Pdf

Vimar - 30302.01B - TV-RD-SAT single-conn.out.2outs white

30302.01B
Wiring devices / Traditional wiring devices / LINEA / Devices

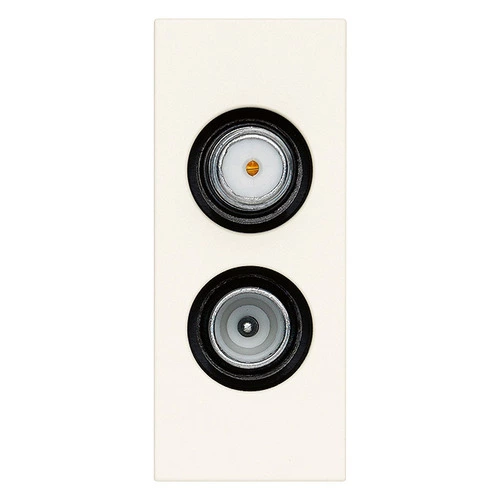

TV-RD-SAT single-conn.out.2outs white
TV-RD-SAT coaxial socket outlet, 5-2400 Mhz, single connection, demixed, 2 outputs with male connector (TV-RD) and female connector type F (SAT), 1 dB connection attenuation, white - 2 modules. Allows the passage of DC current and control signals (24 V 500 mA max)

产品状态
3 - Active

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
TWIN end socket

Type of socket outlet
TV/RD/SAT

Mounting method
Flush-mounted

Number of modules (module system)
1

Cover
None

Tap loss at 860 MHz
1,00 dB

Tap loss at 2150 MHz
1,00 dB

Number of outlets
2

Suitable for cable modem
No

TV frequency band
5 - 2.400 MHz

Suitable for remote power supply
Yes

Radio frequency band
5 - 2.400 MHz

SAT frequency band
5 - 2.400 MHz

Type of fastening
Snap mounting (engagement)

Colour
White

RAL-number (similar)
9016

Surface protection
Untreated

Surface finishing
Matt

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Anti-bacterial treatment
No

Degree of protection (IP)
IP20

Device width
2.230,00 mm

Device height
5.280,00 mm

Device depth
3.920,00 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352683617

1 NR

4.6x2.7x5.6 [cm]

54.4 [g]

8007352683624

10 NR

14.6x10x6.6 [cm]

594.6 [g]

8007352683631

120 NR

31x22x21 [cm]

7,400 [g]
