TV-RD-SAT single-conn.male out. canvas - 30300.01C

Pdf
Vimar - 30300.01C - TV-RD-SAT single-conn.male out. canvas
Vimar - 30300.01C - TV-RD-SAT single-conn.male out. canvas

30300.01C
Wiring devices / Traditional wiring devices / LINEA / Devices

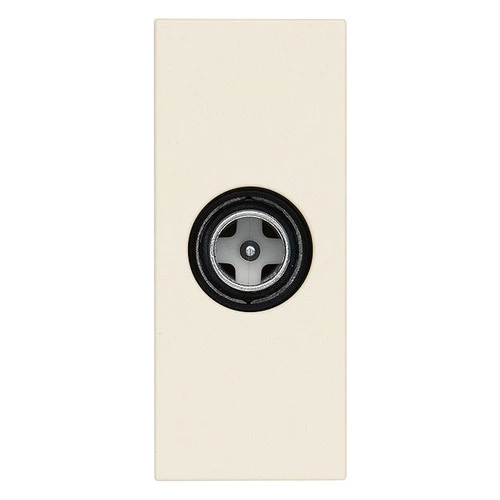

TV-RD-SAT single-conn.male out. canvas
TV-RD-SAT coaxial socket outlet, 5-2400 Mhz, single connection, with male connector, 1 dB connection attenuation, canvas. Allows the passage of DC current and control signals (24 V 500 mA max)

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Type of socket outlet
TV/RD/SAT
DAB+
No
Mounting method
Flush-mounted
Number of modules (module system)
1
Cover
None
Tap loss at 860 MHz
0,10 dB
Tap loss at 2150 MHz
0,20 dB
Number of outlets
1
Suitable for cable modem
No
TV frequency band
5 - 2.400 MHz
Suitable for remote power supply
Yes
Radio frequency band
5 - 2.400 MHz
SAT frequency band
5 - 2.400 MHz
Shielding efficiency class
Class A
Type of fastening
Snap mounting (engagement)
Colour
Beige
RAL-number (similar)
7032
Surface protection
Untreated
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Degree of protection (IP)
IP20
Device width
2.230,00 mm
Device height
5.280,00 mm
Device depth
3.210,00 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352691001
1 NR
3.6x2.7x5.6 [cm]
40.7 [g]
Barcode Qty 20 NR
8007352691018
20 NR
19.4x12.6x6.5 [cm]
885.7 [g]
Barcode Qty 200 NR
8007352691025
200 NR
40x33.5x15 [cm]
9,274 [g]
Barcode Qty 7,200 NR
8007352750104
7,200 NR
120x80x105 [cm]
333,864 [g]
