Class group
Domestic switching devices
Class
Socket outlet
Model

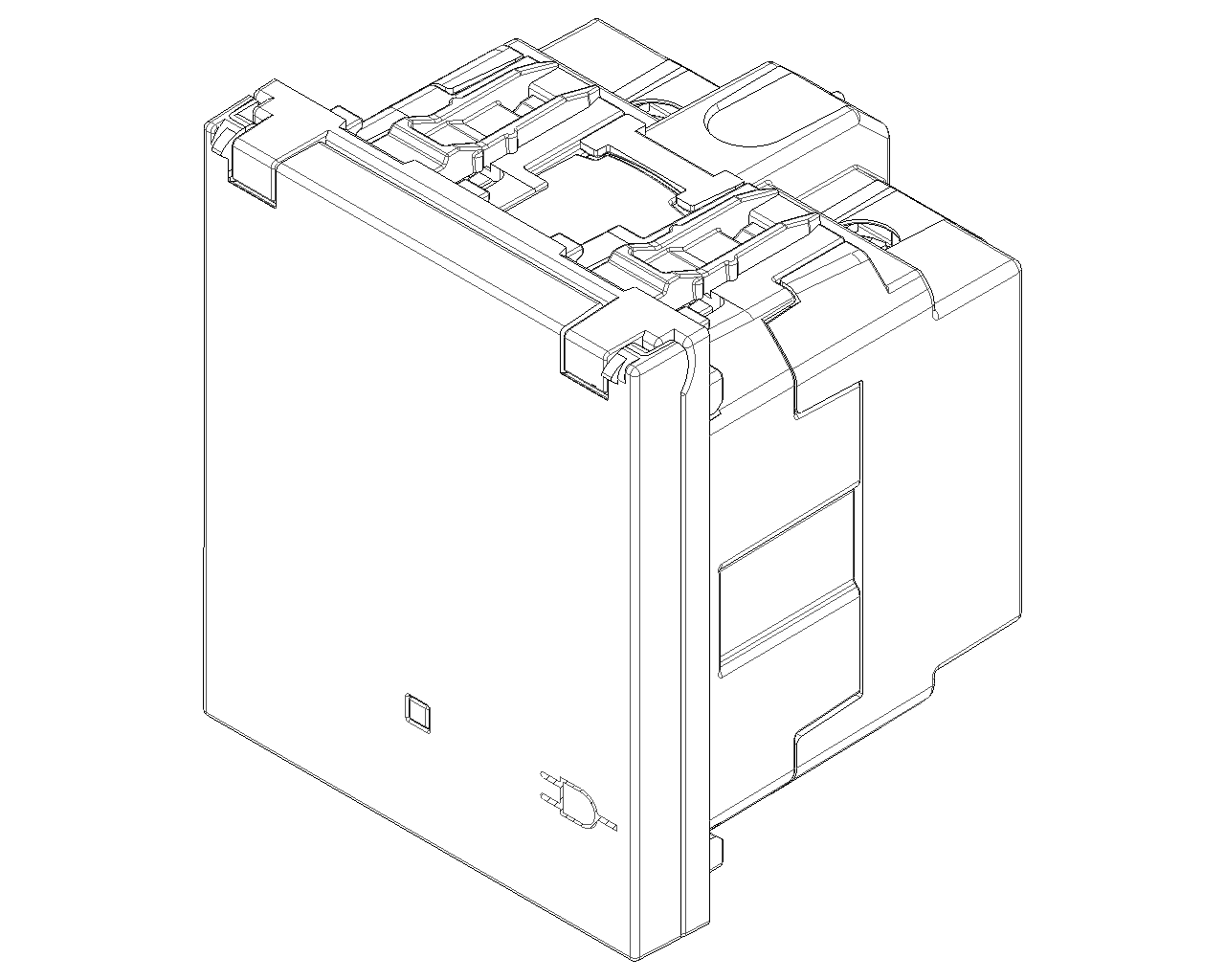

Socket outlet CEE 7/3 (type F)
Concurrently switching neutral conductor
No
Protective contact
Earthing clips
Number of active contacts (round)
2
Number of active contacts (flat)
0
Number of active contacts (square)
0
With signal lamp
No
Number of ports USB-A
0
Number of ports USB-C
0
Max. current rating of USB power supply
0 A
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
No
Colour
Beige
RAL-number (similar)
7032
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
Yes
Number of loop throughs
1
With on/off switch
No
Colour of switch operator
Other
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Rated fault current
0 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other

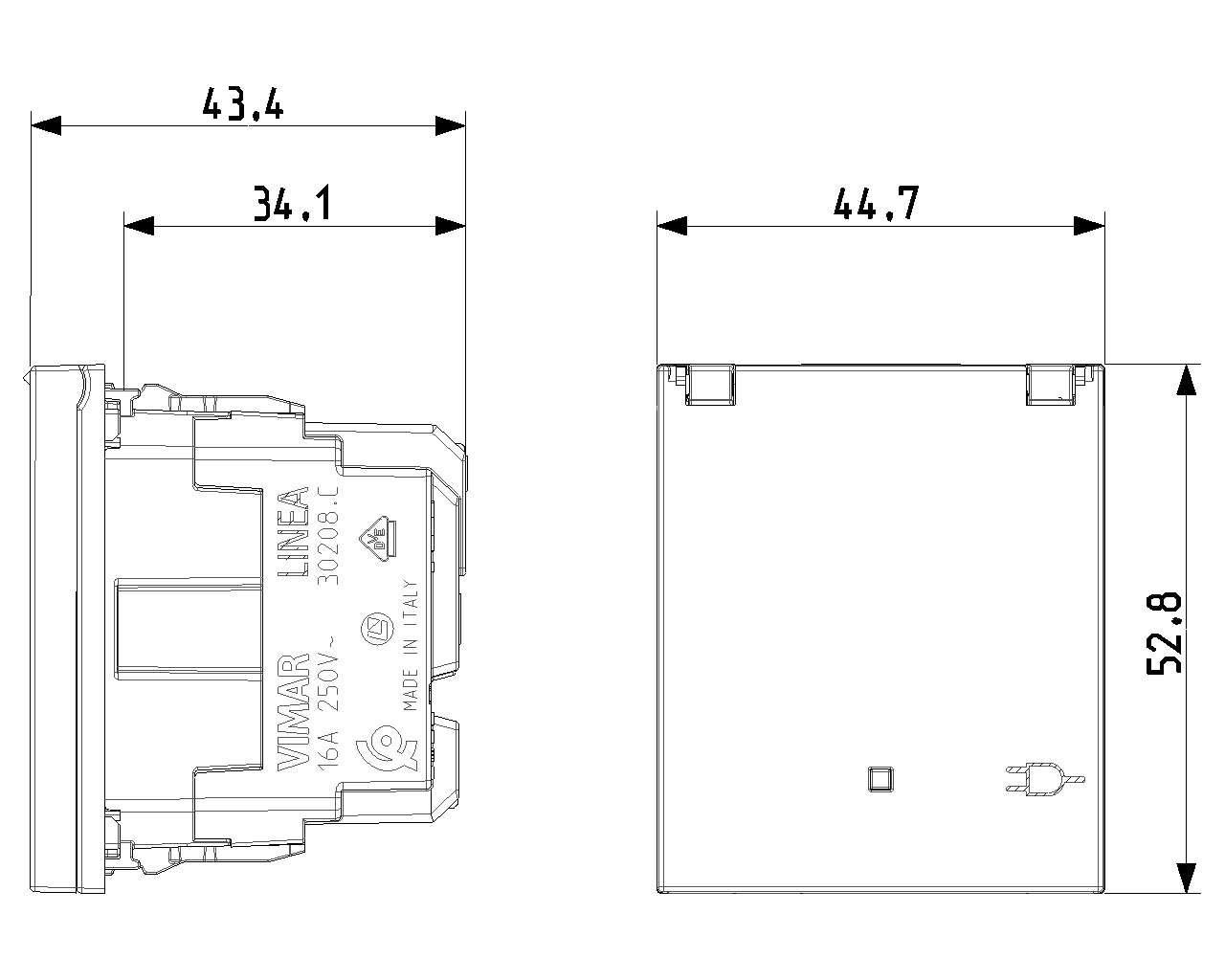

Device width
44,70 mm
Device height
52,80 mm
Device depth
42,70 mm
Min. depth of built-in installation box
38 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Compliant with UK Building Regulations Part M
No
