Class group
Domestic switching devices
Class

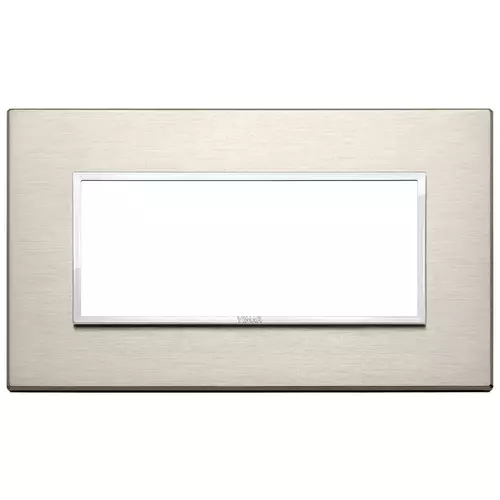

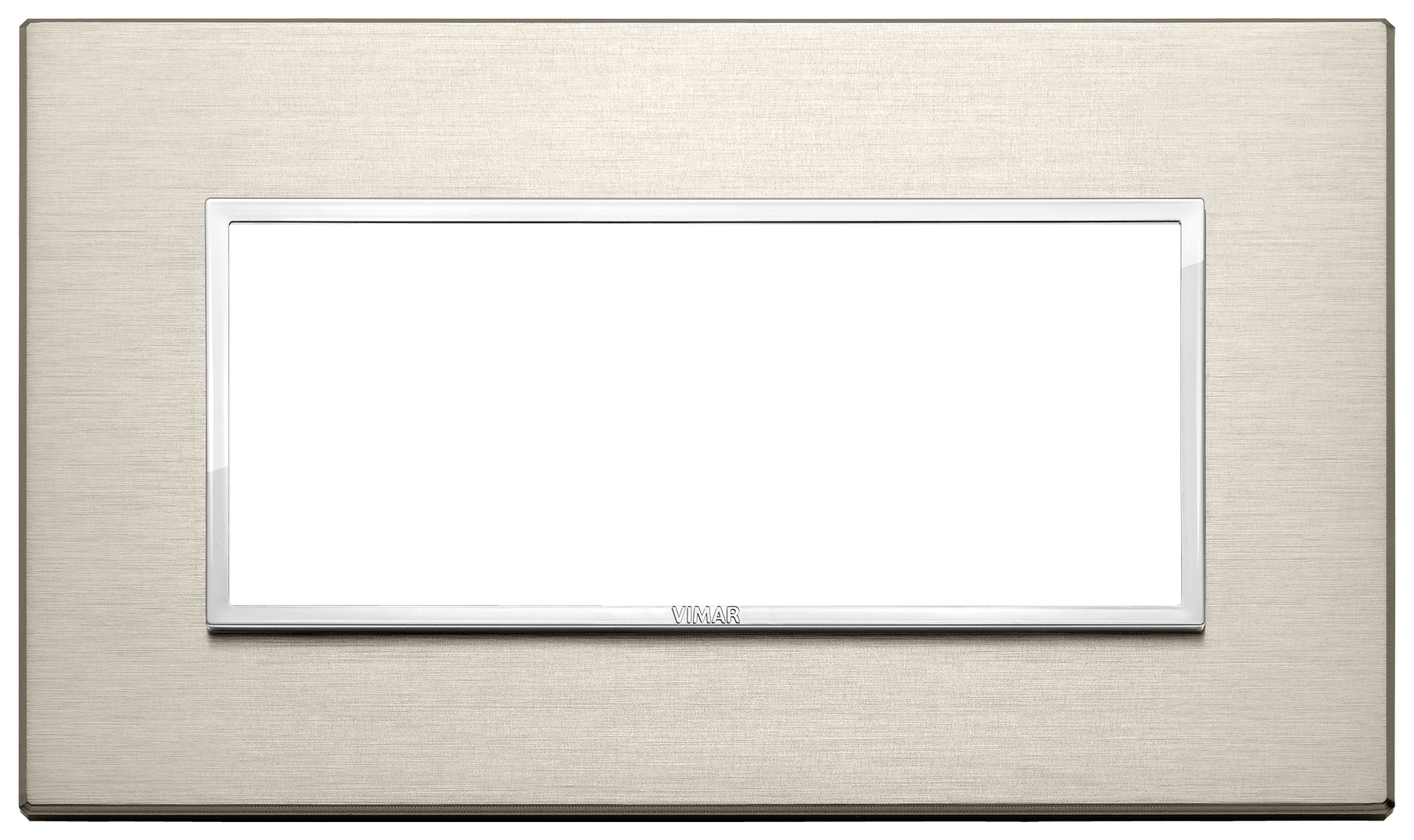

Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of units horizontal
5
Number of units vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
8008
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
162,30 mm
Height
94,70 mm
Depth
9,75 mm
Built-in width
162,30 mm
Built-in height
94,70 mm
Diameter bore hole (opening)
0 mm
