Vimar - 20679.C08 - Round plate 5MBS Bright titanium

20679.C08
Wiring devices / Traditional wiring devices / EIKON / Cover plates

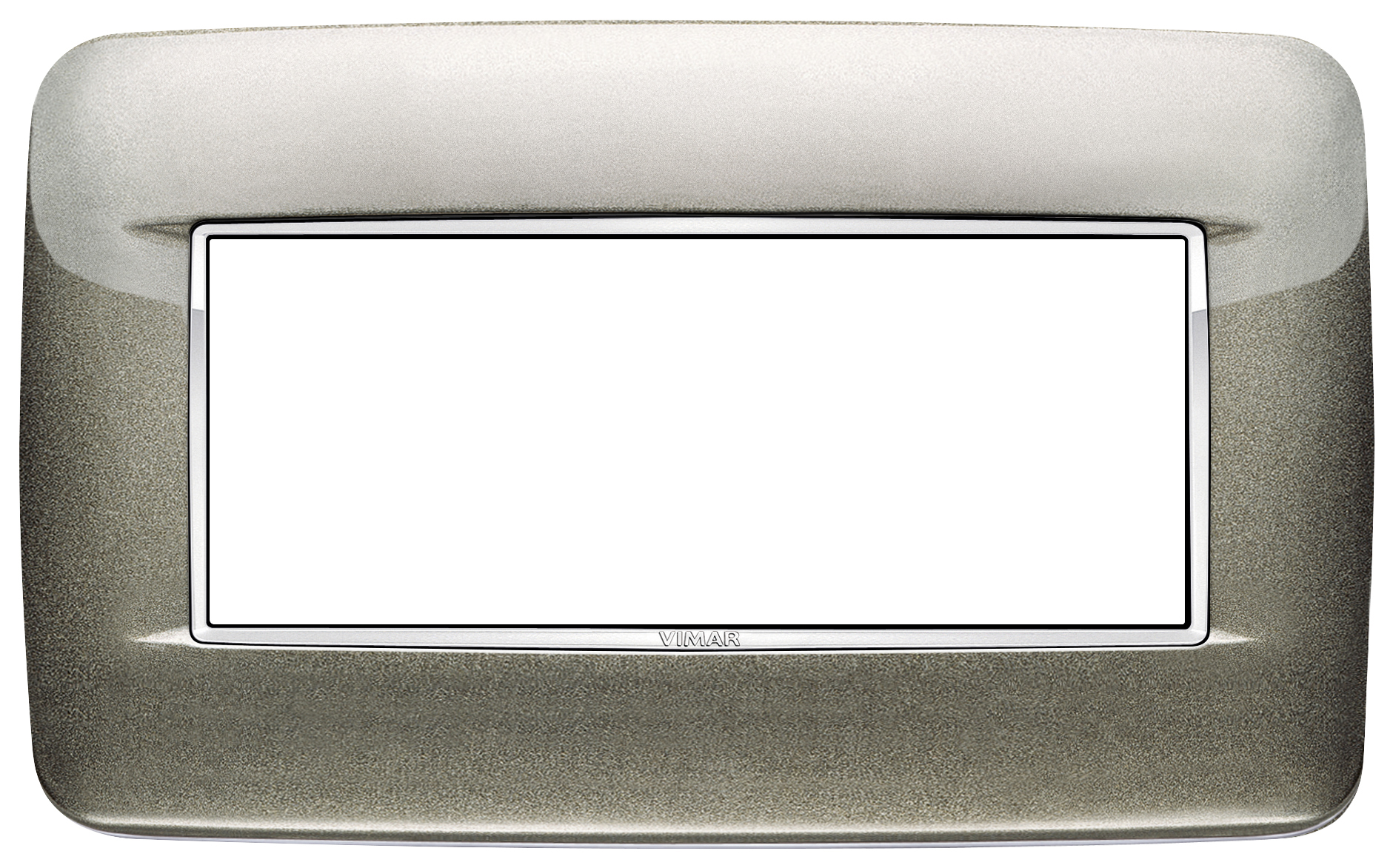

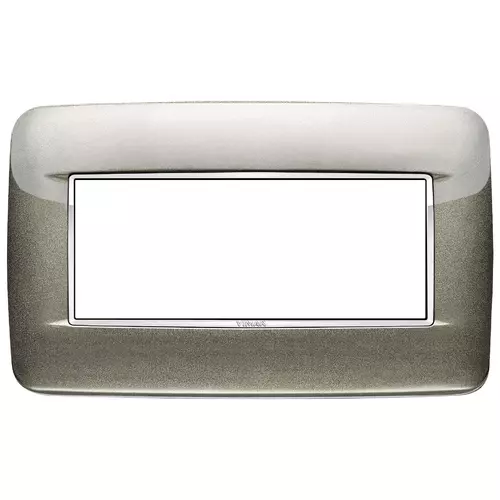

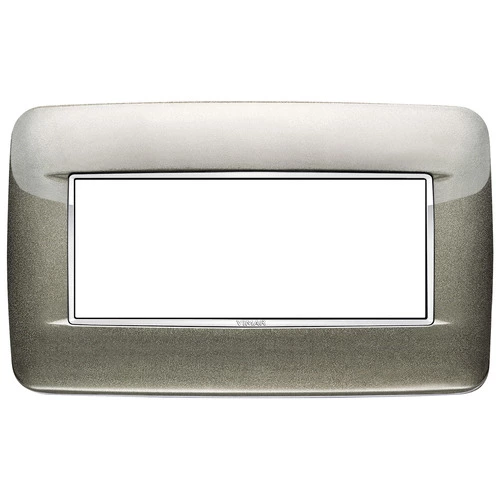

Round plate 5MBS Bright titanium
5-module Round cover plate for British, Bright varnished metal and chromed frame, metallic titanium

产品状态
2 - Will be discontinued

您可能也感兴趣

20609 - Frame 5M BS

图纸

PNG DXF

Class group
Domestic switching devices

Class
Cover frame for domestic switching devices

Number of units
5

Mounting direction
Horizontal and vertical

Number of units horizontal
5

Number of units vertical
1

Number of modules horizontal (module system)
5

Number of modules vertical (module system)
1

With mounting grid
Yes

Suitable for subfloor installation duct box
Yes

Suitable for wall duct
Yes

Suitable for built-in installation
Yes

Label space/information surface
Yes

Material
Metal

Material quality
Other

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Titanium

RAL-number (similar)
7013

Transparent
No

With hinged lid
No

Degree of protection (IP)
IP00

Type of fastening
Clamp mounting

Width
155,00 mm

Height
95,00 mm

Depth
9,00 mm

Built-in width
155,00 mm

Built-in height
95,00 mm

Diameter bore hole (opening)
0 mm

08. ASTA - UK

最小订单数量: 1 NR

条形码

8007352481398

1 NR

15.65x9.7x1.7 [cm]

136.7 [g]

8007352481404

5 NR

16.3x9.4x10.5 [cm]

737.3 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
