Red prismatic indicator unit - 20387.R

Pdf
Vimar - 20387.R - Red prismatic indicator unit
Vimar - 20387.R - Red prismatic indicator unit

20387.R
Wiring devices / Traditional wiring devices / EIKON / Devices

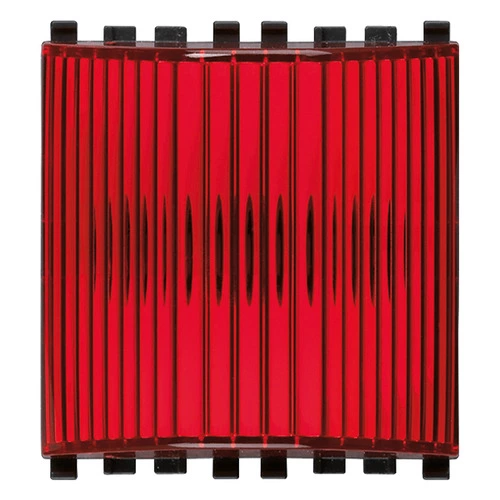

Red prismatic indicator unit
Prismatic indicator unit for lamps 230 V~ 3 W max, 14770, 14771, 14776 and 14777, red diffuser - 2 modules. Lamp not provided

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Lamp holder
E10
With light source
No
Lamp type
Incandescent lamp
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
3001
Transparent
No
Colour light source
Red
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 V
Max. lamp power
3 W

00. CE Marking - EU

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352265288
1 NR
6x5.4x5.3 [cm]
43.2 [g]
Barcode Qty 5 NR
8007352265295
5 NR
17.2x13.1x6 [cm]
279.27 [g]
