20083
Wiring devices / Traditional wiring devices / EIKON / Devices

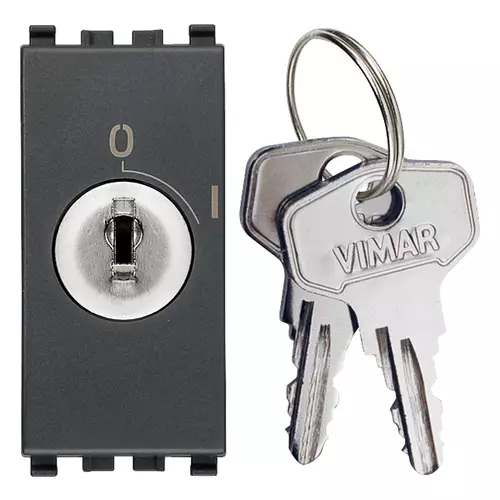

2P 16(3)A 1-way switch +key grey
Independent mounting 2P 16(3) A 250 V~ key-operated 1-way switch, with removable key in both positions, grey. To be installed with the appropriate accessories from the Eikon series. Protection degree: IP20, Degree of pollution: II, Overvoltage category: III, for conductors from 1.5 mm2 to 4 mm2, complete circuit disconnection, Tracking index: PTI250, Glow wire 850°C
产品状态
3 - Active

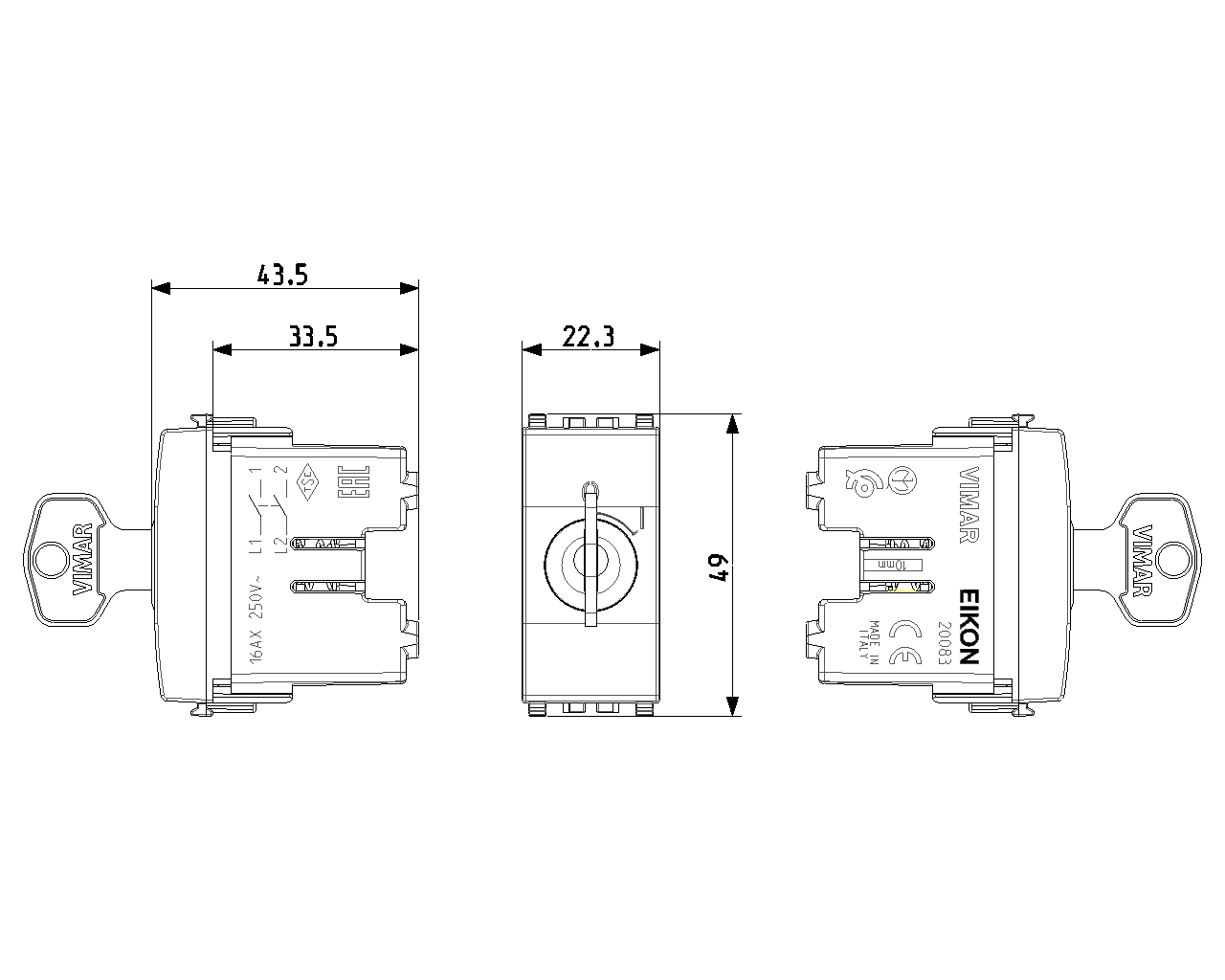

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
2-pole switch
2-pole switch
Method of operation
Key
Key
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
0
0
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Grey
Grey
RAL-number (similar)
7024
7024
Label space/information surface
Yes
Yes
Illumination
No
No
Function lighting
Other
Other
Type of lighting
Other
Other
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
250 V
250 V
Rated current
16,00 A
16,00 A
Feedback-signal contact
No
No
Connection type
Screwed terminal
Screwed terminal
Washing machine switch
Yes
Yes
Device width
22,30 mm
22,30 mm
Device height
49,00 mm
49,00 mm
Device depth
43,50 mm
43,50 mm
Built-in depth
33,50 mm
33,50 mm
00. CE Marking - EU
14. TSE - Turkey
20. IQC - Argentina
29. QCERT - Colombia
31. TISI - Thailand
37. Marking - Morocco
最小订单数量: 10 NR
条形码
8007352253407
1 NR
5.1x2.8x5.3 [cm]
53.13 [g]
8007352253414
10 NR
14.4x11.6x6 [cm]
575.2 [g]
