2P 16AX 1-way-switch +key in OFF grey

Pdf

Vimar - 20082 - 2P 16AX 1-way-switch +key in OFF grey

20082
Wiring devices / Traditional wiring devices / EIKON / Devices

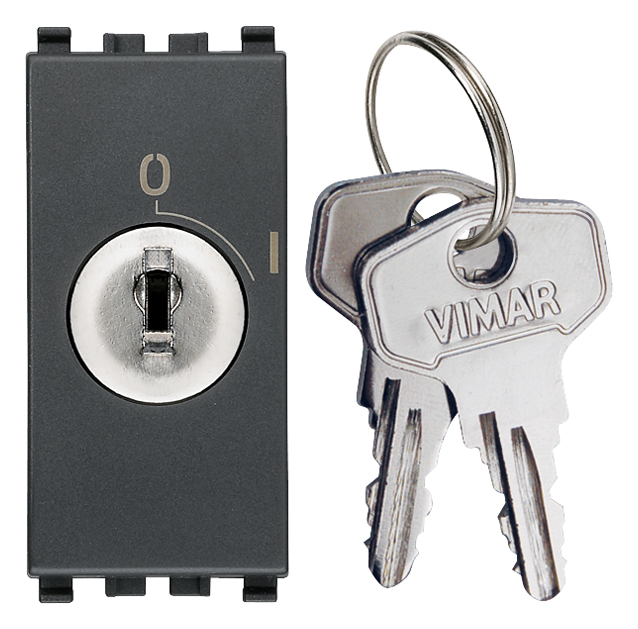

2P 16AX 1-way-switch +key in OFF grey
2P 16 AX 250 V~ key-operated 1-way switch, key removable in OFF position only, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
2 - Will be discontinued

图纸

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
2-pole switch

Method of operation
Key

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
0

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Label space/information surface
Yes

Illumination
No

Function lighting
Other

Type of lighting
Other

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
Yes

Device width
22,30 mm

Device height
49,00 mm

Device depth
43,50 mm

Built-in depth
33,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352253360

1 NR

5.1x2.8x5.3 [cm]

52.93 [g]

8007352253377

10 NR

14.4x11.6x6 [cm]

572.8 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
