Vimar - 20062 - Two interlocked NO+NO 10A pushes grey

20062
Wiring devices / Traditional wiring devices / EIKON / Devices

Two interlocked NO+NO 10A pushes grey

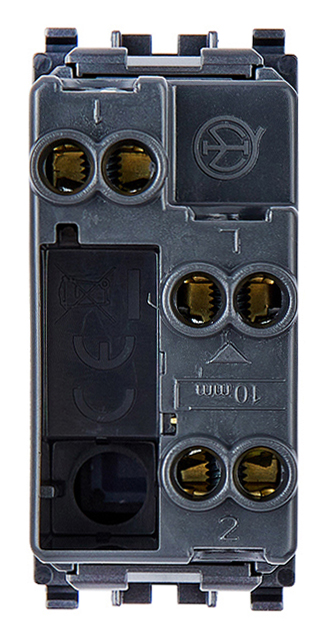

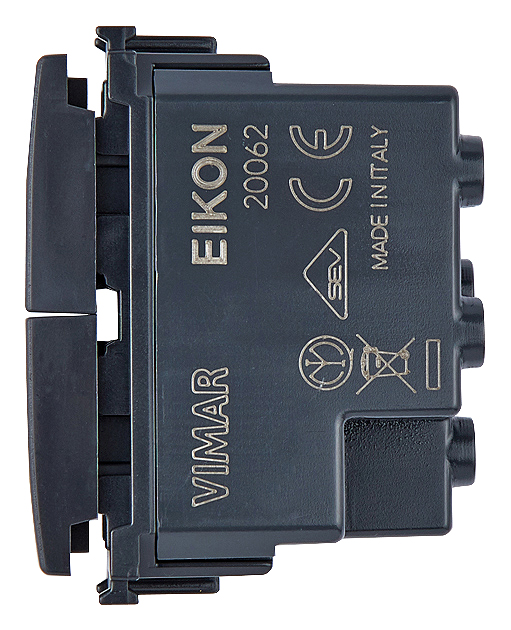

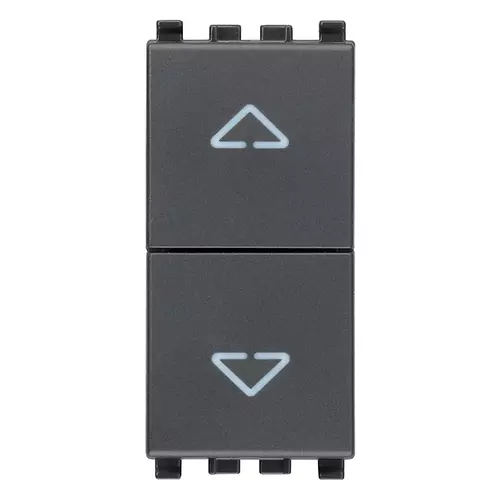

Two interlocked push buttons, 1P NO + 1P NO 10 A 250 V~, with directional arrows, grey

产品状态
3 - Active

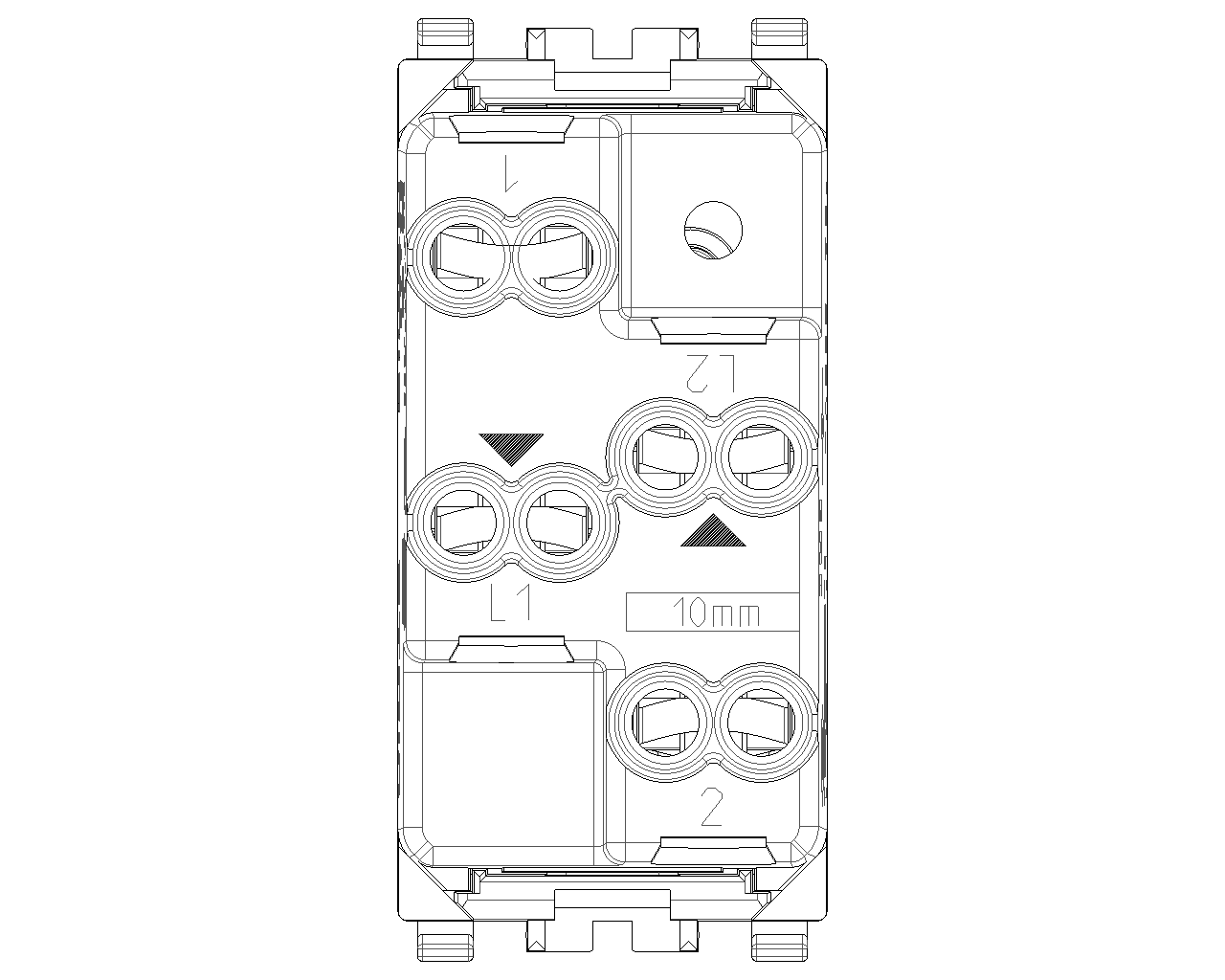

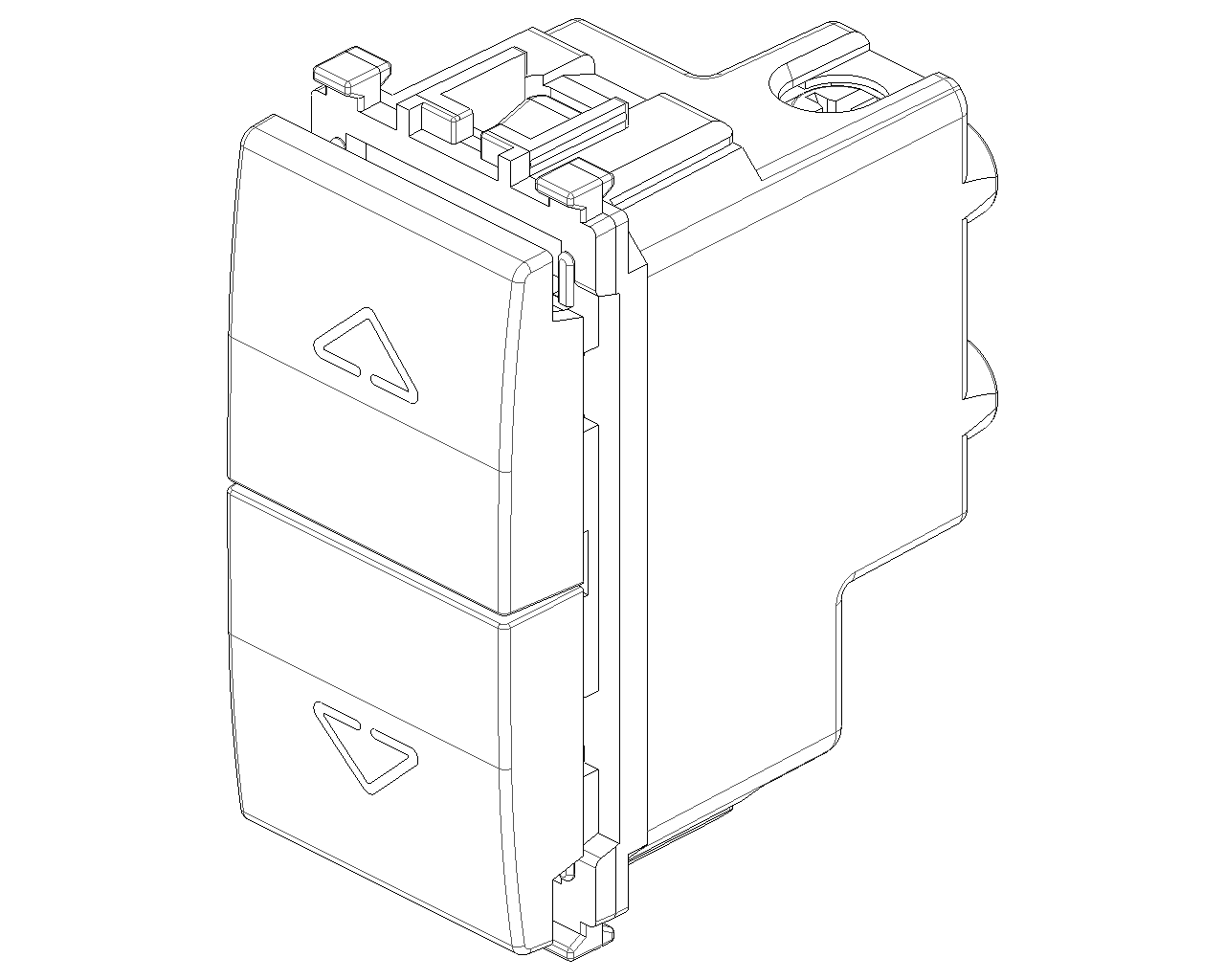

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

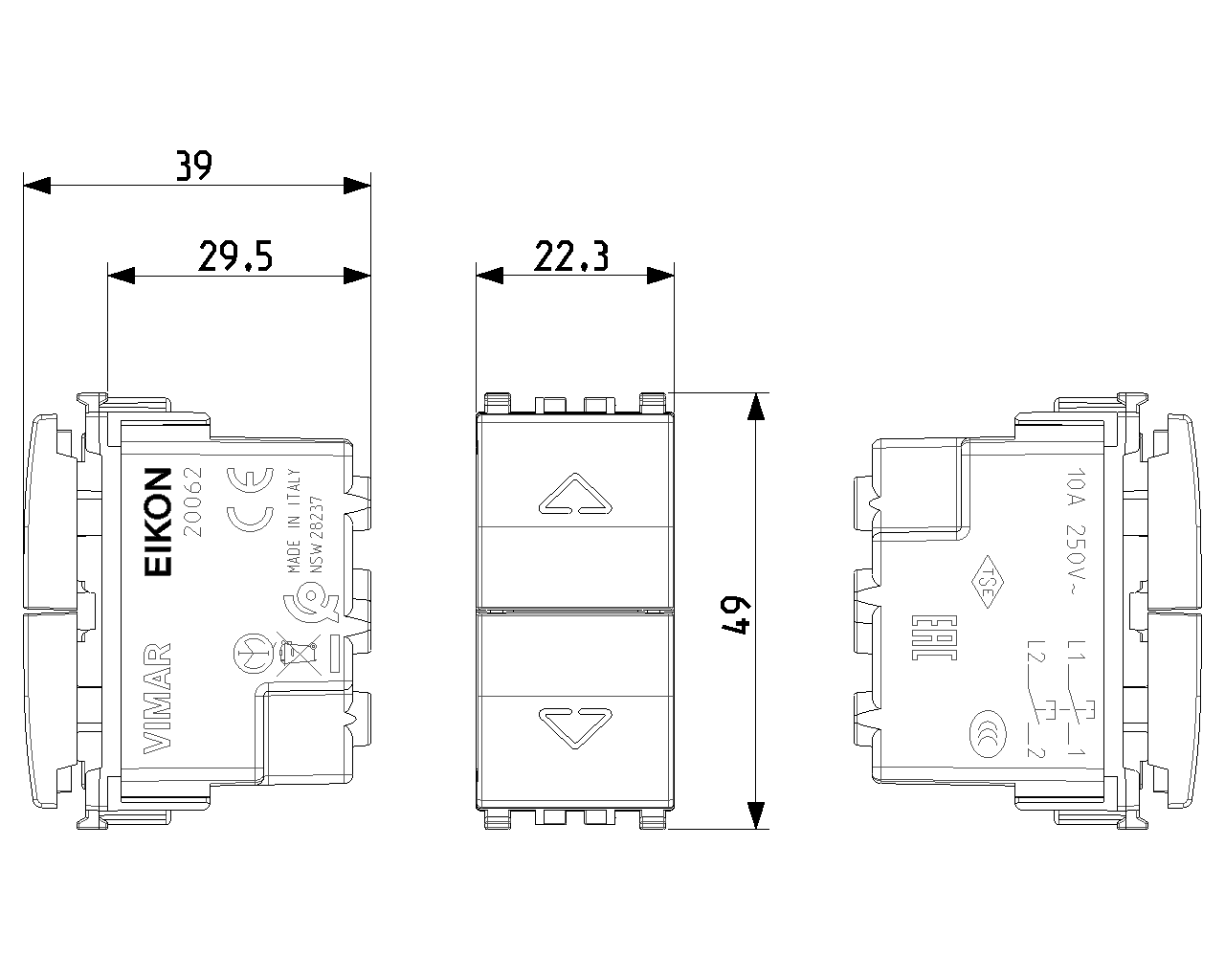

Device width
22,30 mm

Device height
49,00 mm

Device depth
39,00 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352253223

1 NR

4.1x2.8x5.3 [cm]

33.6 [g]

8007352253230

10 NR

14.4x9x6 [cm]

370.47 [g]

8007352634985

160 NR

57.5x22.5x30 [cm]

6,448 [g]
