Vimar - 20058 - Two independent NO+NC 10A pushes grey

20058
Wiring devices / Traditional wiring devices / EIKON / Devices

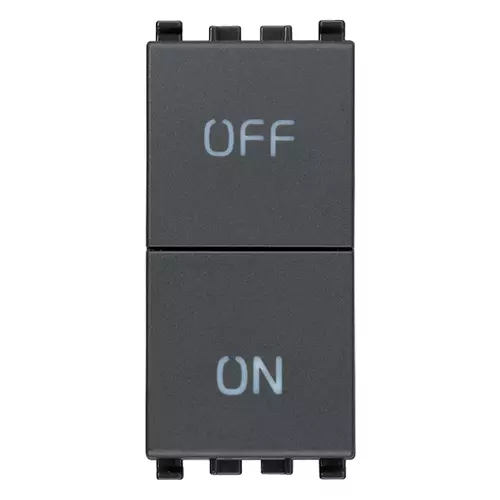

Two independent NO+NC 10A pushes grey
Two independent push buttons, 1P NO + 1P NC 10 A 250 V~, ON and OFF symbols, grey

产品状态
3 - Active

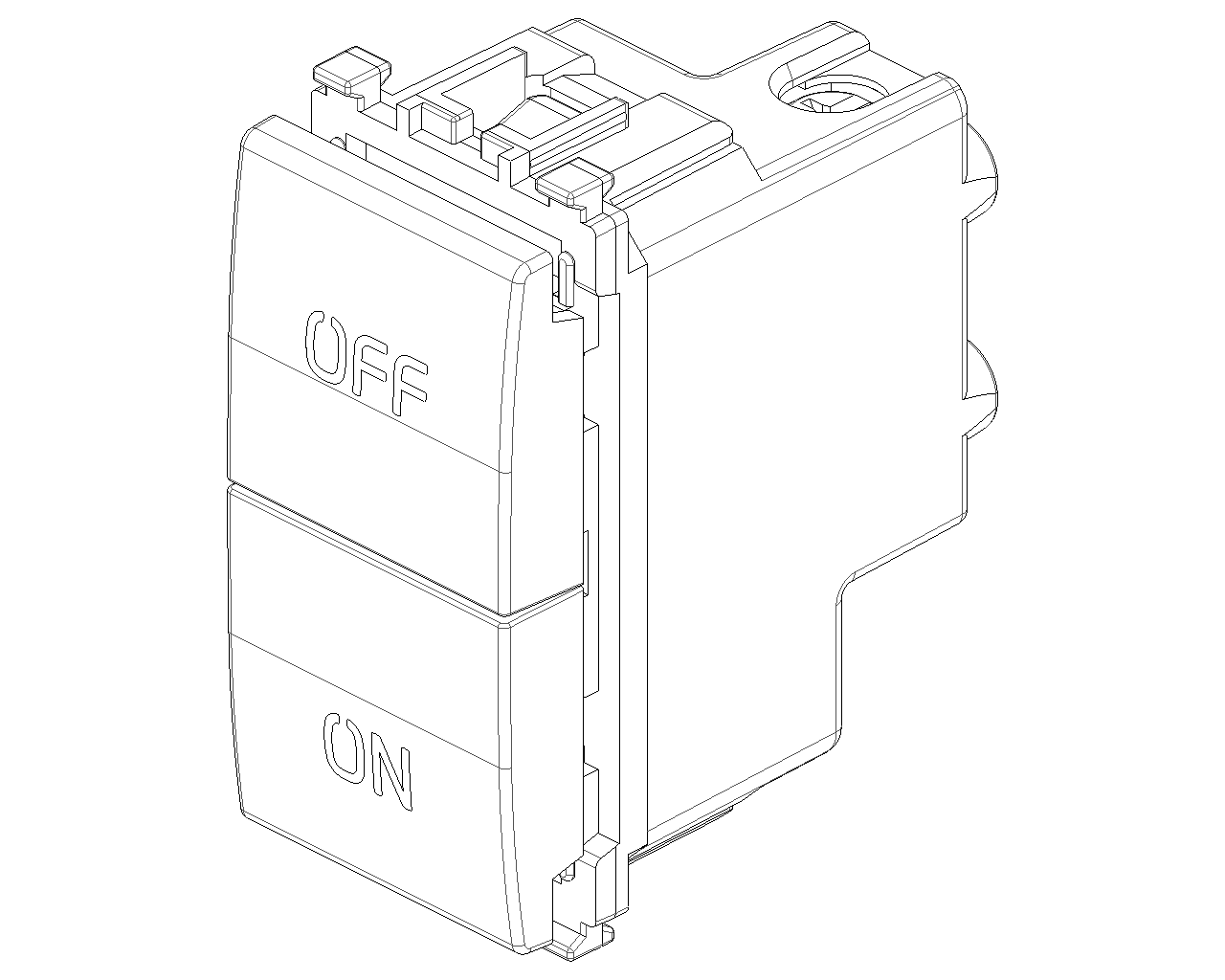

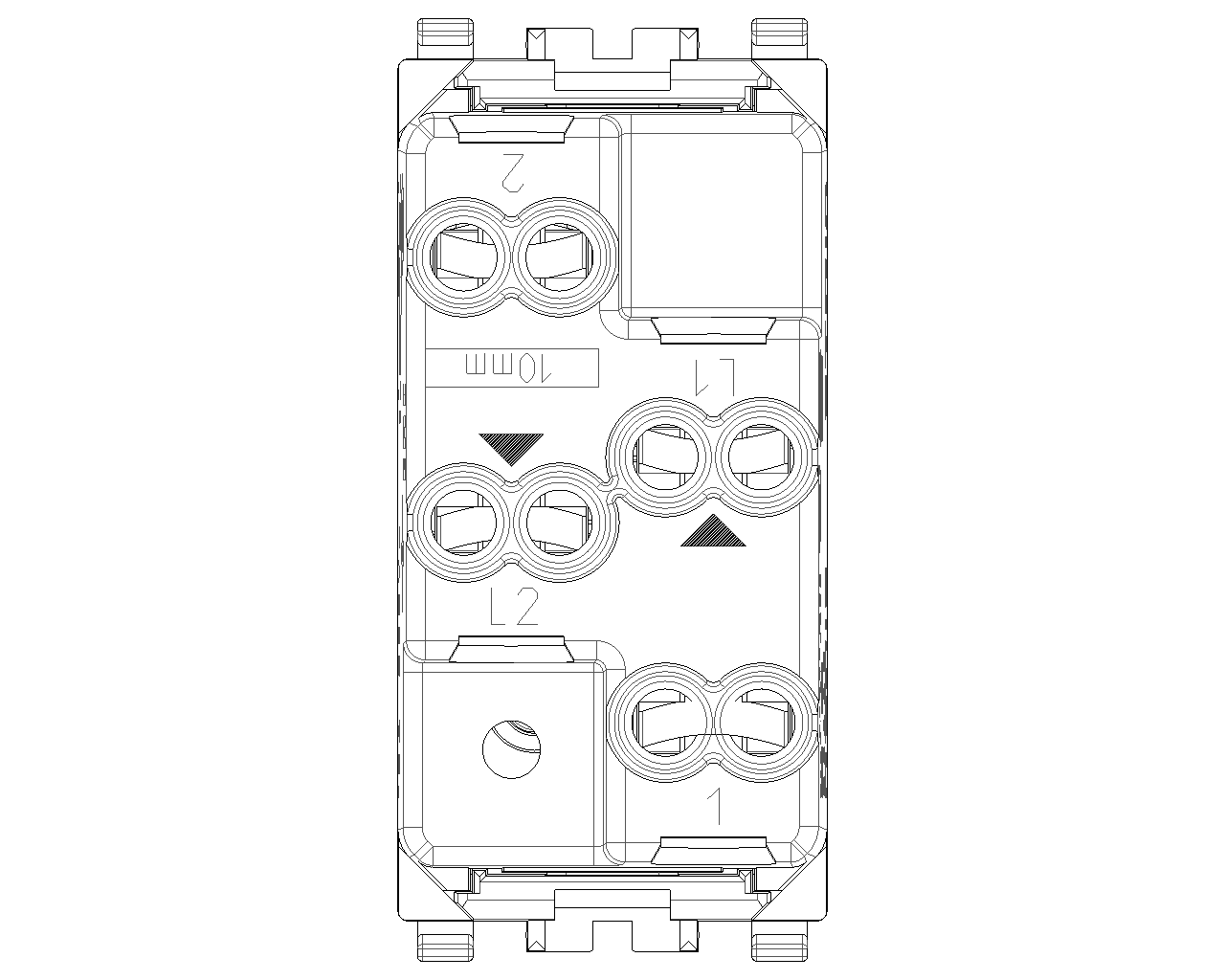

图纸

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
2

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

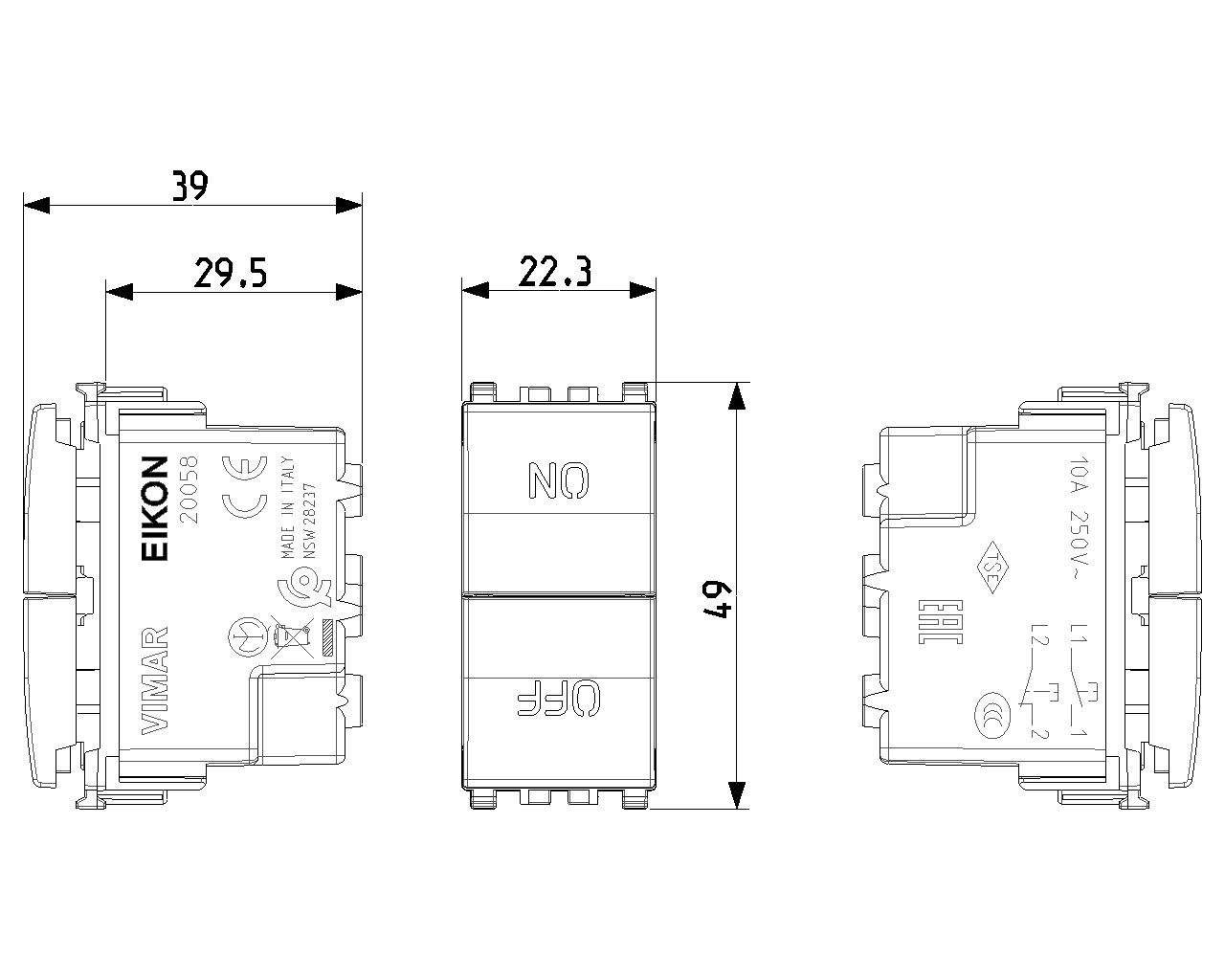

Device width
22,30 mm

Device height
49,00 mm

Device depth
29,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352253186

1 NR

4.1x2.8x5.3 [cm]

33.47 [g]

8007352253193

10 NR

14.4x9x6 [cm]

370.87 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
