1P NO 10A cord-operated push button grey - 20052

Pdf

Vimar - 20052 - 1P NO 10A cord-operated push button grey

20052
Wiring devices / Traditional wiring devices / EIKON / Devices

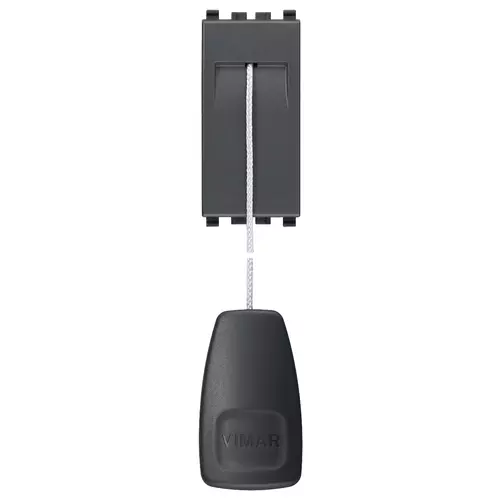

1P NO 10A cord-operated push button grey
1P NO 10 A 250 V~ cord-operated push button, with 1,5 m cord, grey

产品状态
3 - Active

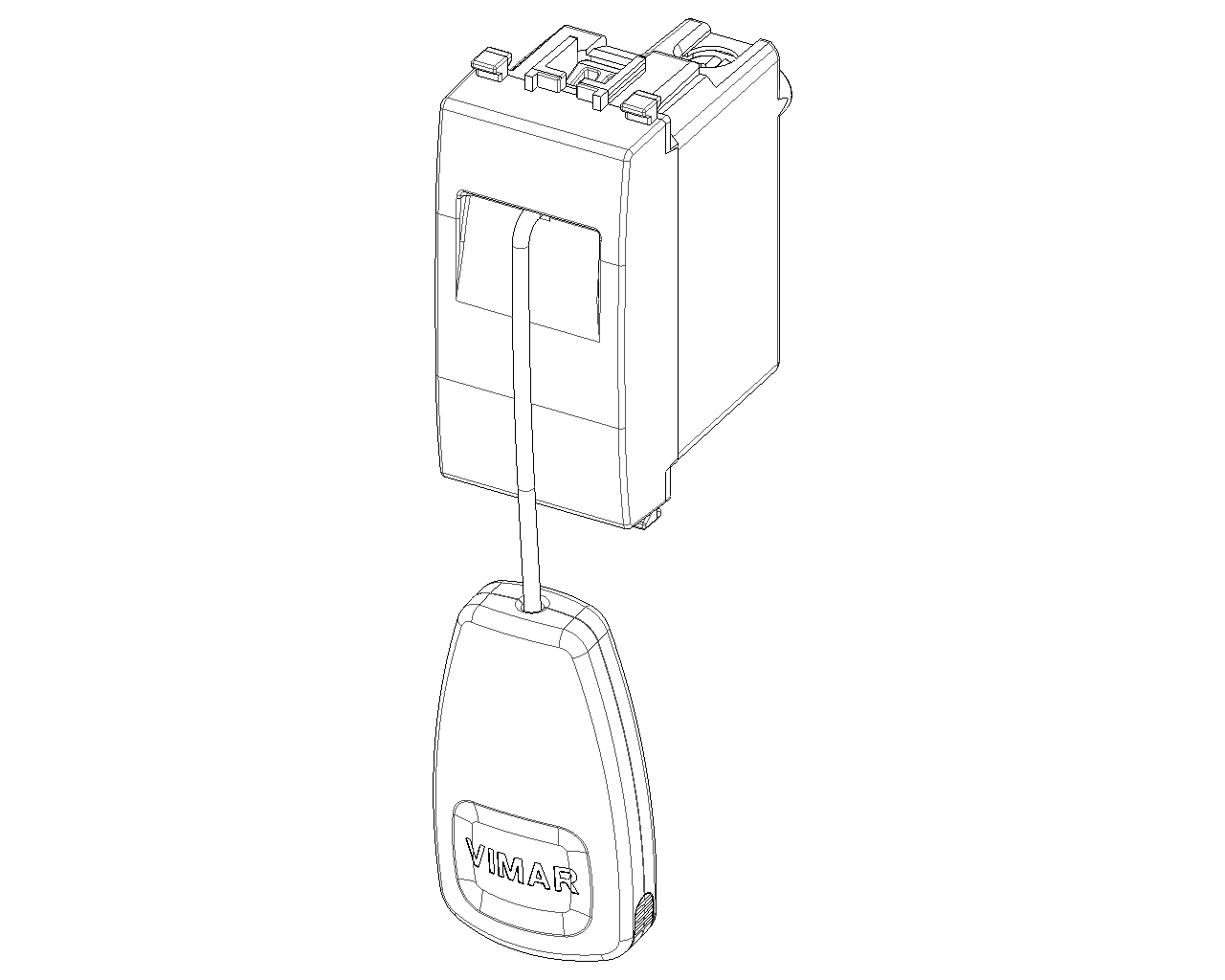

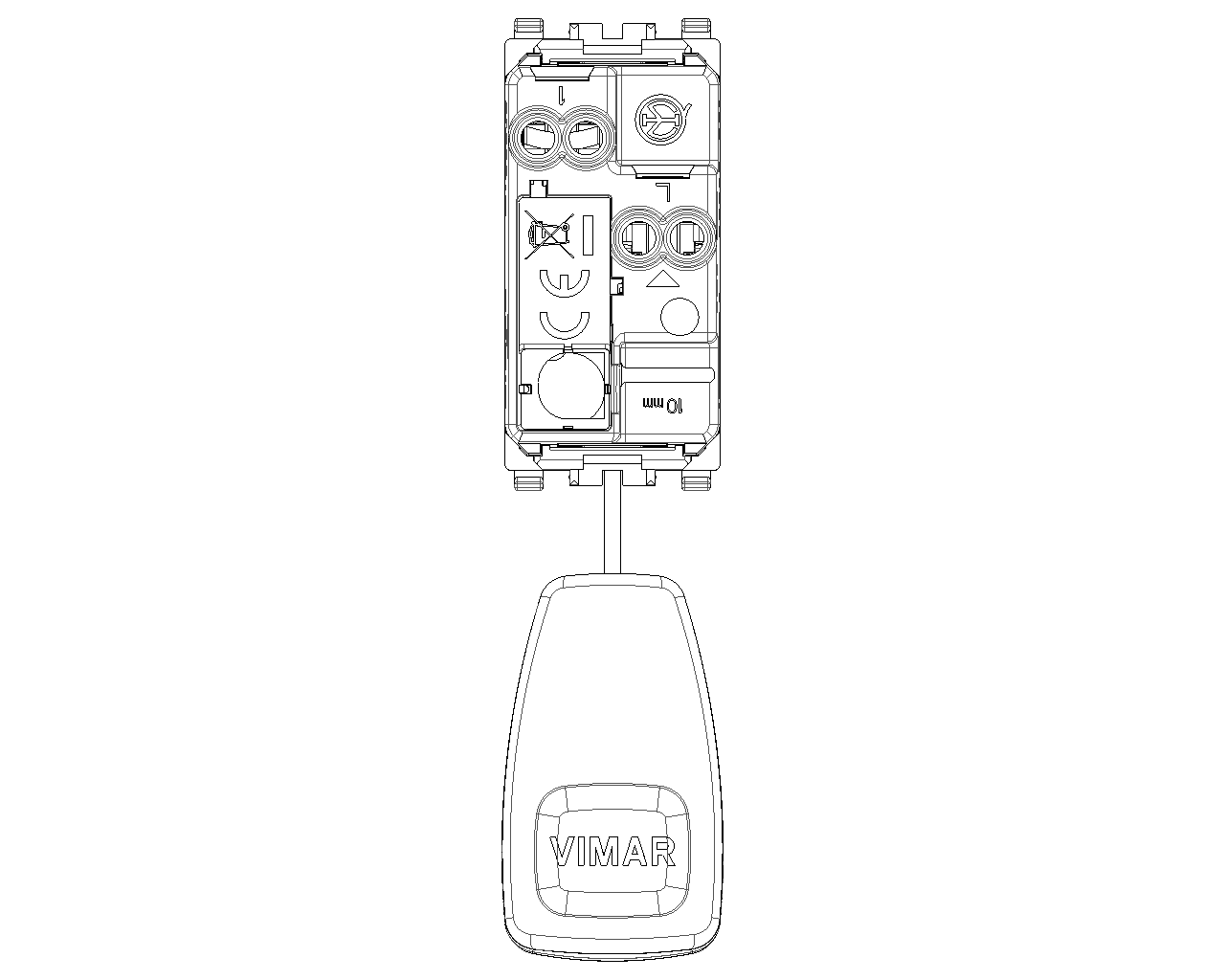

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
0

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
38,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352253100

1 NR

6x2.8x5.3 [cm]

32.6 [g]

8007352253117

20 NR

28.1x13.1x6 [cm]

729.87 [g]

8007352648609

240 NR

38.5x29x30 [cm]

9,216 [g]
