19612
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

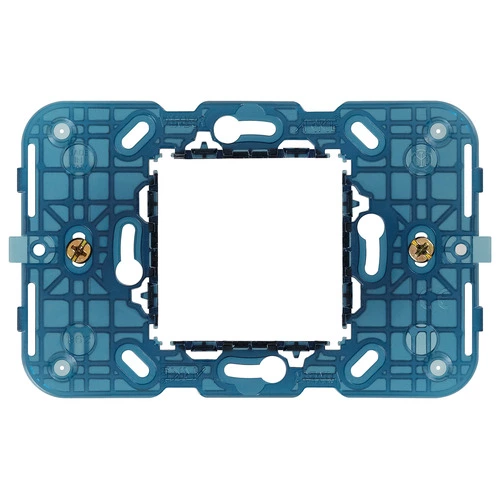

Frame 2centralM +screws
2-central-module mounting frame, with screws, for 3-module mounting frame and 60 mm fixing centres or 56x56 mm mounting box, for horizontal or vertical installation
- The transparency helps the installation and the wiring of devices
- The honeycomb structure gives structural strength
- The slots in the corners enable fixing to the panel
- The hooking teeth encourage fixing in series for the installation of multiple modules
- Thanks to the central slots, the support can be fixed onto the wall level
产品状态
3 - Active
您可能也感兴趣
Class group
Domestic switching devices
Domestic switching devices
Class
Holder for modular domestic switching devices
Holder for modular domestic switching devices
Model
Flush-mounted
Flush-mounted
Mounting method
Mounting with screw
Mounting with screw
Mounting method of the module inserts
Front side
Front side
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
1
1
With built-in installation box
No
No
With screws
Yes
Yes
Suitable for mounting in round junction box 60 mm
No
No
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
No
No
Suitable for wall duct
No
No
Suitable for mounting on DIN-rail 35 mm
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
最小订单数量: 20 NR
条形码
8007352433502
1 NR
11.8x7.3x2.1 [cm]
23.2 [g]
8007352433526
20 NR
24.4x13.9x11.9 [cm]
563.2 [g]
8007352644380
120 NR
38.5x29.5x25 [cm]
3,832 [g]
