2P 10A 2-way push button grey - 19061

Pdf
Vimar - 19061 - 2P 10A 2-way push button grey
Vimar - 19061 - 2P 10A 2-way push button grey

19061
Wiring devices / Traditional wiring devices / ARKÉ / Devices

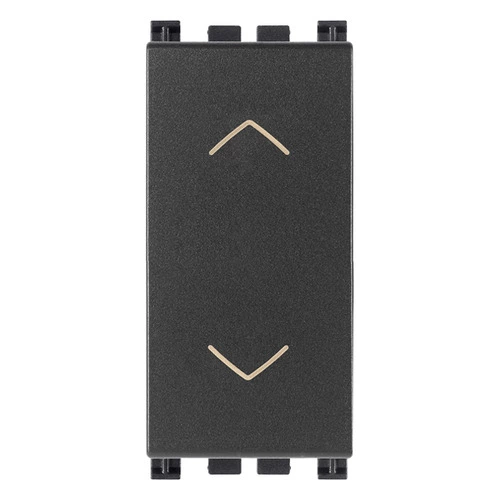

2P 10A 2-way push button grey
2P 10 A 250 V~ 2-way push button (6 terminals) with directional arrows and central OFF position, grey

产品状态
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
44,20 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352571310
1 NR
5.1x2.8x5.3 [cm]
42.7 [g]
Barcode Qty 10 NR
8007352571327
10 NR
14.4x11.6x6 [cm]
470.6 [g]
