Button 2M customizable Metal - 19032.M

Pdf
Vimar - 19032.M - Button 2M customizable Metal
Vimar - 19032.M - Button 2M customizable Metal

19032.M
Wiring devices / Traditional wiring devices / ARKÉ / Buttons

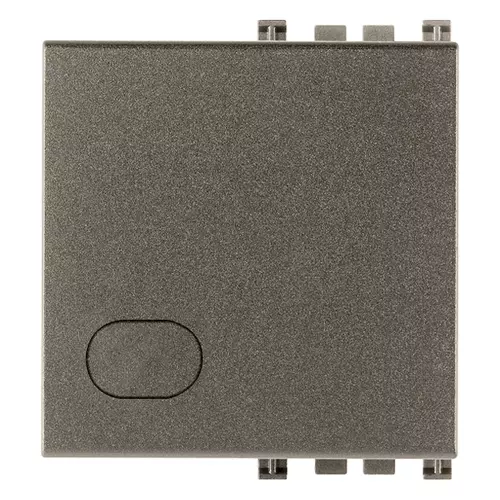

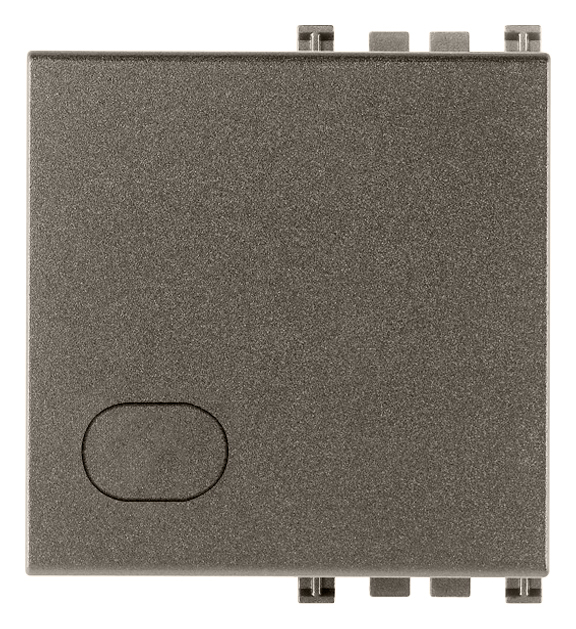

Button 2M customizable Metal
Interchangeable 2-module button, customizable on request with lightable symbol, Metal

产品状态
2 - Will be discontinued

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
Label space
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
1.130,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352600003
1 NR
4.4x4.9x2.2 [cm]
9 [g]
Barcode Qty 2 NR
8007352600010
2 NR
5.1x2.8x5.3 [cm]
22 [g]
Barcode Qty 10 NR
8007352600027
10 NR
14.4x11.6x6 [cm]
141 [g]
