Vimar - 19004 - 1P 10AX 2-way switch grey

19004
Wiring devices / Traditional wiring devices / ARKÉ / Devices

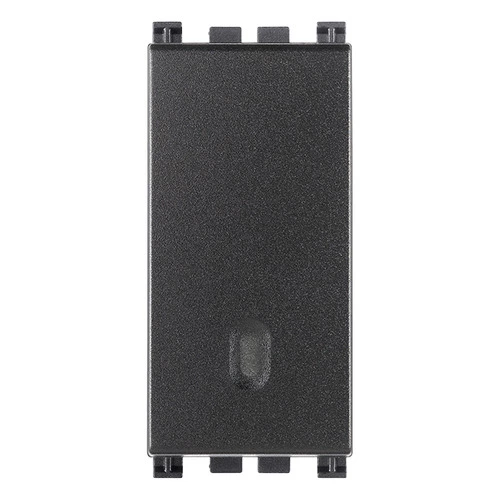

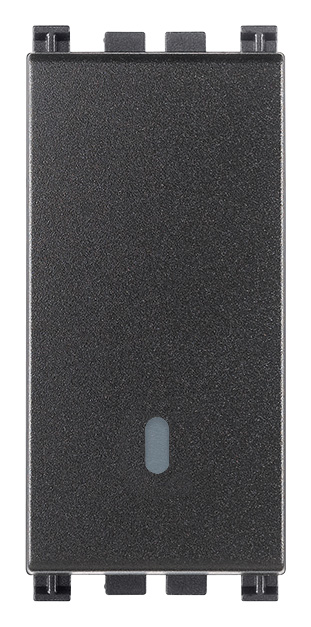

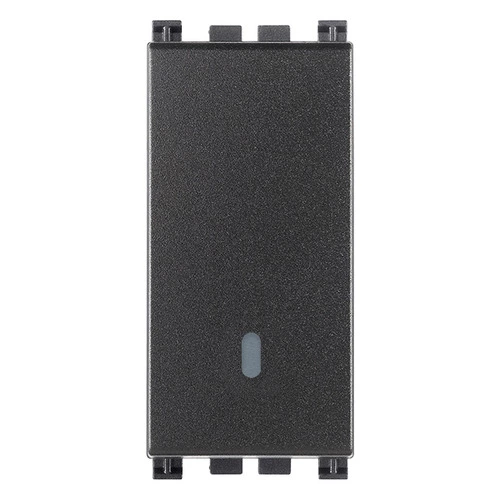

1P 10AX 2-way switch grey
1P 10 AX 250 V~ 2-way switch, lightable, replaceable button, grey. Max 100 W for lamps with built-in power unit(IEC 60669-1:2017)

产品状态
3 - Active

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
10,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

37. Marking - Morocco

50. Product Environm. Profile

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 50 NR

条形码

8007352684829

1 NR

4.1x2.8x5.3 [cm]

28.2 [g]

8007352684836

50 NR

21.4x11.6x14.2 [cm]

1,497 [g]

8007352684843

500 NR

57.5x22.5x30 [cm]

15,940 [g]

8007352704923

10,500 NR

80x120x103 [cm]

334,740 [g]
