1P 16AX 1-way switch 2M Metal - 19001.2.M

Pdf

Vimar - 19001.2.M - 1P 16AX 1-way switch 2M Metal

19001.2.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

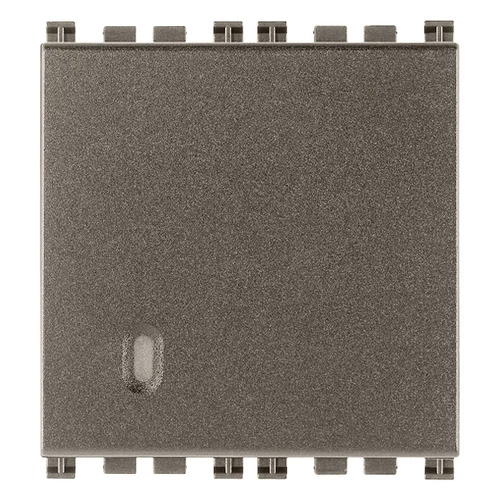

1P 16AX 1-way switch 2M Metal
1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, Metal - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
2 - Will be discontinued

其他可选产品

19000.2.M - 1P 10AX 1-way switch 2M Metal

视频

Arké lives in your time

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Off switch 1-pole

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
9007

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
44,80 mm

Device height
49,00 mm

Device depth
36,80 mm

Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352593916

1 NR

5.1x4.3x5.3 [cm]

32.8 [g]

8007352593923

20 NR

26.9x11.6x9 [cm]

732.7 [g]

8007352648098

240 NR

38x28.5x35.5 [cm]

9,324 [g]
