16895
System infrastructure / Enclosures and control units / Connector block boxes / Installation accessories

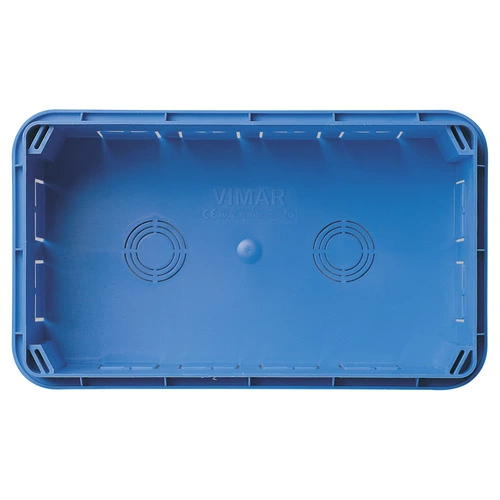

Flush mounting box
Flush mounting box, light blue. Dimensions: 225,5x127,5x70 mm
产品状态
2 - Will be discontinued
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Flush-mounted
Shape
Rectangular
Rectangular
Construction type
Device connection box (round/square)
Device connection box (round/square)
Model
Other
Other
Provided with revolving ring
No
No
Couplable
No
No
Equipped with
None
None
Diameter
32 mm
32 mm
Length
239,00 mm
239,00 mm
Width
140,00 mm
140,00 mm
Depth
0,00 - 70,00 mm
0,00 - 70,00 mm
Inner depth
68,00 mm
68,00 mm
For number of electric fittings
1
1
Mounting switching equipment
Screwing
Screwing
With screws
No
No
Housing feed-through by break-out opening
Yes
Yes
Housing feed-through by seal membrane
No
No
Housing feed-through by nozzle
No
No
Housing feed-through by step membrane
No
No
For tube diameter
20/25 mm
20/25 mm
Suitable for cable diameter
0 - 32 mm
0 - 32 mm
Pipe locking
No
No
Pipe locking optional
No
No
Inlet from the rear
Yes
Yes
Number of inlets
14
14
Number of included spouts
0
0
Material
Plastic
Plastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Colour
Blue
Blue
Degree of protection (IP)
IP20
IP20
Cover model
None
None
Transparent cover
No
No
Cover attachment
Screwed
Screwed
Sealable
No
No
With screening
No
No
Air tight
No
No
Max. conductor cross section
0
0
Number of poles of the clamp
0
0
Clamp position fixed
No
No
Luminaire hook mounting
No
No
Nozzle
None
None
Special application
None
None
最小订单数量: 25 NR
条形码
8007352082984
1 NR
22x12.7x7 [cm]
163.37 [g]
8007352115514
25 NR
59x38.5x30 [cm]
4,910.67 [g]
