Table mounting box 3M grey - 16803

Pdf
Vimar - 16803 - Table mounting box 3M grey
Vimar - 16803 - Table mounting box 3M grey

16803
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

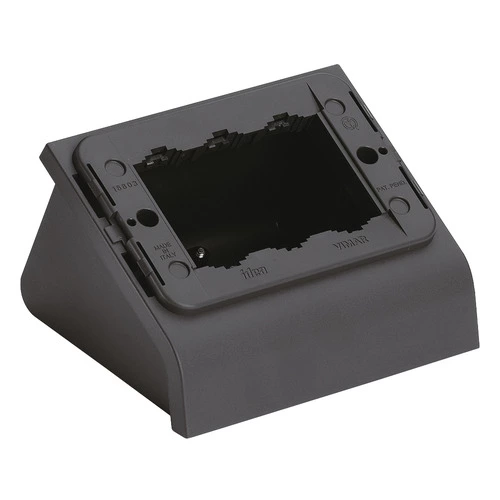

Table mounting box 3M grey
3-module table mounting box with cord-grip, for 3-module installation, grey. Suitable only for Classica cover plate

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
3
Number of units
3
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
122,80 mm
Device height
71,20 mm
Device depth
77,40 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

最小订单数量: 2 NR

条形码

Barcode Qty 1 NR
8007352026056
1 NR
12.3x11x7.8 [cm]
198.93 [g]
Barcode Qty 2 NR
8007352026063
2 NR
19x14.3x9.5 [cm]
476.73 [g]
Barcode Qty 20 NR
8007352470347
20 NR
38.5x29.5x25 [cm]
5,227.4 [g]
