Rondò plate 6M metal metall. bronze - 16756.22

Pdf
Vimar - 16756.22 - Rondò plate 6M metal metall. bronze
Vimar - 16756.22 - Rondò plate 6M metal metall. bronze

16756.22
Wiring devices / Traditional wiring devices / IDEA / Cover plates

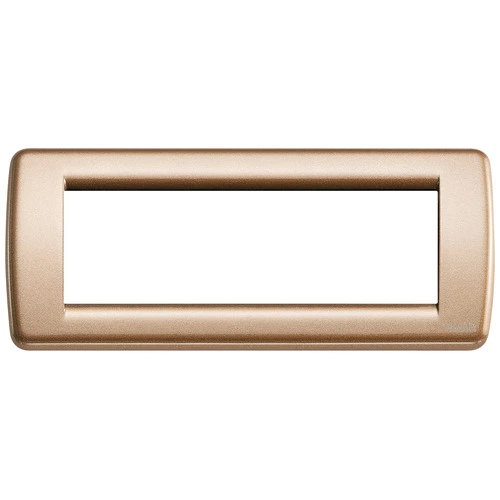

Rondò plate 6M metal metall. bronze
6-module Rondò cover plate, die-cast metal, metallized bronze

产品状态
2 - Will be discontinued

您可能也感兴趣

16716
16716 - Frame 6M +screws

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
198,00 mm
Height
82,00 mm
Depth
9,00 mm
Built-in width
198,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352093034
1 NR
20.7x8.5x1.1 [cm]
176.67 [g]
Barcode Qty 5 NR
8007352093041
5 NR
21.4x6.6x9.3 [cm]
938.93 [g]
