2P+E 16A P17/11 outlet+C16 RCBO grey - 16283

Pdf
Vimar - 16283 - 2P+E 16A P17/11 outlet+C16 RCBO grey
Vimar - 16283 - 2P+E 16A P17/11 outlet+C16 RCBO grey

16283
Wiring devices / Traditional wiring devices / IDEA / Devices

2P+E 16A P17/11 outlet+C16 RCBO grey
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11 interlocked with 1P+N C 16 residual current breaker with overcurrent protection , suppply voltage 230 V~ 50 Hz, IΔn 10 mA, breaking capacity 3000 A, grey - 3 modules

产品状态
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
Yes
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 50,01 HZ
Rated fault current
10 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other

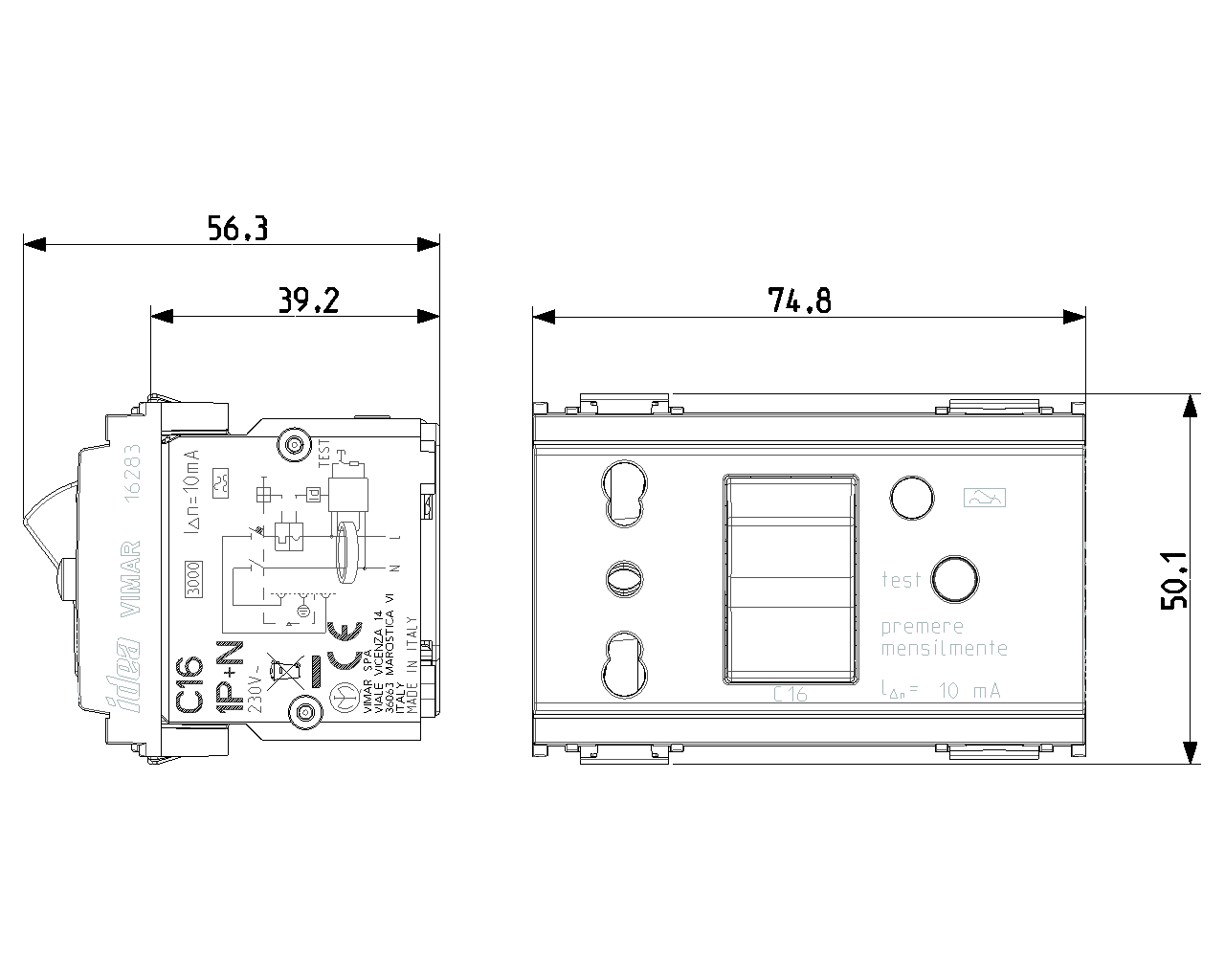

Device width
74,80 mm
Device height
50,10 mm
Device depth
57,30 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352113176
1 NR
5.2x5.7x7.6 [cm]
144.8 [g]
Barcode Qty 5 NR
8007352113183
5 NR
21.4x11.6x6 [cm]
777.6 [g]
