Frame 2M for panel mounting

Pdf

14627
Wiring devices / Traditional wiring devices / PLANA / Mounting frames

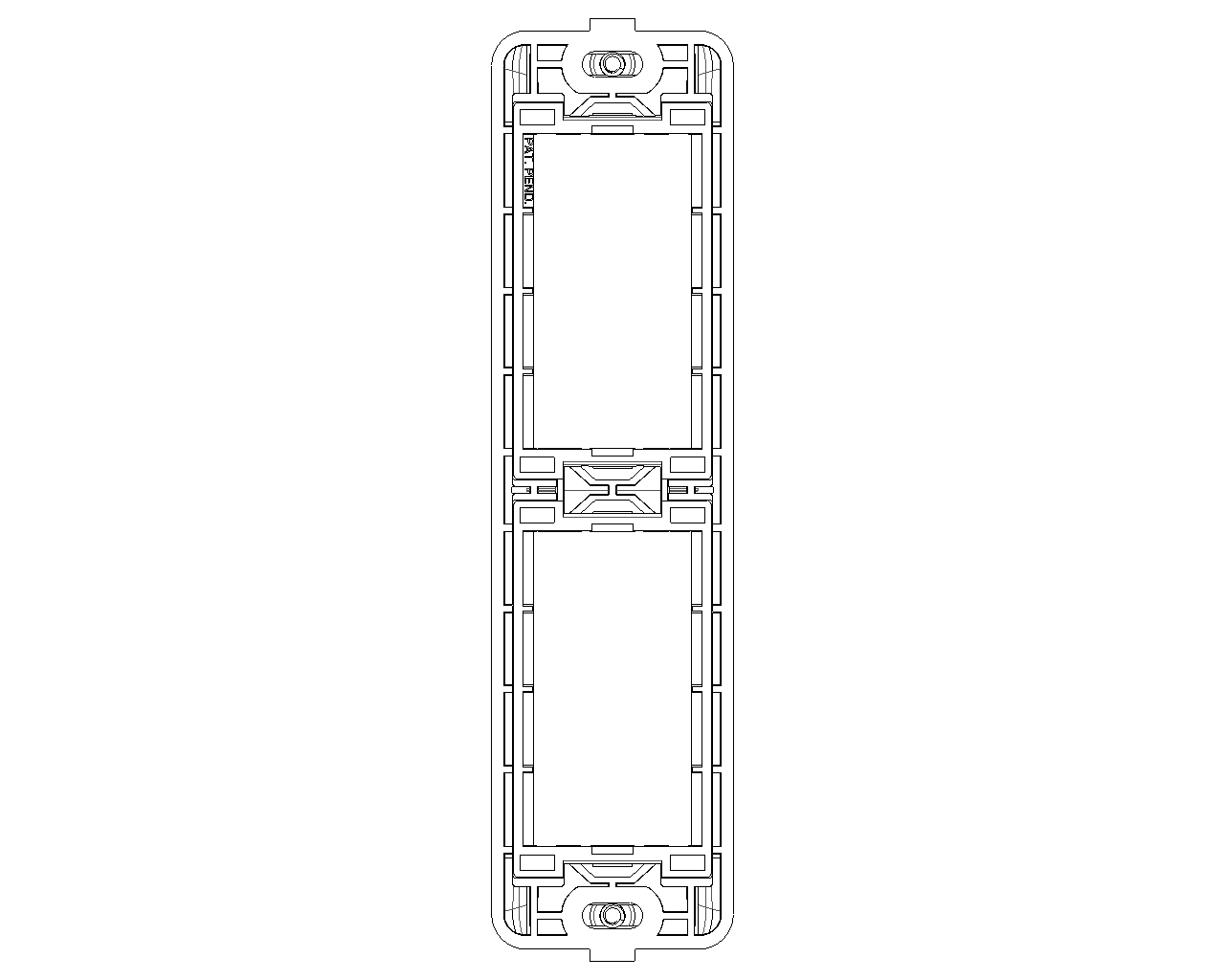

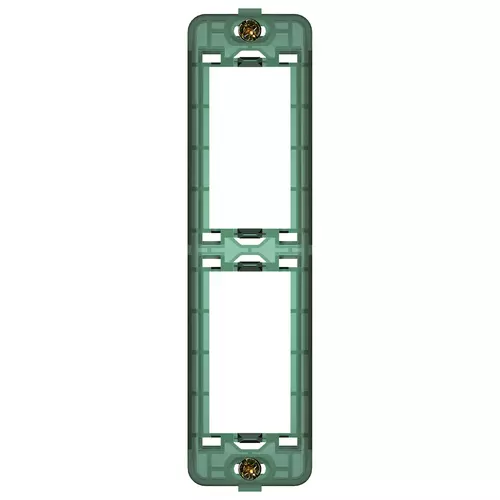

Frame 2M for panel mounting
2-module mounting frame, with screws, for panel mounting

产品状态
3 - Active

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

29. QCERT - Colombia

最小订单数量: 10 NR

8007352119031

1 NR

3x13x2 [cm]

16.8 [g]

8007352119048

10 NR

18.8x13.8x7 [cm]

228.8 [g]

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
