Vimar - 14387.R - Red prismatic indicator unit white

14387.R
Wiring devices / Traditional wiring devices / PLANA / Devices

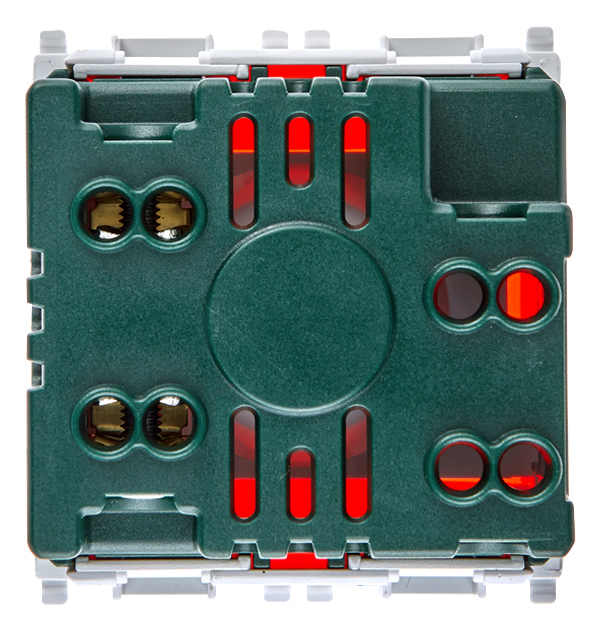

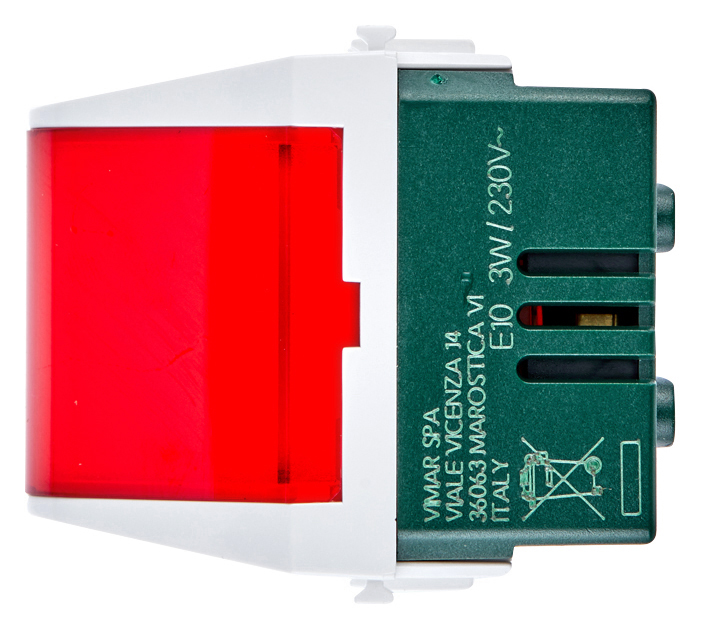

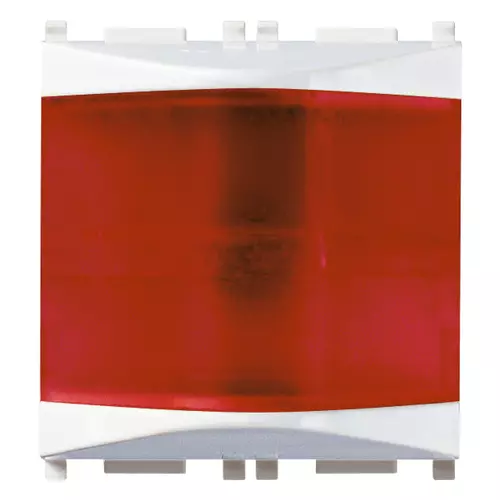

Red prismatic indicator unit white
Prismatic indicator unit, 230 V~ 3 W max, for 14770, 14771, 14776 and 14777 lamps, red diffuser, white - 2 modules. Provided without lamp

产品状态
3 - Active

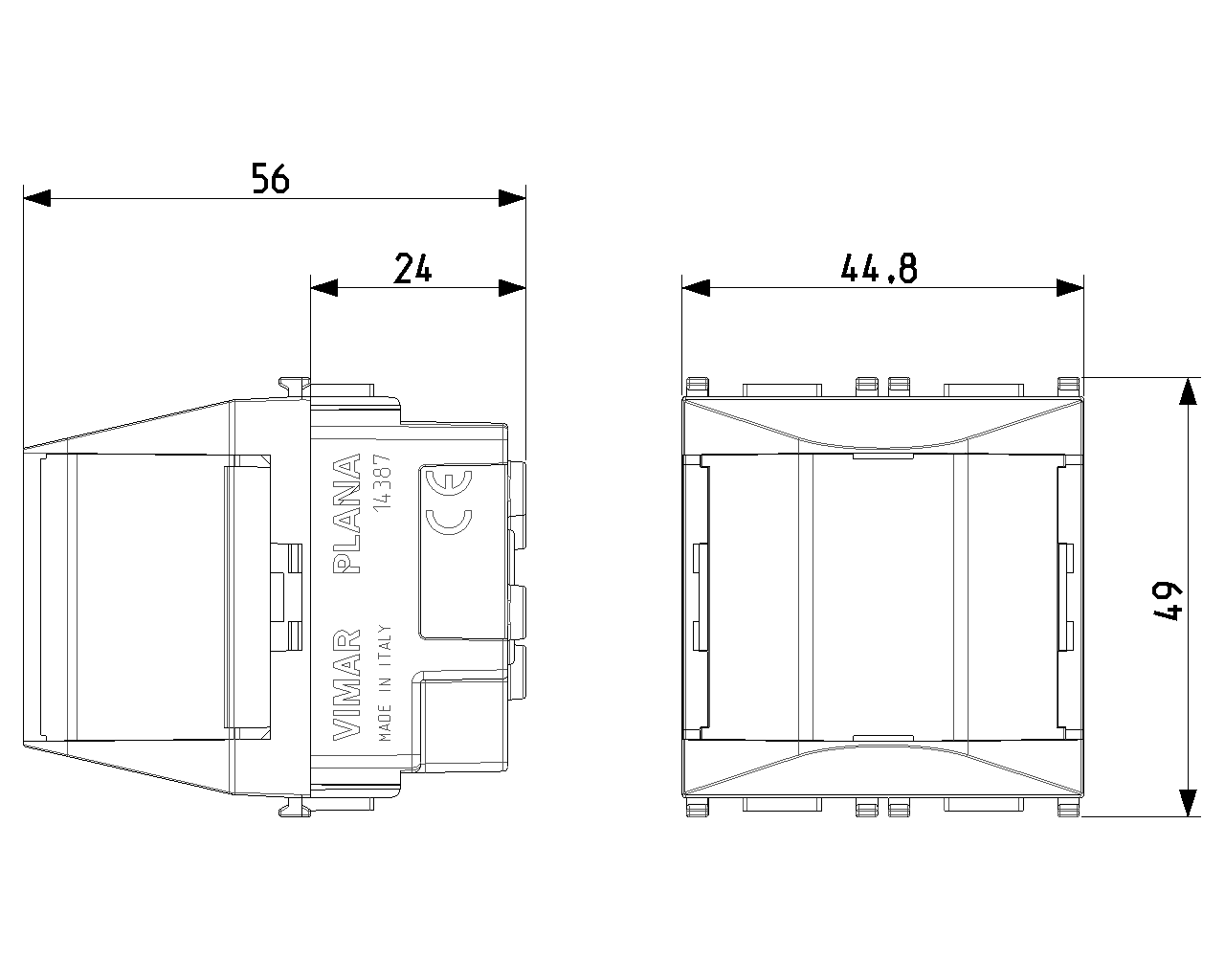

图纸

PNG DXF

Class group
Domestic switching devices

Class
Information light signal for domestic switching devices

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Lamp holder
E10

With light source
No

Lamp type
Incandescent lamp

With flashlight
No

With fixed symbol/imprint
No

With exchangeable symbol
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
3001

Transparent
No

Colour light source
Red

Suitable for degree of protection (IP)
IP40

Nominal voltage
230 V

Max. lamp power
3 W

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352122505

1 NR

6x5.4x5.3 [cm]

41 [g]

8007352122512

10 NR

28.1x13.1x6 [cm]

485 [g]

8007352634220

120 NR

38.5x28.5x29.5 [cm]

6,300 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
